5 Installation of generator
340-1560-12.65-45
2
1

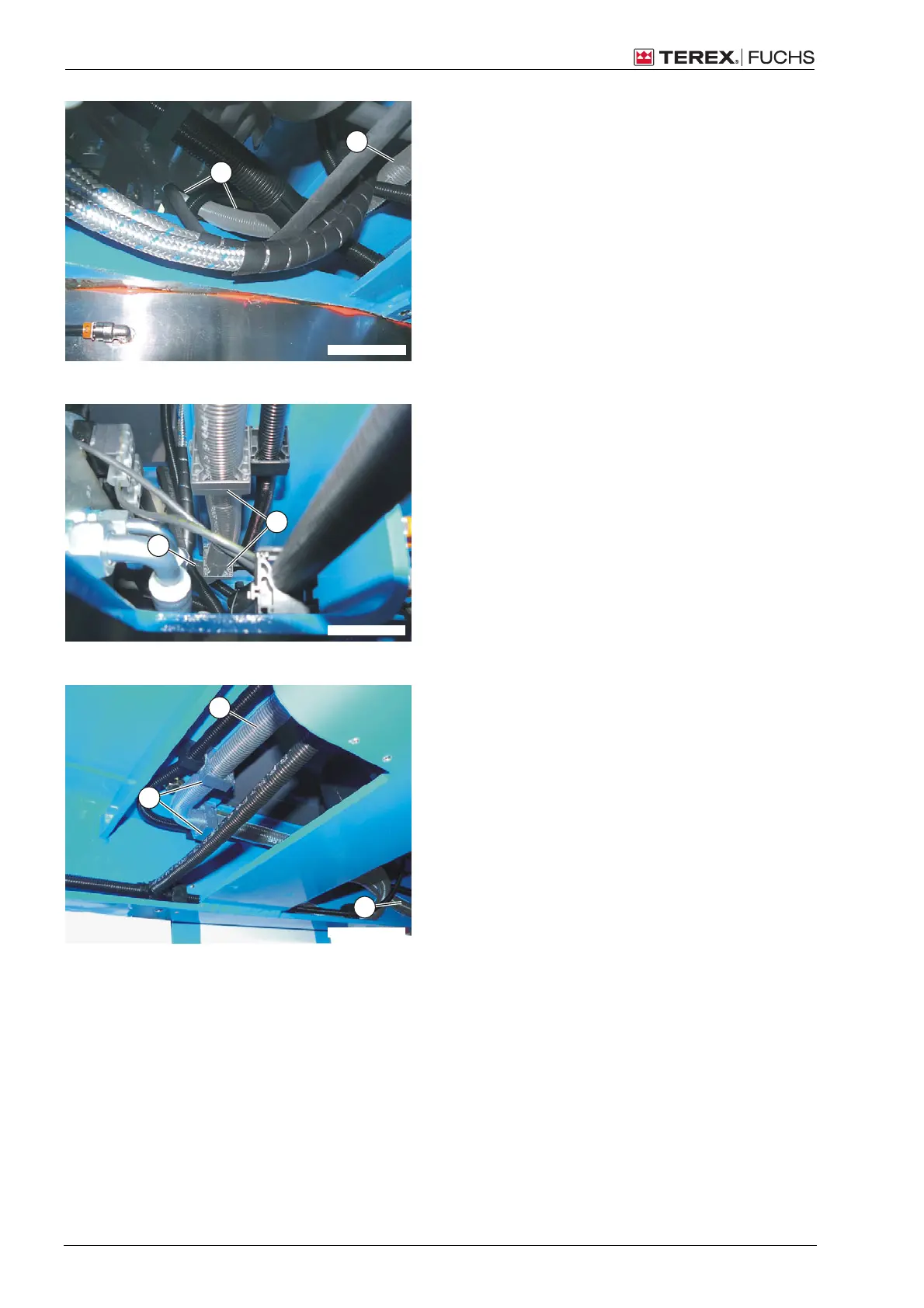

Magnet cable coming out of the access hole
 Guide the magnet cable coming out of the
access hole (1) along under the service
ladder (2).
340-1560-12.65-43
1
2
Magnet cable under the service ladder
 Guide the magnet cable (1) along under
the service ladder.
 Fasten in place with corrugated hose
holders (2) later.
340-1560-12.65-40
1
3
2
Magnet cable under the service ladder to the generator
 Guide the magnet cable (1) under the ser-
vice ladder and around the corner in the
direction of the generator (3).
 Fasten in place with corrugated hose
holders (2) later.
42 (60) Version 11.08.2008 12.65-SA10403-en-110808
