The APM-22 is a 22-inch touchscreen LCD monitor designed for commercial applications, including point-of-sales, point-of-information, point-of-service, and interactive signage. It features a stylish, thin cable management bracket and a versatile design, making it suitable for various business sectors.

Technical Specifications

LCD Touch Panel:

Size: 22" TFT LCD
Brightness: 250 cd/m² (Non-touch screen), 212 cd/m² (P-CAP)
Number of Pixels: 1920 (H) × 1080 (V)
Touch Type: P-CAP/ 10 points

Environment:

Compliance: IPX0
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 20% ~ 80% RH, non-condensing

Physical:

Mounting: VESA 100 mm x 100 mm
Dimension (W x H x D): 517.0 mm x 312.0 mm x 42.4 mm
Net Weight: 4.4 kg
Gross Weight: 6.3 kg

Interface Connectors

The APM-22 offers multiple interface options for connectivity:

Power Connector:

The AC/DC converter uses an IEC320 type male power receptacle.
The power cord, supplied in an appropriate Option Kit, is 1.8 ± 0.05 meters long and PC99 compliant.
The product is intended to be supplied by a Listed Power Adapter or DC power source, rated 12Vdc, 2.0A minimum, with a Tma of 40 degrees C minimum, and an altitude of operation of 3048m minimum.

Video Signal Connector (D-type 15-pin female connector - VGA):

Pin 1: Red video signal input
Pin 2: Green video signal input
Pin 3: Blue video signal input
Pin 4: NC
Pin 5: DDC ground for VESA DDC2B function
Pin 6: Analog signal ground for red video
Pin 7: Analog signal ground for Green video
Pin 8: Analog signal ground for blue video
Pin 9: +5V: Input from host system for VESA DDC2B function
Pin 10: Signal ground
Pin 11: NC
Pin 12: SDA signal input for VESA DDC2B function
Pin 13: Horizontal signal input from host system
Pin 14: Vertical signal input from host system
Pin 15: SCL signal input for VESA DDC2B function

DisplayPort (1.1a):

Includes pins for ML_Lane Data (0-3), Signal ground, AUX_CH (p/n) for Auxiliary Channel, Hot Plug, DP PWR Return, and DP PWR.

HDMI (1.3a):

Includes pins for TMDS Data (2+, Shield, 2-, 1+, Shield, 1-, 0+, Shield, 0-), TMDS Clock (Shield, - , +), CEC, Reserved (N.C. on device), SCL, SDA, DDC/CEC Ground, +5V Power, and Hot Plug Detect.

Usage Features

Mounting Options:

VESA Mount: Conforms to the VESA Flat Display Mounting Interface Standard (100 mm x 100 mm). Requires four M4 screws with proper length (distance between back cover surface and screw hole bottom is 8 mm and 18 mm). The mounting stand must support at least 7.67 lbs (3.48 Kg).
Wall Mount: Supports mounting to wooden or concrete walls using 16 screws and four bracket sets.
- Landscape: Side brackets can be attached to the left/right or top/bottom sides.
- Portrait: Side brackets can be attached to the left/right or top/bottom sides.
- Face Up: Brackets are installed on the customer's cabinet, and the APM-22 is then assembled into the cabinet with screws.
- Warning: This apparatus is intended to be supported by a Listed Wall Mount Bracket or the equivalent.

On-Screen Display (OSD): The monitor features an OSD key pad for adjustments.

Menu Key: Pops up the OSD menu, returns to the main menu, or exits the OSD.
Up/Down Keys: Selects main items, adjusts values (Brightness, Contrast), or moves OSD menu position.
Enter Key: Chooses adjustment items, selects sub-item functions.
Power Key: Turns the monitor On/Off.

OSD Functions:

Contrast: Adjusts monitor luminance level (Default: 50).
Brightness: Adjusts monitor backlight level (Default: 100).
Auto Adjust: Fine-tunes the image to full screen automatically.
Left/Right: Moves screen image horizontal position.
Up/Down: Moves screen image vertical position.
Horizontal size: Adjusts screen image horizontal dot clock.
Fine: Adjusts screen image pixel phase.
OSD Left/Right: Moves OSD menu horizontal position (Default: 50).
OSD Up/Down: Moves OSD menu vertical position (Default: 50).
OSD Time out: Sets OSD auto-disappear time (Default: 15 seconds).
OSD Language: Selects OSD menu language (English, French, Japanese, Deutsch, Spanish, Italian, Traditional Chinese, Simplified Chinese) (Default: English).
Factory Reset: Restores factory default values.
RGB: Selects color temperature (9300K, 6500K, 5500K, 7500K, User) (Default: USER).

OSD Lock/Unlock Function:

To Lock:
1. Turn on the monitor with a valid signal.
2. Press the "Menu" key to open the OSD menu.
3. Press and hold the "Menu" key again until the OSD menu disappears.
4. While still holding "Menu", press the "Power" key once. The "Lock/Unlock" menu will appear for 3 seconds.
5. Use the "Enter" key to select "OSD" or "Power" setting, then use "Up" or "Down" to set to "Lock".
6. Release "Up" or "Down" to save the setting and exit.
To Unlock:
1. Turn on the monitor with a valid signal.
2. Press and hold the "Menu" key.
3. Press the "Power" key simultaneously. The "Lock/Unlock" menu will appear for 3 seconds.
4. Use the "Enter" key to select "OSD" or "Power" setting, then use "Up" or "Down" to set to "Unlock".
5. Release "Up" or "Down" to save the setting and exit.
Note: When OSD Lock is active, all buttons except "power" are disabled. When Power Lock is active, the power key is disabled.

EDID Data:

DP/HDMI: Provides a display communications channel conforming to VESA DDC2B hardware requirements, containing a 256-byte EDID file as specified by VESA EDID Standard.
VGA: Provides a display communications channel conforming to VESA DDC2B hardware requirements, containing a 128-byte EDID file as specified by VESA EDID Standard.

Maintenance Features

Precautions:

Do:
- Turn off the product before cleaning.
- Use a soft cloth moistened with mild detergent to clean the product housing.
- Use only the qualified power adapter provided with the device.
- Disconnect the power plug from the AC outlet if the product will not be used for an extended period.
Don't:
- Do not use abrasive cleaners, waxes, or solvents for cleaning.
- Do not operate the product in extremely hot, cold, or humid environments.
- Avoid areas susceptible to excessive dust and dirt.
- Do not place near any appliance generating a strong magnetic field.

Warnings:

To prevent the risk of fire or shock hazards, do not expose the product to moisture.
Do not open or disassemble the product, as this may cause electric shock.

Package Overview

The APM-22 package typically includes:

LCD Display
Power Cord
DC Power Supply
OSD Keypad
DP cable
VGA cable

Compliance and Environmental Information

FCC/IC Statement:

The device complies with Part 15 of the FCC Rules and Canadian ICES-003/NMB-003 regulation.
Operation is subject to two conditions: (1) The device may not cause harmful interference, and (2) The device must accept any interference received, including interference that may cause undesired operation.
Warning: This device generates, uses, and can radiate radio frequency energy. If not installed and used according to the manual, it may cause harmful interference to radio communications. Operation in a residential area may require the user to correct interference at their own expense.

Restricted Substances Marking (Declaration of Presence Condition): The APM-22 complies with restricted substance regulations. The table indicates the presence condition of lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) in various components:

Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr⁶⁺)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
Plastic Parts	Ο	Ο	Ο	Ο	Ο	Ο
Metal Parts	Ο	Ο	Ο	Ο	Ο	Ο
Cable component	-	Ο	Ο	Ο	Ο	Ο
LCD Panel	-	Ο	Ο	Ο	Ο	Ο
Touch Panel	-	Ο	Ο	Ο	Ο	Ο
PCBA	-	Ο	Ο	Ο	Ο	Ο
Software	Ο	Ο	Ο	Ο	Ο	Ο

Note 1: "Exceeding 0.1 wt%" and "exceeding 0.01 wt%" indicate the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
Note 2: "Ο" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3: The "-" indicates that the restricted substance corresponds to an exemption.

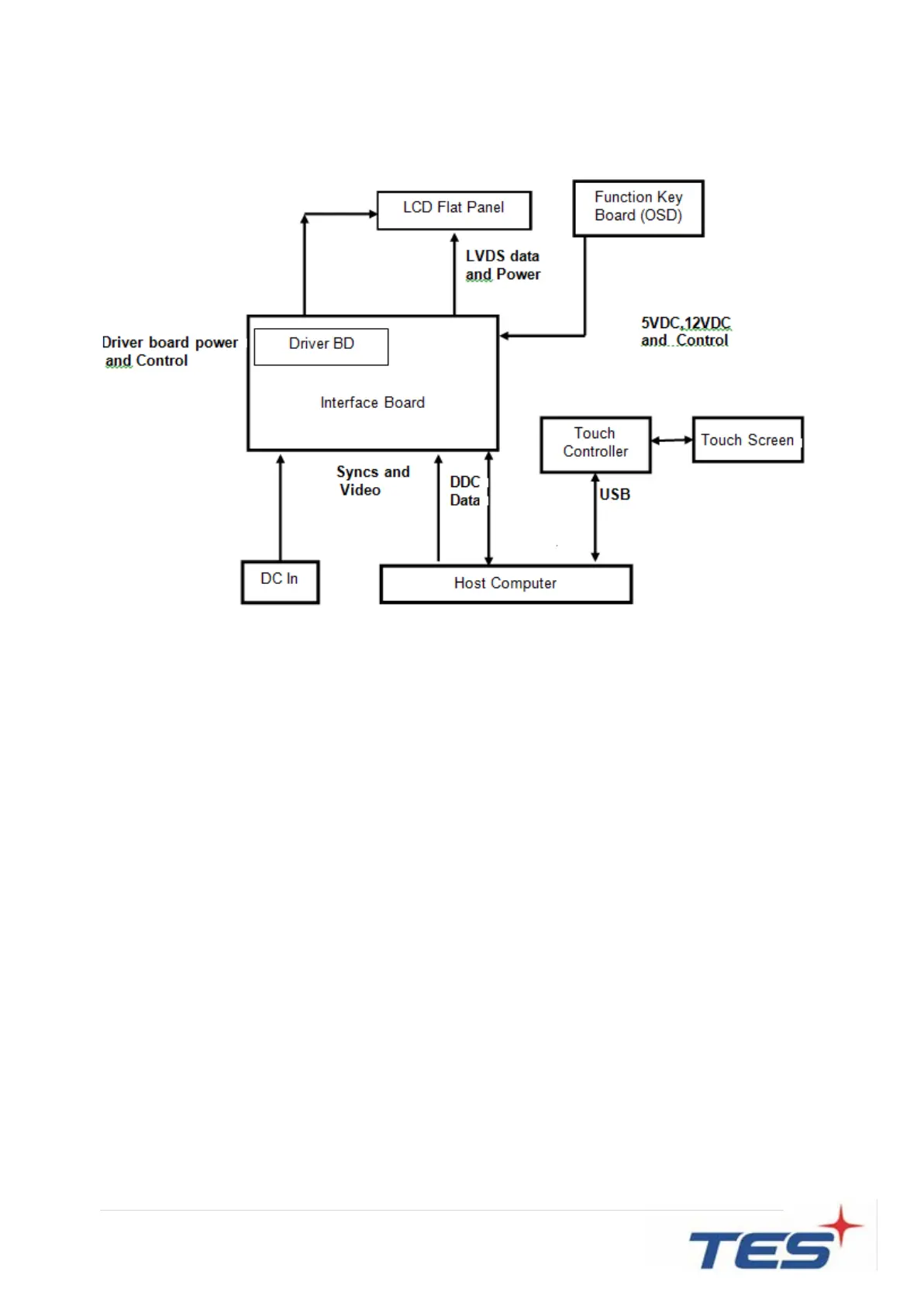

TES APM-22 - 1.4 Block Diagram
