BRINGING UP THE LOWER THREAD

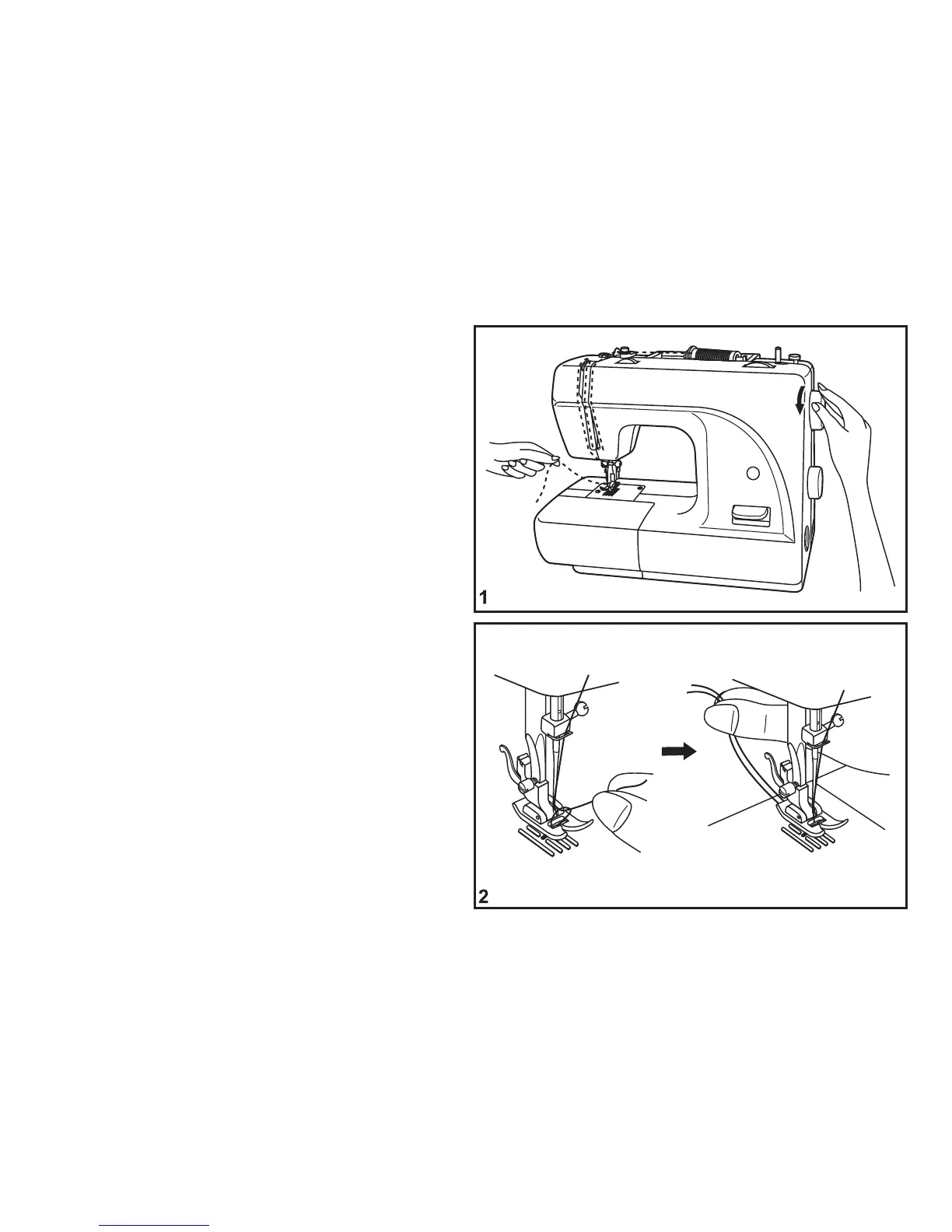

Refer to Figure 1
Hold the upper thread LOOSELY with the left hand.
Turn the handwheel forwards to lower and then fully raise the needle.
Refer to Figure 2
The upper thread will catch and raise the lower thread.
Pull on the upper thread to bring the lower thread up through the stitch plate hole.
Lay both threads to the back under the presser foot. (2)
Page 14
