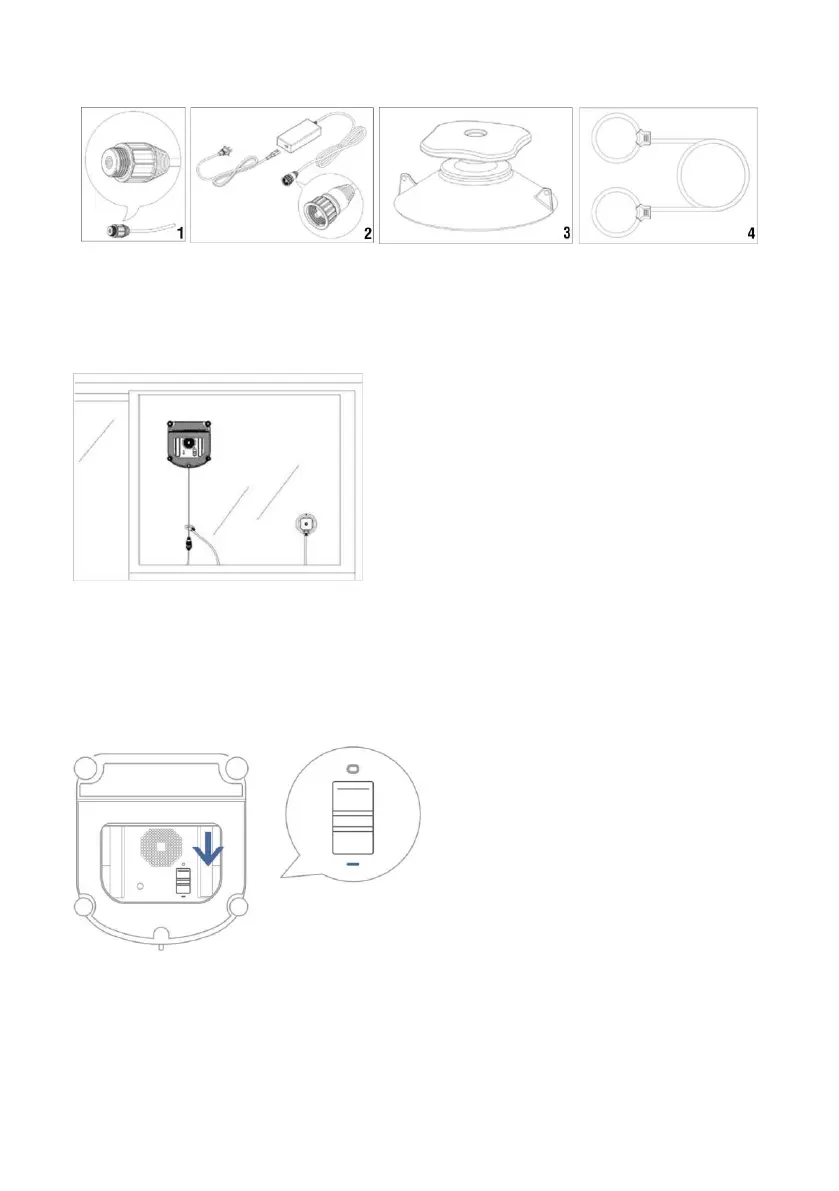

4. Install the security cable
Insert the power cable (1) through the safety cable loop (4) and tighten. Then connect the power
adapter (2) to the machine's power cord. Then insert the second loop of the safety cable through the
safety suction cup (3) and tighten. Make sure that the length of the cable or cable does not restrict
the movement of the device on the window. If so, please connect the included extension cable.
Use the suction cup (3) and attach it to the
inside of the window. Make sure it works in
the event of a device fall.
START
Connect the machine to the mains. Please do not disconnect it from the power supply during
cleaning.
Push the „Switching suction On/Off (14)“
down ( - ) and the LED will flash blue.
Place the device on the glass in the center of
the window, but at least 10 cm from the
window frame. Press on the device „Control
button START/PAUSE/STOP (2)“.
The device is sucked succesfully to the window surface if the LED turns steady blue, only now is it
safe to drop the device.
