§4 Structure of components
6
4-8 Pneumatic regulator

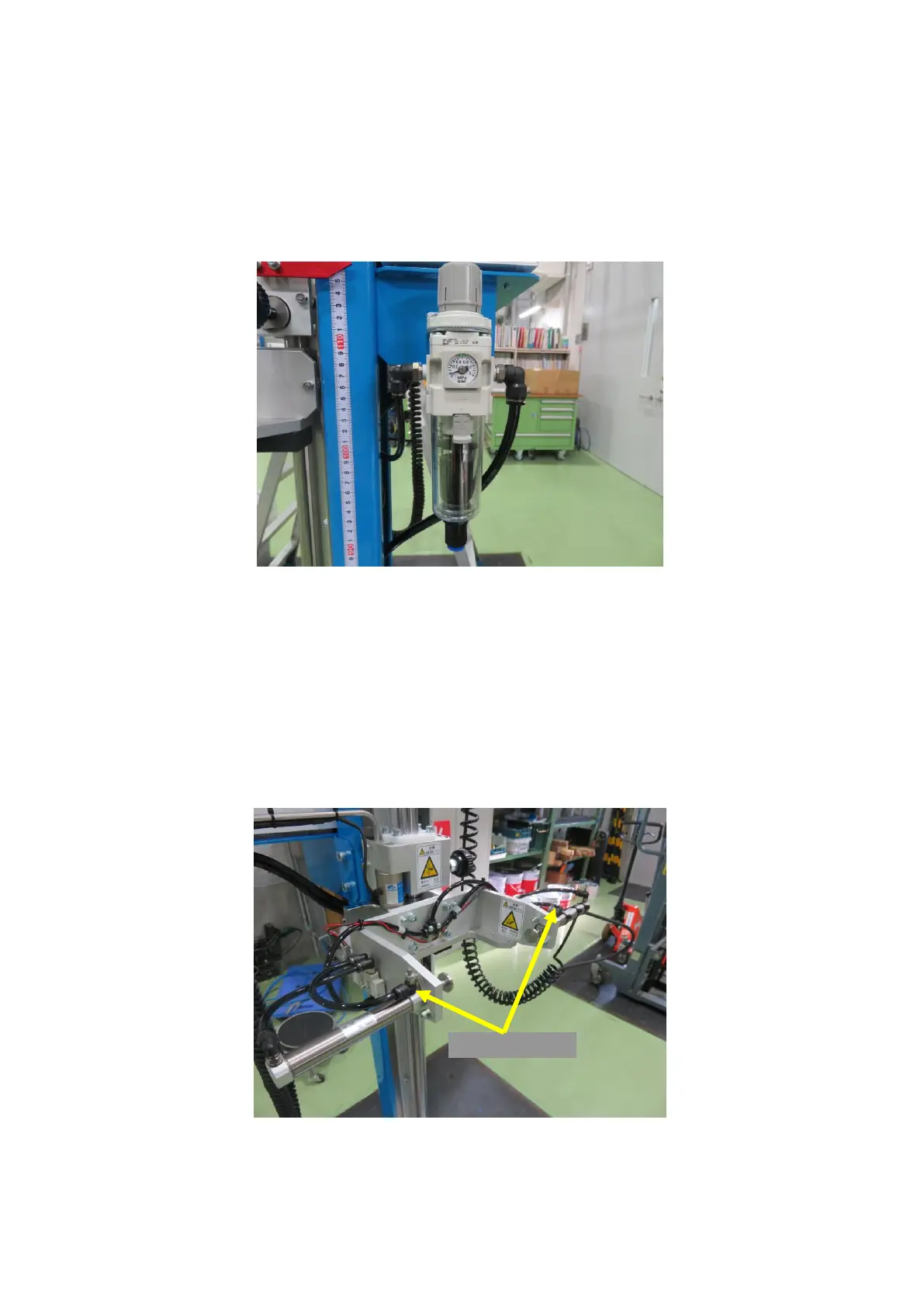

1) Filter regulator for pneumatic pen cylinders
This filter regulator is mounted on the lower side of the control unit to regulate the operating
pressure of the pneumatic cylinders for fixing and releasing a specimen. Please set it over 0.49MPa
at least.
Fig. 4
2) SET adjusting speed controller
This speed controller is mounted on the pneumatic pen cylinders.
This airflow regulator for pneumatic pen cylinders can adjust the airflow to an optional speed.
The airflow becomes slow when turning this controller clockwise and it becomes fast when turning
this controller counterclockwise.
Fig. 5
