6.1.1. Setting options
N For status displays see Status displays (page 33).

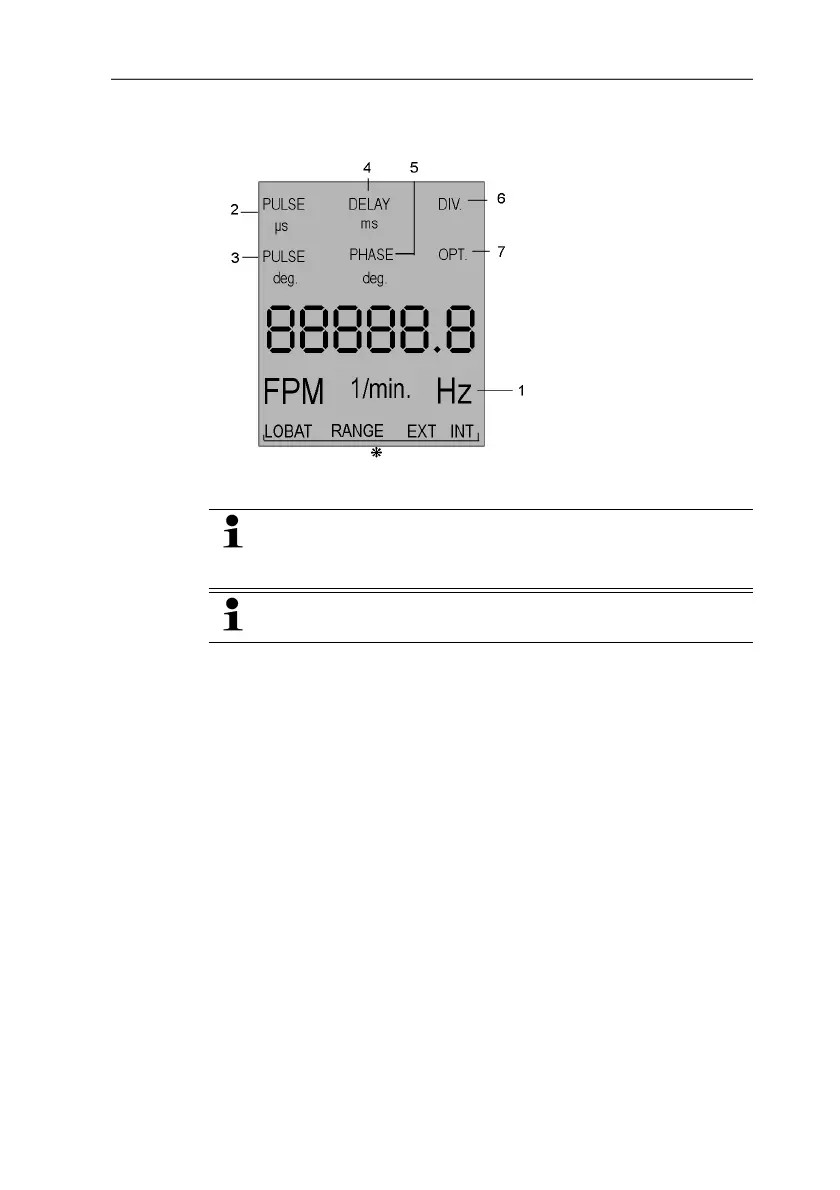

All setting options in the display are shown in the image.
The numbering corresponds to the sequence in which they
succeed one another by pressing the [M] button.
A parameter set differently than the factory setting flashes
during operation.
1 Hz: Frequency of the movement per second (flashes per
second).
2 PULS μs: On-time of the flash (in microseconds).
3 PULS deg: On-time of the flash (in degrees).
4 DELAY ms: Setting of the delay time (in milliseconds) between
the internal or external trigger signal and the flash.
5 PHASE deg: Setting of the phase shift (in degrees, relative to
frequency) between the internal or external trigger signal and
the flash.
6 DIV (only with external trigger signal): Pulse divider, max. value
255.
7 OPT (only with external trigger signal): Edge selection of the
trigger signal. With this option, the polarity of the trigger signal
can be defined.
• 0 = positive edge
• 1 = negative edge
