10.4 Installation
The additional Y-shaped cable (code 3904674) is needed for the installation.
Other specific interconnection cables can be provided upon request.
Position the device in a way it does not compromise or interfere with
driving, but also easy to reach in case of an emergency.

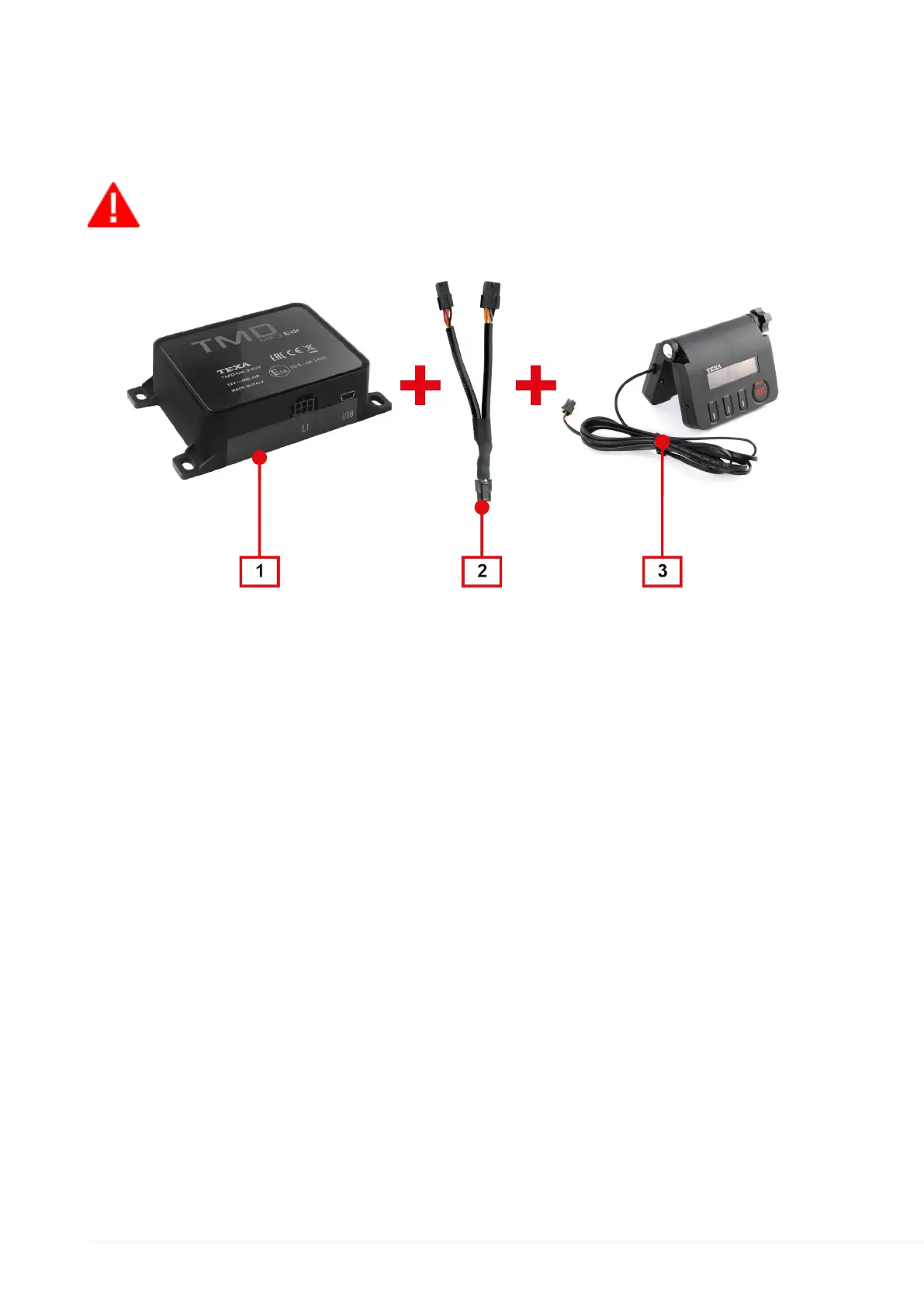

1.
TMD MK3 EDR
2.
Y-shaped cable
3.
TMD MK3 TEXA SHARE
Proceed as follows:
1.
Secure TMD MK3 TEXA SHARE in the most appropriate position*.
2.
Connect the TMD MK3 TEXA SHARE cable to the Y-shaped cable.
3.
Insert the connector of the Y-shaped cable into the L1 input of TMD MK3 EDR.
(*) See the specific installation sheet for the vehicle you are working on.
Attach the device to the windscreen using the specific adhesive / Velcro strips.
After securing the device, you can use the locking screw to adjust the inclination
of the front part so to optimise the view of the display and the accessibility of
the buttons.
