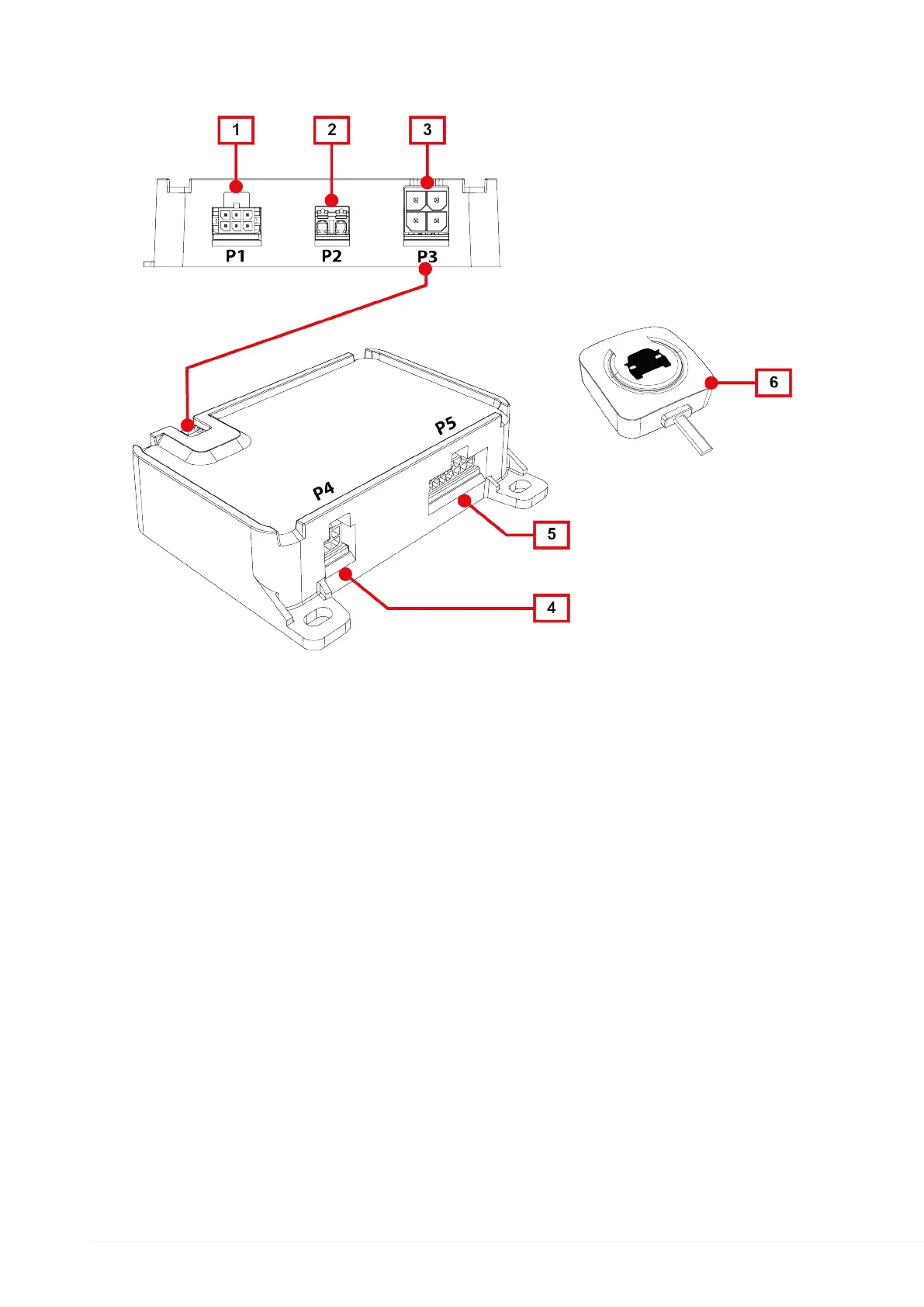

12.1 Description
1.
P1: 6-way connector to connect the door opening / closing control and TMD
BLINKER cable (code 3908243).
2.
P2: connector not used and not connected to the rest of the device.
3.
P3: 4-way connector to connect the actuator lock control (code 3908244).
4.
P4: 4-way connector for the TMD MK3 EDR connection wiring (code 3908285).
5.
P5: 14-way connector to connect the wiring for assistance operations.
6.
TMD BLINKER.
60
