C2000™ Piccolo™ F28004x Series LaunchPad™ Development Kit

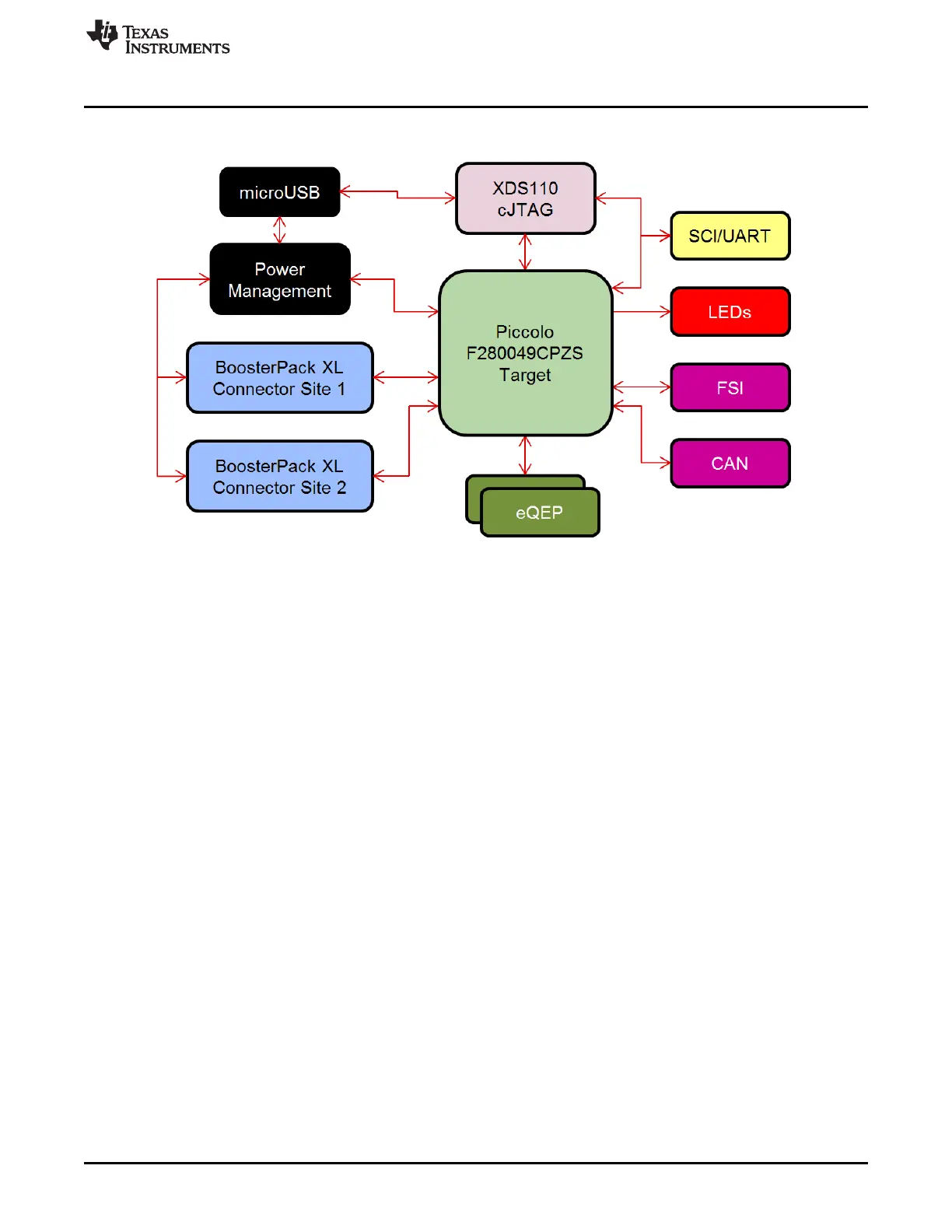

Figure 2 shows a high-level block diagram of the F28004x LaunchPad:
Figure 2. Piccolo F28004x LaunchPad Development Kit Block Diagram
2.1 Functional Description and Connections
2.1.1 Microcontroller
The F280049CPZS is a 32-bit floating-point microcontroller with 256KB Flash memory, 100KB RAM, and
operates at 100 MHz. It includes advanced control peripherals, differentiated analog, and various
communications peripherals. The devices has been optimized for high-performance applications and
provides a low-cost system solution. For more details, see the TMS320F28004x Piccolo Microcontrollers
Data Sheet.
Most of the microcontroller's signals are routed to 0.1 inch (2.54 mm) pitch headers laid out to comply with
the TI BoosterPack standards with a few exceptions. An internal multiplexer allows different peripheral
functions to be assigned to each of the General-Purpose Input/Output (GPIO) pads. The multiplexing
options can be found in the device-specific data sheet. When adding external circuitry, consider the
additional load on the development board power rails.
The F28004x LaunchPad is factory-programmed with a quick start demo program. The quick start
program resides in the on-chip Flash memory and executes each time power is applied, unless the
application has been replaced with a user program. The quick start application utilizes the integrated
Analog-to-Digital Converter (ADC) module to sample the voltage on a pin, then output the results with the
Serial Communications Interface (SCI) Universal Asynchronous Receiver/Transmitter (UART) through the
Virtual COM port (VCP) of the XDS110 debug probe to a PC with a serial monitor running.
