www.ti.com EV2400 Bill of Materials, Component Placement, Schematic
Count Reference Design Value Description Size Part Number Manufacturer
1 U8 TPS2113APW IC, Auto Switching SO8 TPS2113APW TI
Power Mux, Rds 84
milli Ohm, 1A.
2 U9, U14 ISL90842UIV1427Z IC, Quad Digitally TSSOP ISL90842UIV1427Z Intersil
Controlled
Potentiometers
1 Y1 4 MHz Crystal, SMT Quartz 0.484 x ATS040SM CTS
Crystal 0.190 inch
1 — PCB HPA500 Any
1 Plastic, Enclosure, 115574-501-000 PACTEC
Silkscreened, Two
Custom end panels,
screws
Notes: 1. These assemblies are ESD sensitive, ESD precautions shall be observed.
2. These assemblies must be clean and free from flux and all contaminants. Use of no clean flux is not acceptable.
3. These assemblies must comply with workmanship standards IPC-A-610 Class 2.
4. Ref designators marked with an asterisk ('**') cannot be substituted. All other components can be substituted with
equivalent manufacturers' components.

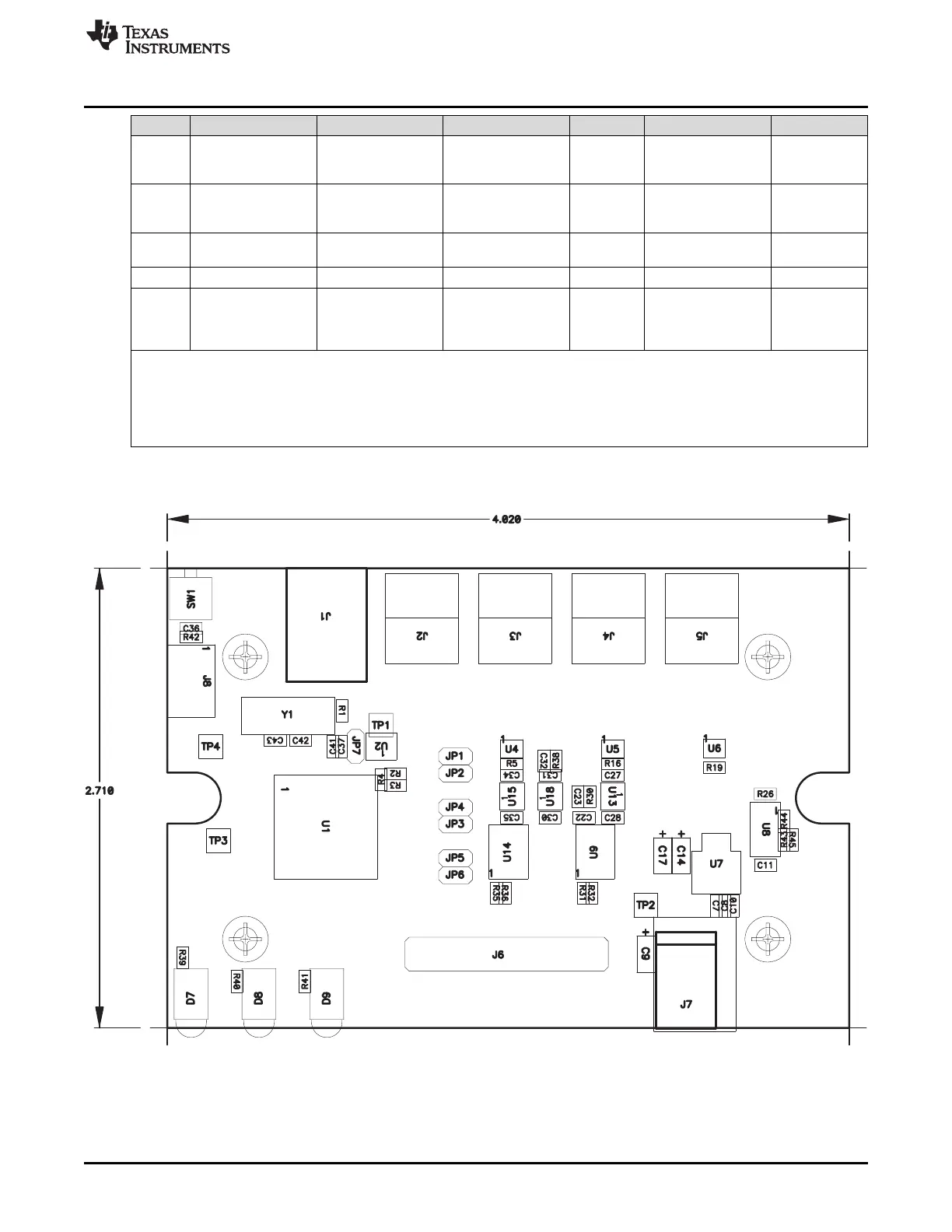

3.2 EV2400 Component Placement
Figure 2. Top Assembly
7
SLUU446B–June 2011–Revised August 2014 EV2400 EVM Interface Board
Submit Documentation Feedback
Copyright © 2011–2014, Texas Instruments Incorporated
