Carefully scratch off the soldermask from the trace leading to pin 12 on IC111. This will allow for more
space to solder a wire.

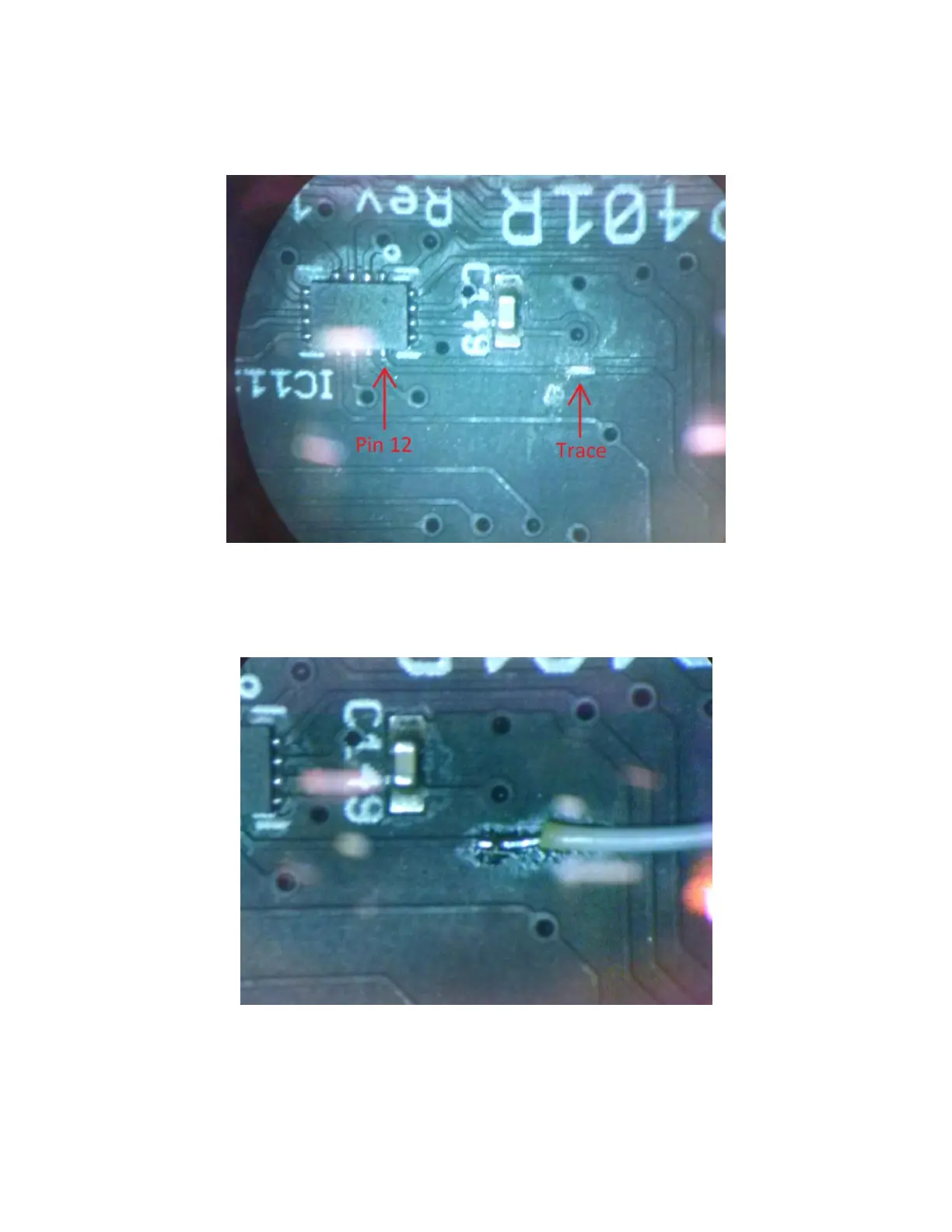

Figure 7: Close-up of IC111 and the Soldering Location for the "SWO" Signal
Solder a wire to the exposed copper of the trace and be careful to not strain the wire as it may damage
the board.
Figure 8: Wire Soldered to the "SWO" Signal
