Texas Instruments TI-92+

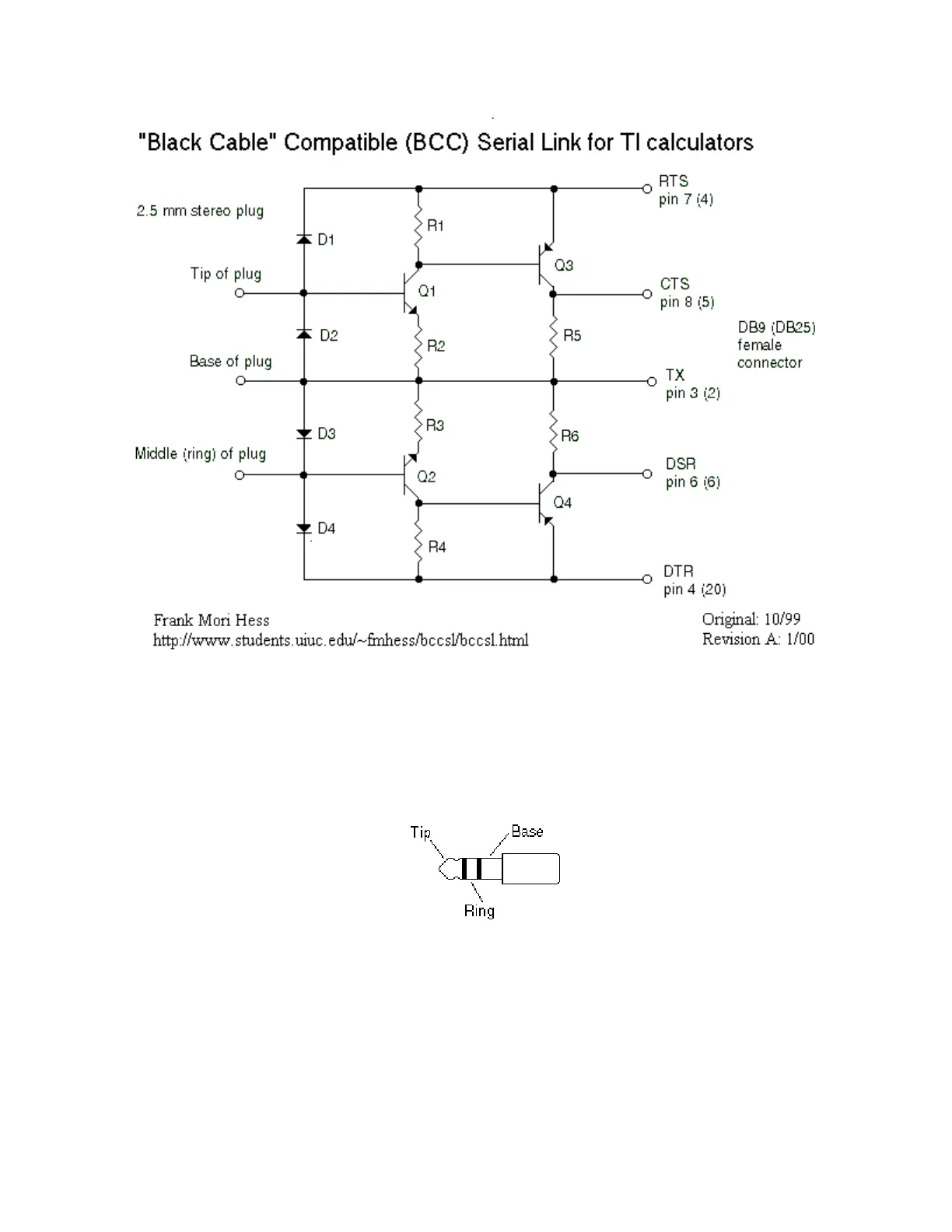

The schematic for the original cable is shown above. The connection to the computer may be either a
DB9 or a DB25 connector; the DB25 pin numbers are shown in parentheses. The GraphLink plug
which connects to the calculator is a 3-conductor (stereo) 2.5 mm connector. The three conductors are
named like this:
5 - 4
