4 PCB Layouts

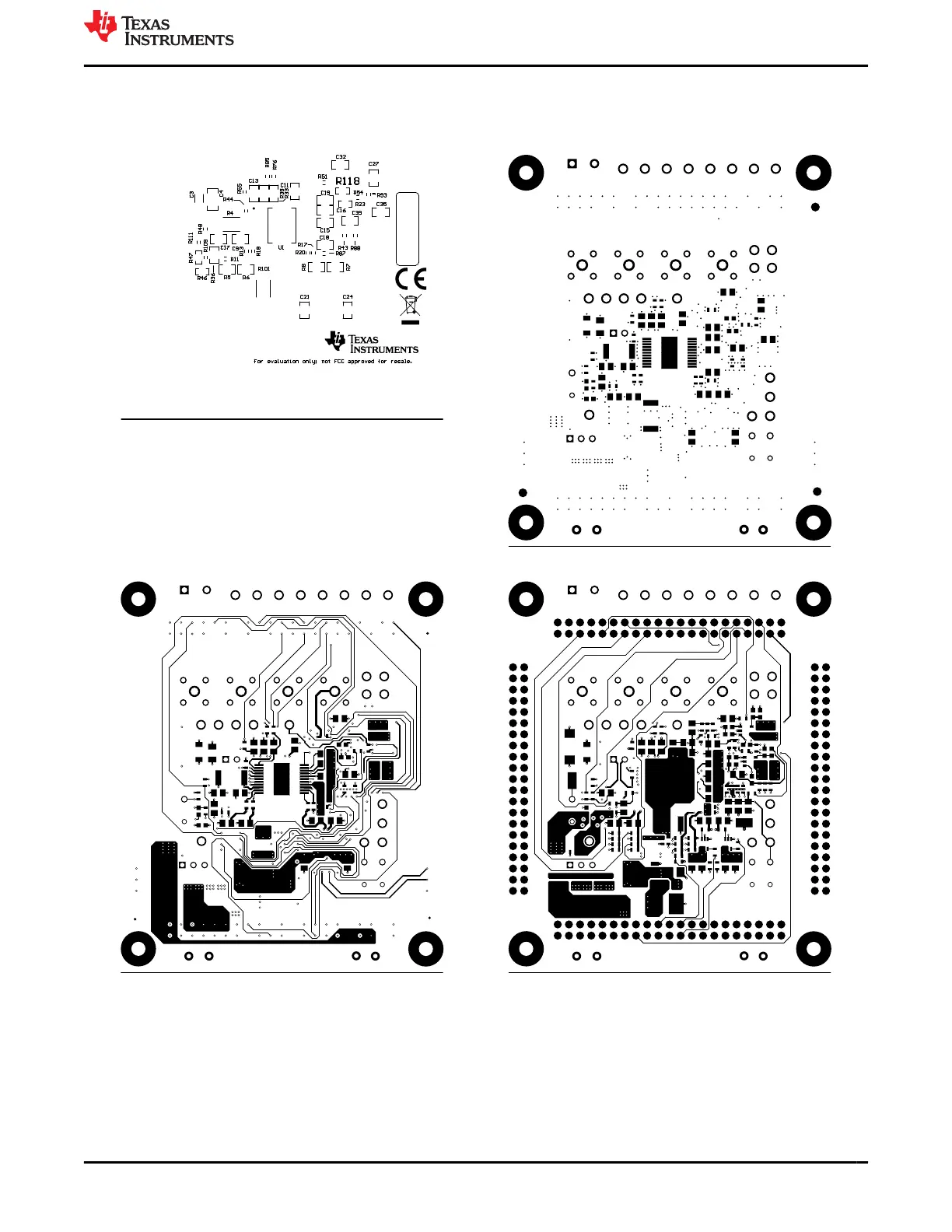

Top Overlay through Board Dimensions show the EVM PCB layout images.
Figure 4-1. Top Overlay
Figure 4-2. Top Solder
Figure 4-3. Top Layer Figure 4-4. Bottom Layer
