Texecom Veritas Excel Installation Manual

2 INS165
Installation
The Veritas Excel Remote Keypad (RKP) is only suitable for use with
the Texecom Veritas Excel Control Panel. Any combination of the
Veritas RKP & Veritas Excel keypad may be used, up to 6 in total,
with the Veritas Excel.
Mounting

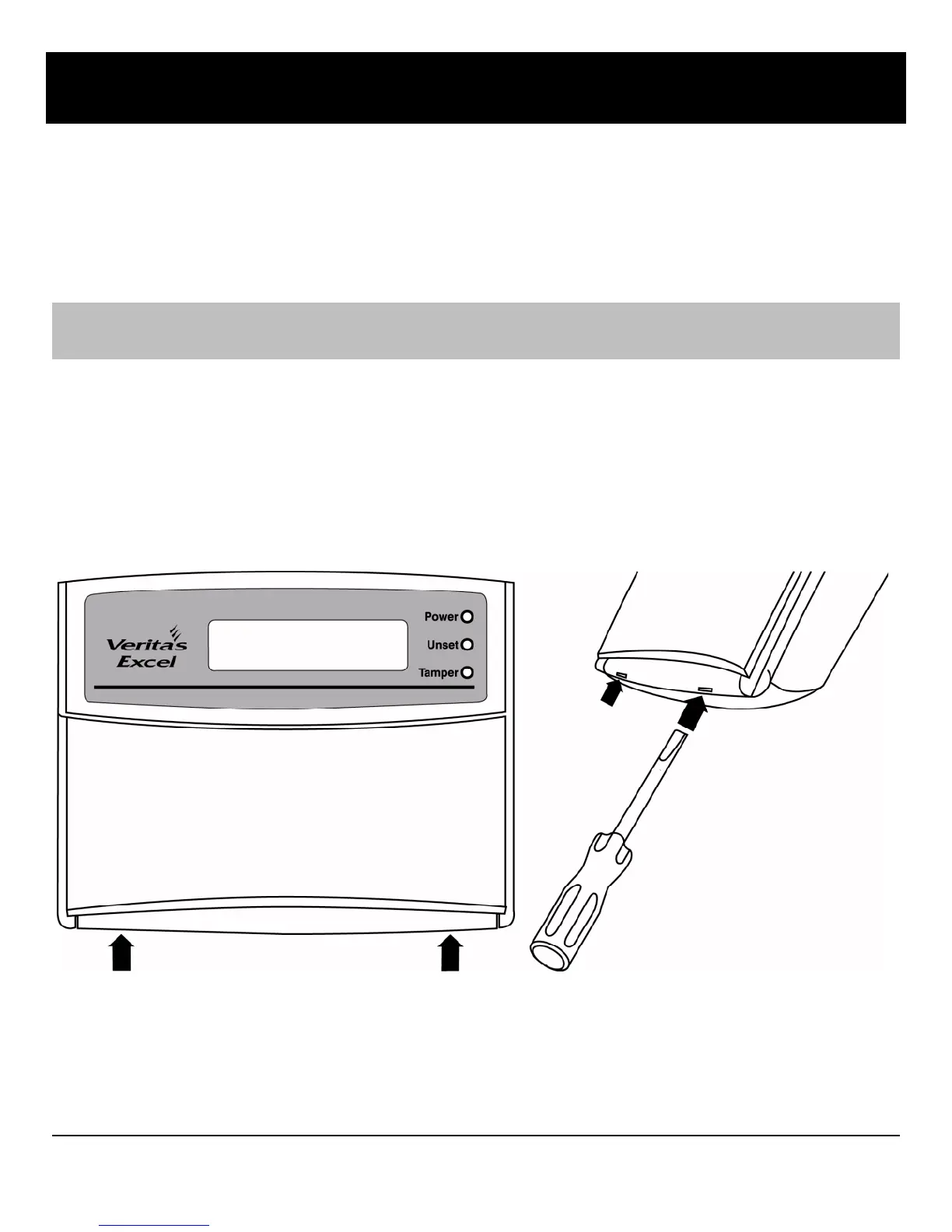

Open the keypad by carefully inserting a small flat-blade
screwdriver into each slot at the base of the unit. Gently push the
screwdriver to ease the retaining clips upward, DO NOT LEVER OR
TWIST. Excessive force is NOT required. The front flap and front
cover can now be removed.
Mount the keypad using at least two appropriate countersunk
screws (no larger than No. 8). A keyhole slot has been provided to
assist mounting and aid levelling.

Texecom Veritas Excel Specifications

General

Display	LED
Zones	8
Power Supply	12V DC
Arming Modes	Full, Part, Night
Tamper Protection	Yes
Weight	200g
Compatibility	Texecom Veritas control panels
Current Consumption	30mA
Operating Humidity	0% to 95% non-condensing
