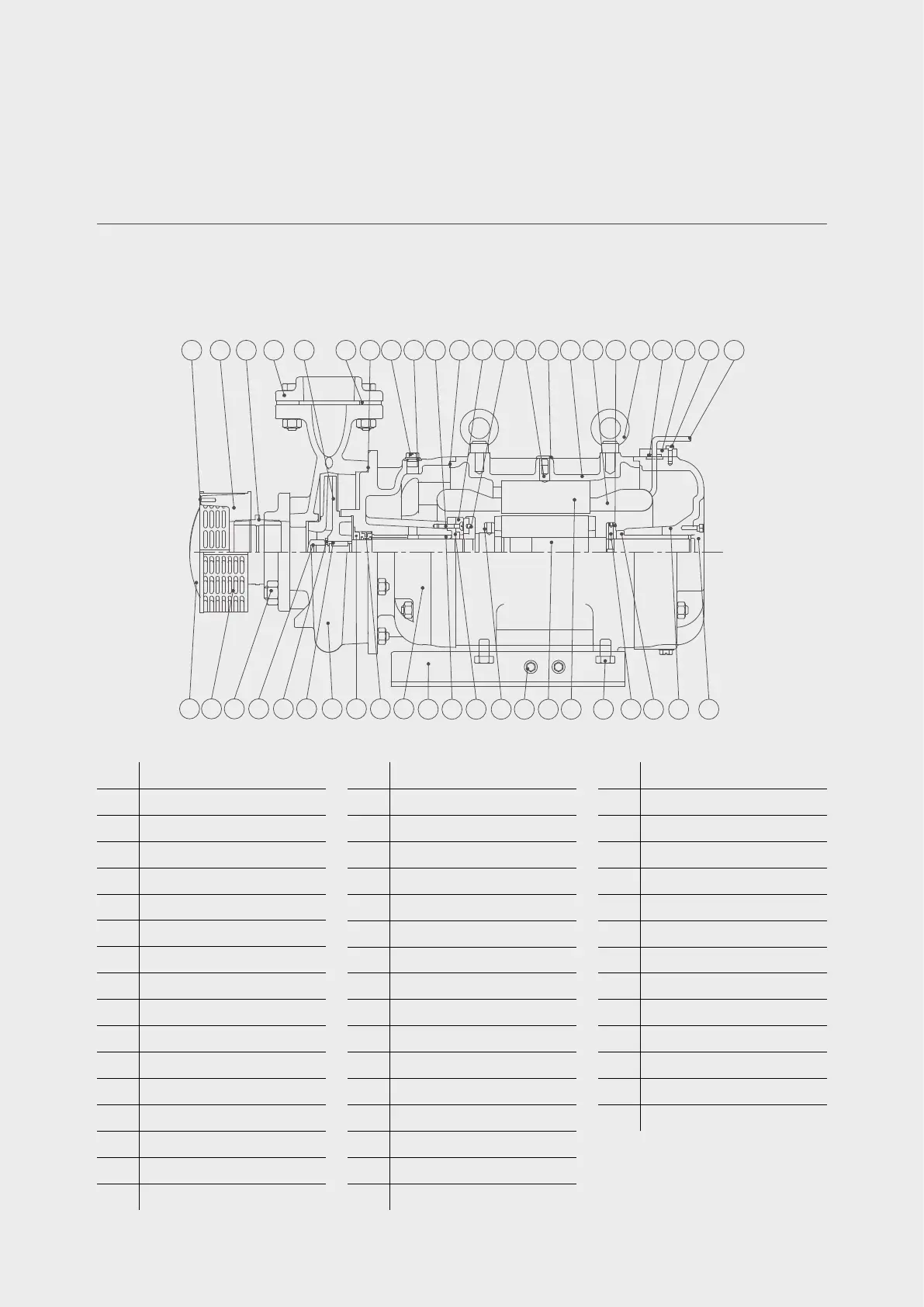

Cross-section view of TSM ZR / TSM ZRC Series Openwell Submersible Monoblock is shown below in Fig. 3:
Fig. 3 Cross-section view of openwell submersible monoblock TSM ZR / ZRC
No. PART NAME
1 Strainer Cap
2 Strainer
3 Stud & Nut
4 Hex. Dome Nut
5 Washer
6 Parallel Key
7 Casing
8 Sand Guard
9 Oil Seal
10 Front Cover
11 Base Plate
12 Bush
13 Thrust Pad Holder
14 Rotor Balancing Collar
15 Hex. Head Bolt & Washer
16 Rotor With Shaft
No. PART NAME
17 Stator Stack
18 Hex. Head Bolt
19 Hex. Socket Set Screw
20 Thrust Bush
21 Rear Cover
22 Rear Cap
23 PVC Insulated Cable
24 C.H Screw
25 Cable Gland
26 Cable Gland Bush
27 Eye Bolt
28 CT & BG Collar
29 Coil
30 Motor Body
31 Cap
32 Hex. Socket Set Screw
No. PART NAME
33 Thrust Collar
34 Thrust Pad
35 Gasket - Circular
36 Csk Head Hex.socket Screw
37 O-Ring
38 Drain Plug
39 Gasket - Circular
40 Gasket-Square
41 Impeller
42 Flange Square
43 Nipple
44 Strainer Bracket
45 CSK Screw
2
3
1 4
5 6 7 8 9 10
11 12
13
14
15 16
17
18 19 20
21 22
24
25 2326
27
28293031323334353637383940
4142
43
44
45
