Procedure for joining and insulating
the 3 core conductors:
Procedure for joining and insulating
the cable joint for under-water cable:

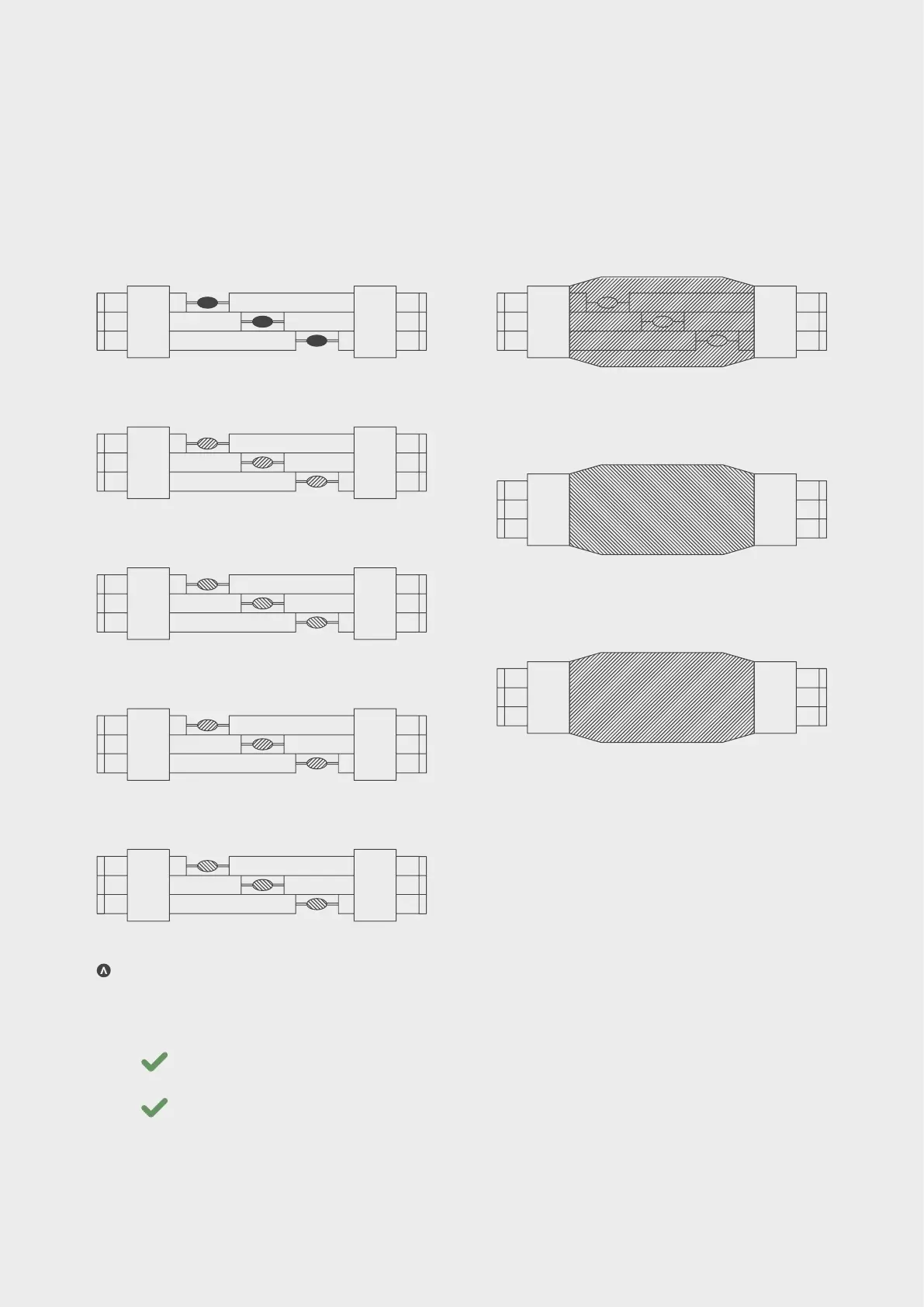

Step 1: Soldering / knot the copper strands Step 6: Layer 1 - 1st layer of virgin rubber insulation
Step 7: Layer 2 - 1st layer of PVC Insulation tape
Step 8: Layer 3 - 2nd layer of PVC Insulation tape
Step 2: Layer 1 - 1st layer of virgin rubber insulation
Step 3: Layer 2 - 1st layer of PVC Insulation tape
Step 4: Layer 3 - 2nd layer of virgin rubber insulation
Step 5: Layer 4 - 2nd layer of PVC Insulation tape
Star-Delta models are provided with two separate 3-core PVC-insulated flat cables, each
3 metres long
Repeat the procedure for both 3-core PVC flat cables from the motor to the two cables from
the starter
Fig. 5 Cable Joint for Under Water Application
OMOW001A 16 2020.01
