PUSH ARMS
The push arm rod ends must be adjusted evenly to:
– locate the deck perpendicular to the front-to-rear
axis of the machine; and
– so the notch at the front of the engine deck clears
the push arm bracket on the rear of the cutter-
deck when the cutterdeck is raised to the trans-
port position.

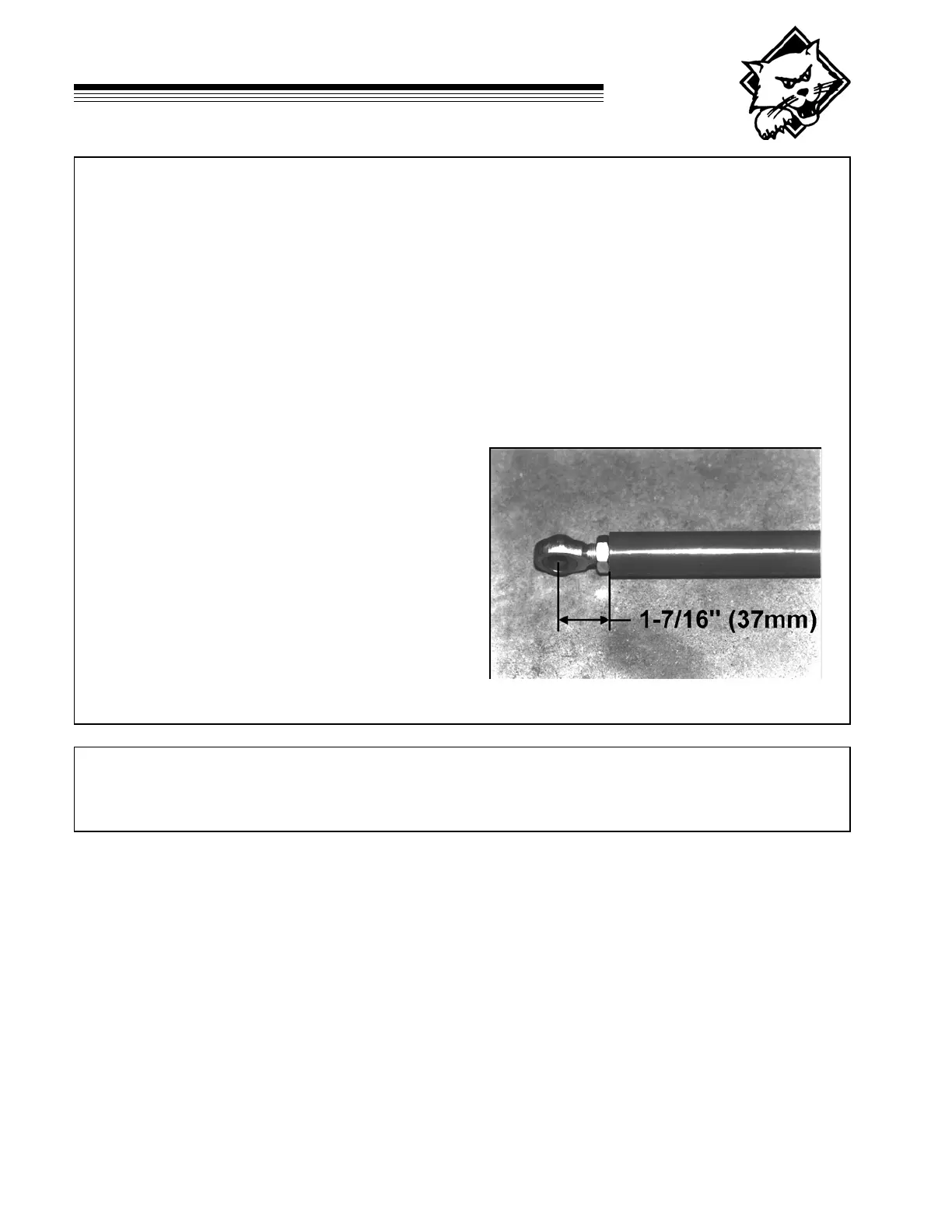

Adjust the rod end length to 1-7/16" (37 mm) to start.
If any additional adjustment is required, adjust both
rod ends so the same number of threads show.
BELTS
All belts are tensioned by spring loaded idlers. No adjustment is required.
ADJUSTMENTS
