ADJUSTMENTS
DECK LEVELING

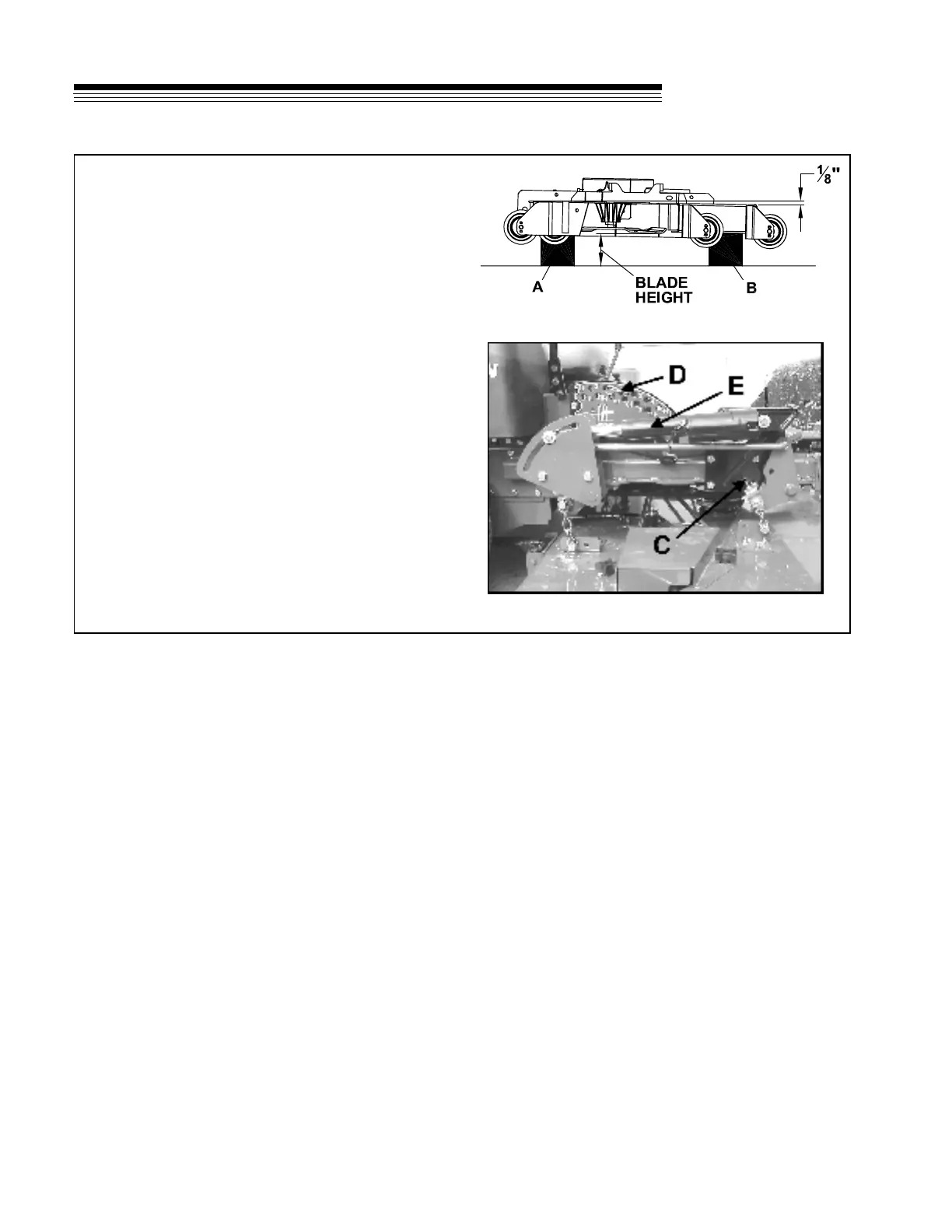

a) Park the machine on a smooth, level surface.
Raise the deck to the transport position.
Remove pin D.
b) Lower the deck onto a set of equal height blocks
A under the rear corners of the deck. Place
another set of blocks B under the front of the
deck so that the deck top is pitched forward 1/8”.
Continue running the actuator in the “DOWN”
direction, so there is plenty of float for the
actuator E.
NOTE: The front and rear of the deck are at different
heights.
c) Measure the height of the blade cutting edge
above the ground. Install pin D in the hole
corresponding to the blade height.
d) Loosen the jam nuts on the height of cut clips
and adjusting screws C. Turn the adjusting
screws C until the play is taken out of the chains
at all four corners. Tighten the jam nuts against
the clips and at the adjusting screws.
