35
ITEM PART NO. DESCRIPTION QTY
ITEM PART NO. DESCRIPTION QTY
JZT 2000
Series
FIGURE 5
BRAKES/REAR WHEEL
4124368-05
5-1 4124371 S-ENGINE DECK W/LABS 1
5-2 4113527.7 WLDMT-BRAKE ARM LH 1
5-3 4113529.7 WLDMT-BRAKE ARM RH 1
5-4 128102 SPRING,EXTENSION 2
5-5 4113518.7 WLDMT-BRAKE LEVER 1
5-6 33213 ROD-SPD CTRL UPPER 2
5-7 2182387.7 GUIDE-SPRING 2
5-8 38020N CLEVIS YOKE, 5/16 PLATE 2
5-9 2188147 ASSY, BRAKE CW (LH) 1
* 2188148 ASSY BRAKE CCW (RH) 1
5-10 64163-06 WSHR,.768/.756X1.25X14G 2
5-11 2183056 SHAFT, BRAKE 1
5-12 2188126-01MOTOR-ASSY HYDRAULIC 2
(INCLUDES ITEMS 32 & 33)
5-13 2198156-01RIM ASM, W/VALVE STEM 2
2198156-02TIRE-23X10.5-12 4P 2
(ITEM 13 USED ON 642222A & 642227A)
5-14 2720608-01RIM ASM, W/VALVE STEM 2
2720608-02TIRE-23 X 8.50-12 2
(ITEM 14 USED ON 642220A, 642221A)
5-15 64220-02 BLT-WHL 7/16-20X.75 75D 10
5-16 64188-02 PIN, CLEVIS 5/16X1 2
5-17 64061-25 ROLL PIN-1/4X1-1/4 2
5-18 2188155 GRIP, 1/4X1X4-1/2 1
5-19 2183063-01SPACER, 32MM LONG 8
5-20 2188149 HUB, WHEEL AND DISC 2
5-21 85010N ZERK, 1/4-28 STR SLFTHRD 1
5-22 64144-34 SNAP RING.50 1
5-23 2188145 BEARING-.75ID SELF ALIGN 2
5-24 64123-15 BOLT-3/8-16X3/4 HEX 4
5-25 64141-4 NUT-WLF 3/8-16 4
5-26 64207-07 NUT-HEX M12-1.75 8
5-27 64168-2 COTTER-HAIRPIN.08X1.19 6
5-28 64025-03 NUT-HEX 5/16-24 2
5-29 64006-05 LOCKWSHR-HELICAL 1/2 8
5-30 4113530 WLDMT-PRK BRAKE ROD 1
5-31 450767 CAPSCREW 12-1.75X110 8
5-32 64164-08 S-KEY FOR WHEEL MOTOR 2
5-33 64025-31 NUT 1-20 UNSLOTTED TRW2
5-34 2722001-01RIM ASM-W/VALVE STEM 2
1985085-02 TIRE 24X12.00-12NHS 4PLY2
(ITEM 34 USED ON 642223A,
642228A & 642233A)

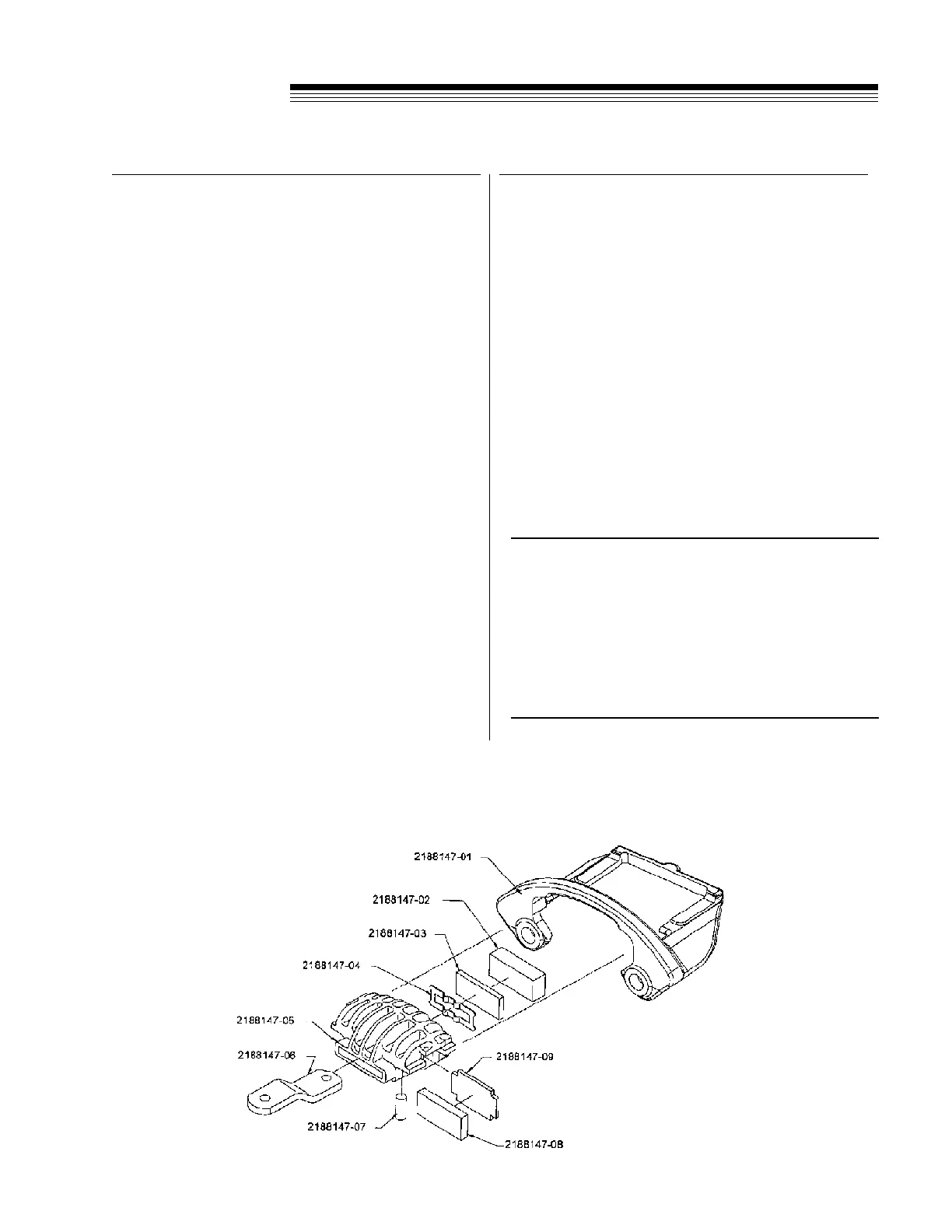

BRAKE ASSEMBLY BREAKDOWN
SERVICE PARTS FOR 2188147 AND 2188148
2188147-01 BRACKET-MACHINED 1
2188147-02 PAD-CAM SIDE 1
2188147-03 PAD-SUPPORT 1
2188147-04 SPRING-LEVER RETAINER 1
2188147-05 HOUSING 1
2188147-06 CAM LH 1
2188147-07 PIVOT PIN 1
2188147-08 PAD-CARRIER SIDE 1
2188147-09 PAD-SUPPORT 1
2188148-01 *CAM RH 1
* NOT ILLUSTRATED
QTY/ASSY
