The Renovator Transforma 24 - Page 15

15
SAFETY PRECAUTION:
MAKE SURE THAT THE WORK PLATFORM’S FORK BOLTS ARE ALWAYS TIGHT AND
THE FORKS LOCK INTO PLACE WHEN USED AS THE SPREADER ATTACHMENT.

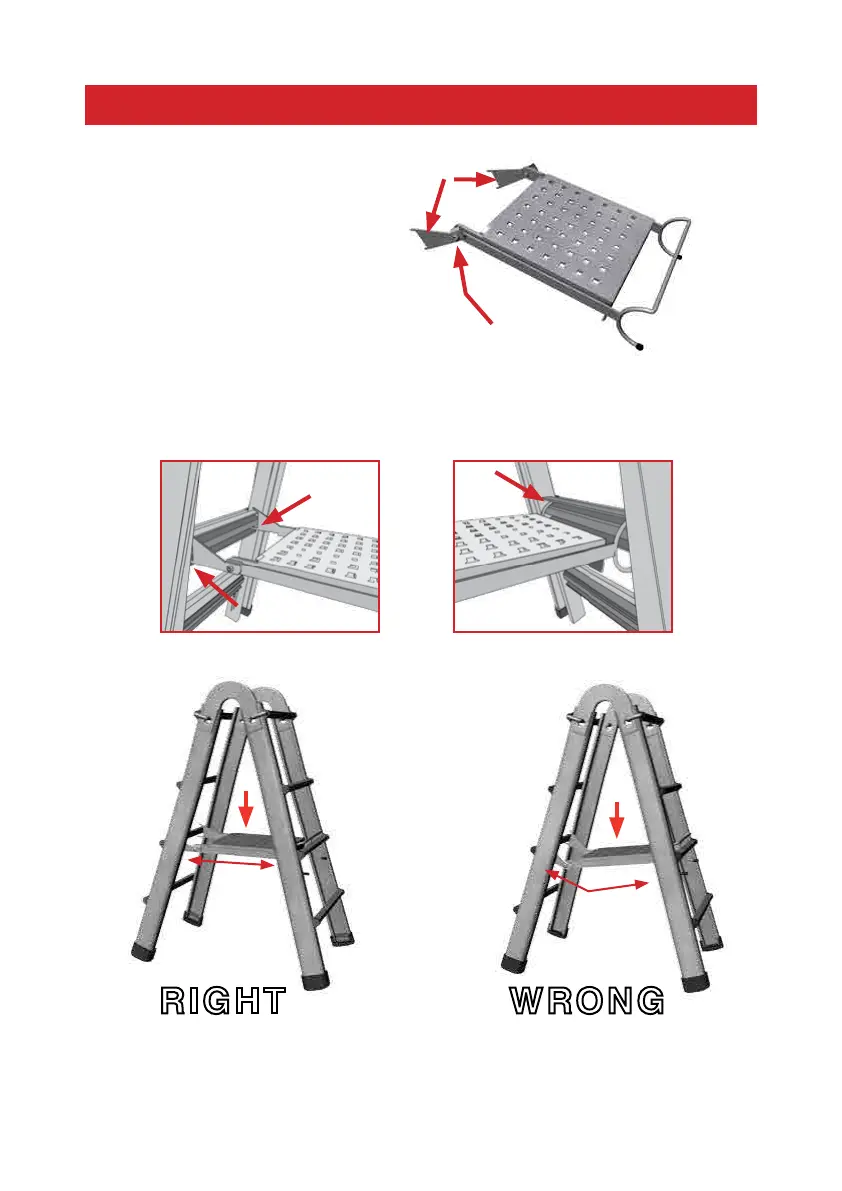

10. Insert the lower forks of the work
platform into the lower channel on
the back of the step.
(See Figure G-10)
11. Insert the horizontal bar of the
work platform into the upper
channel on the back of the step.
(See Figure G-11)
IMPORTANT: When using the spreader on the inner ladder rails
9. Rotate the forks on the
work platform to the angled
position shown right.
(See Figure G-9).
Figure G-9
Figure G-10 Figure G-11
Forks
Fork Bolt
RIGHT WRONG
Figure G-12
12. Press down on the work
platform until it locks into
aatpositionbetweenthe
rungs. (See Figure G-12).
