— E3 —
Assembly
1

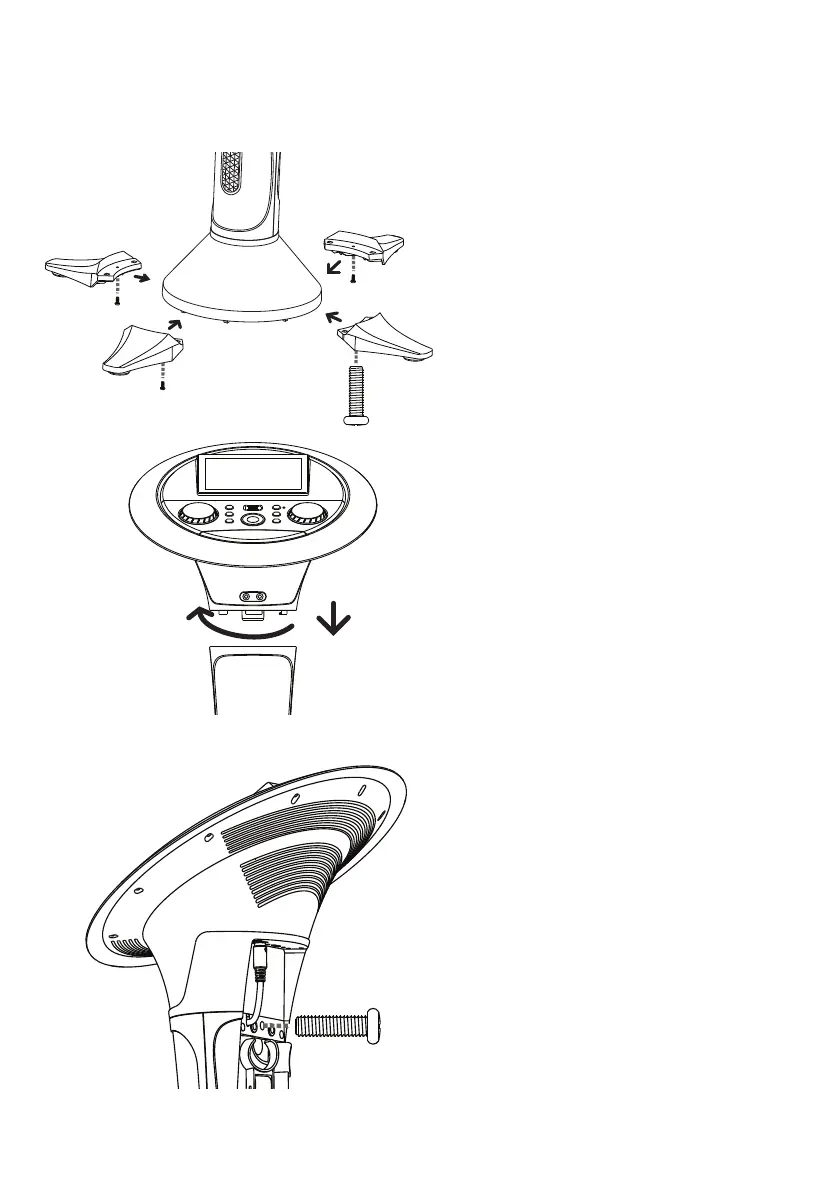

Install the four pedestal feet u
into the pedestal base and secure
each with one screw v by using a
Hexagonal wrench (included).
2
Insert the main unit into the
pedestal u and then gently rotate
clockwise v until the screw hole
on the base aligns with the screw
hole on the pedestal.
3
Insert and tighten the last screw
on the rear of the pedestal to
secure the main unit in position.
4
Plug the woofer cable of the
pedestal into the woofer jack
located on the main unit.
u
v
u
v
w
x
