100 CUEMASTER II OPERATION

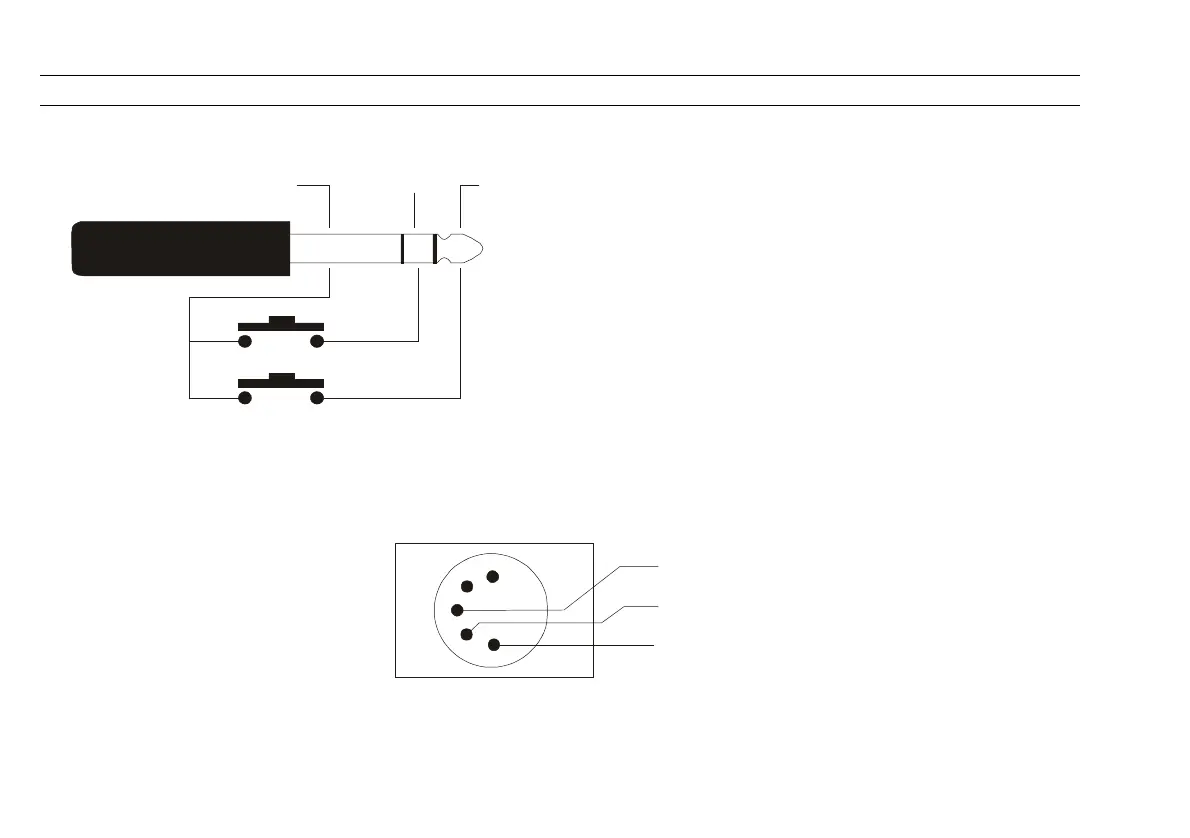

CONTROL CONNECTIONS

REMOTE CONTROL

SLEEVE (CHASSIS)

RING

TIP

6.25mm STEREO JACK

STEP REVERSE

STEP FORWARD

STEP FORWARD FOR 3 SECONDS = HOME

USITT DMX-512 1990 PROTOCOL

PIN 3 - DIMMER DATA +

PIN 2 - DIMMER DATA -

PIN 1 - SIGNAL COMMON (SHIELD)

USE SHIELDED TWISTED PAIR CABLE

APPROVED FOR RS-422 / RS-485

DIMMER MULTIPLEX OUTPUT
