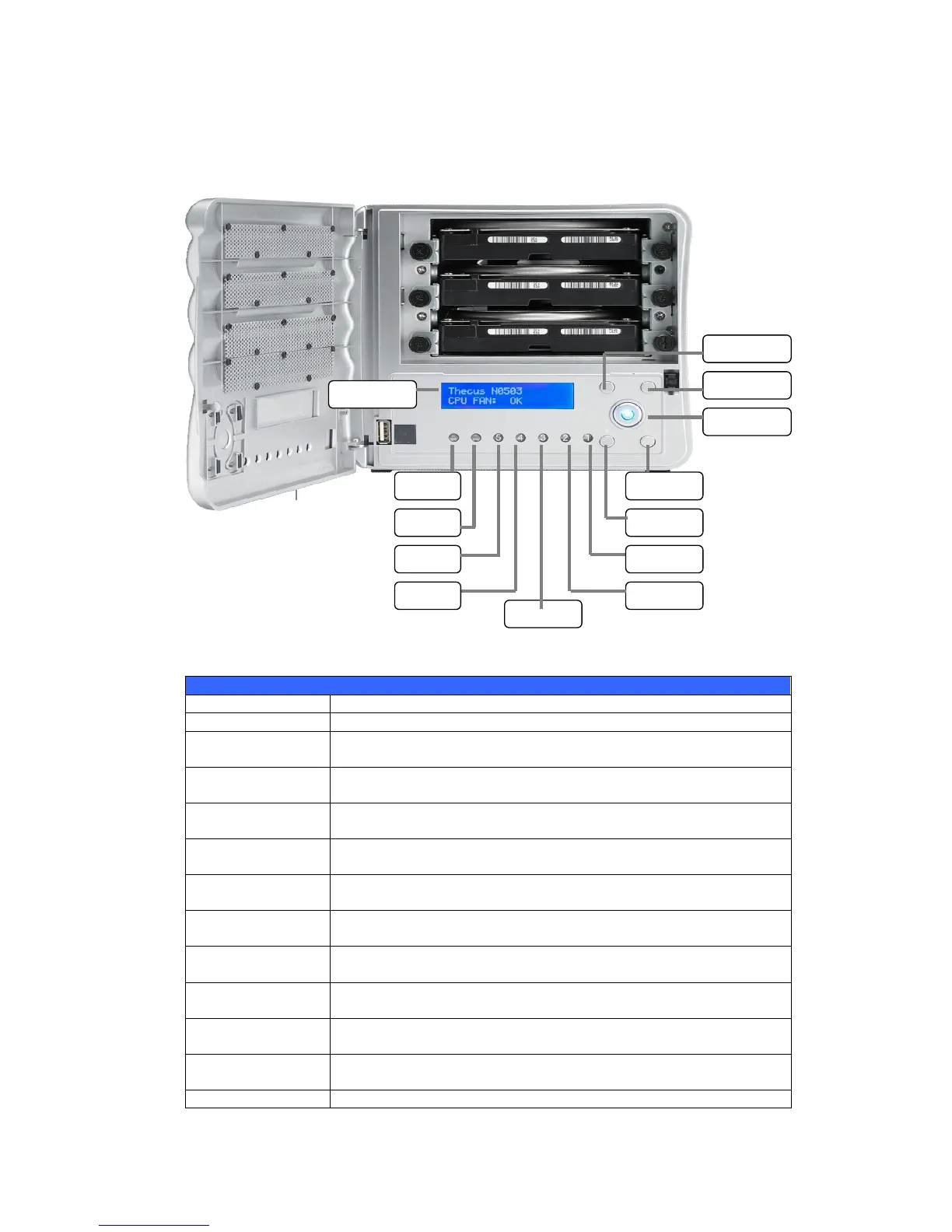

The Thecus N0503’s front panel has the device’s controls, indicators, and hard disk
trays:
Front Panel
Item Description
Power LED  Solid blue: System is powered on
WAN/LAN1 LED  Solid green: Network link
 Blinking orange: Network activity
LAN2 LED  Solid green: Network link
 Blinking orange: Network activity
HDD 1 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 2 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 3 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 4 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 5 LED  Solid red: HDD failed
 Blinking orange: HDD activity
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers.
Power Button  Powers the N0503 on/off.
 Solid blue: Device is powered on
LCD Display  Displays current system status and messages (Update time: 60
seconds).
Down Button ▼  Push to scroll DOWN when using the LCD display.
Escape
Enter Button
Power
LCD Display
LAN2
WAN/LA
HDD 5
HDD 3 LED
HDD 2 LED
Up Button
Down
HDD 1 LED
HDD 4
