N5200XXX/N5500:

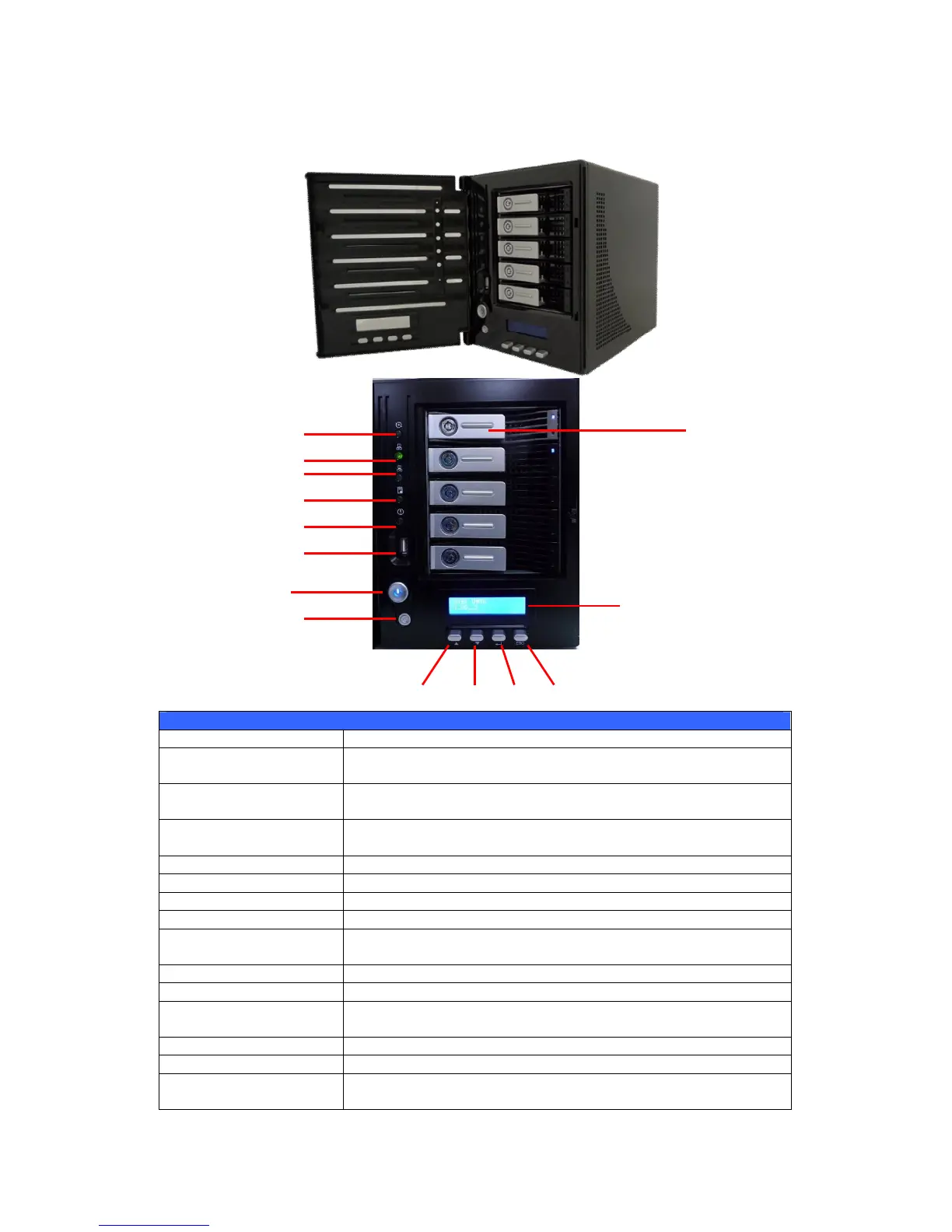

The Thecus N5500 front panel has the device’s controls, indicators, and hard disk

trays:

Front Panel

Item Description

1.System LED  Blinking orange: System is being upgraded or ;is starting up;

data currently inaccessible

2.WAN/LAN1 LED

 Solid green: Network link

 Blinking green: Network activity

3.LAN2 LED

 Solid green: Network link

 Blinking green: Network activity

4.USB Copy LED  Solid blue: Files are being copied from a USB storage device

5.Syetem Warning LED  Solid RED: System error

6.Reset Button  Resets system configuration to default value.

7.USB Port  USB 2.0 port for compatible USB devices, such as USB disks.

8.Power Button/ Power

LED

 Power on/off N5200XXX/N5500 and Power LED.

 Solid blue: System is power on.

9.Up Button ▲  Push to scroll up when using the LCD display.

10.Down Button ▼  Push to enter the USB copy operation screen.

11.Enter Button   Push to enter LCD administrator password to access basic

system setting.

12.Escape Button ESC  Push to leave the current LCD menu.

13.LCD Display  Displays current system status and warning messages.

14.HDD Trays  Five 3.5” SATA HDD trays.

 Locks are provided for added security.
