N4200 series/N5200XXX/N5500:

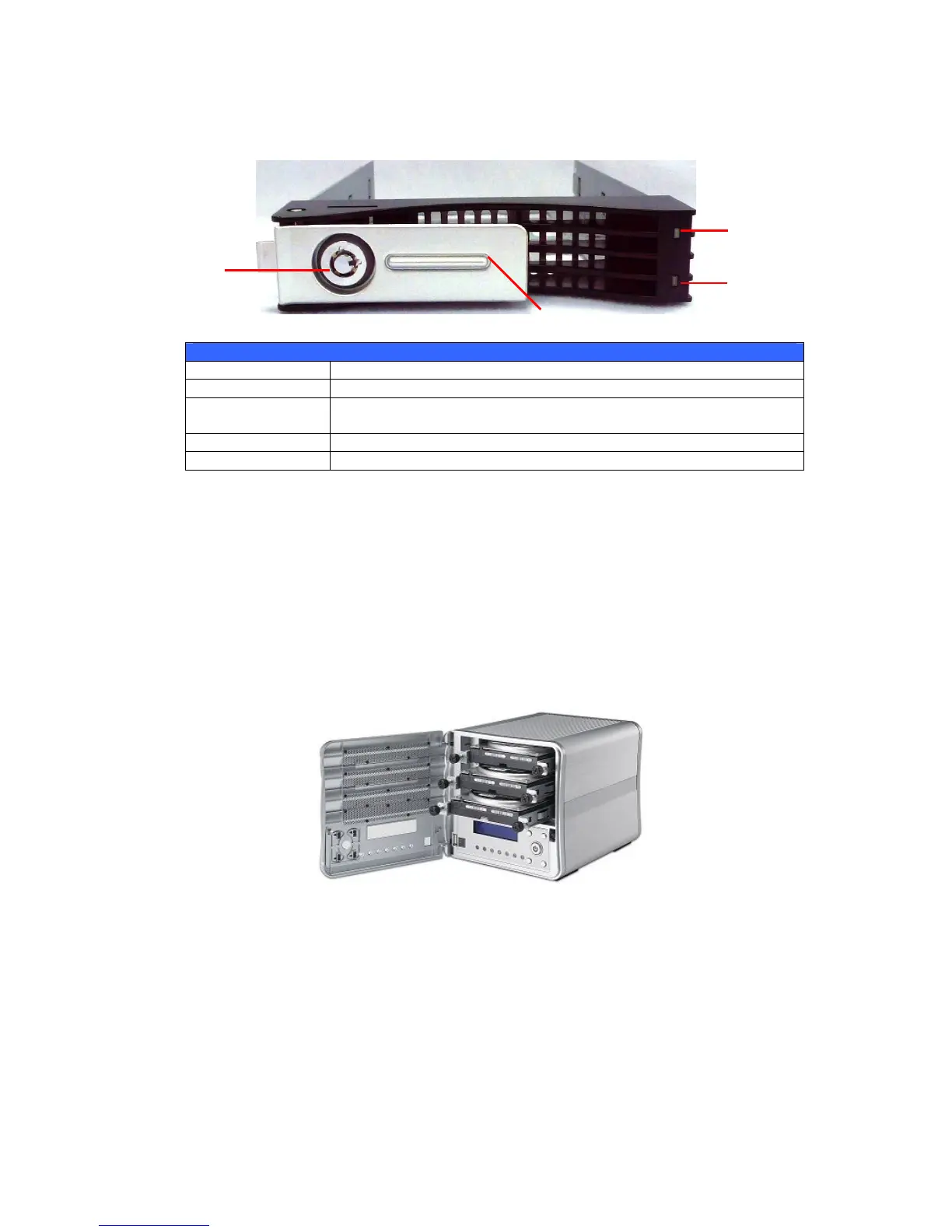

Each of the N5500’s hard disk trays has a lock, a latch, and two LED indicators:
Hard Disk Trays
Item Description
1.HDD Power LED Solid blue: Hard disk is powered on(No function on N4200 series)
2.HDD
Access/Error LED
Blinking green: System is accessing data on the hard disk
Solid red: HDD fail (No function on N4200 series)
3.Lock Use the lock to physically secure the hard disk to the unit.
4.Handle Pull to remove the HDD tray.
N3200XXX:
The N3200XXX only supports 3.5” Serial ATA (SATA) hard disks. To install a hard
disk into the N3200XXX, follow the steps below:
1. Open the front door of the N3200XXX.
2. For 3.5” HDD:
a. Get the hard drive rails and place them on either side of the hard
drive, fitting into the appropriate grooves.
b. Holding the hard drive rails in place, slide the hard disks into the
N3200XXX until they snap into place.
c. Tighten the thumbscrews.
5
1
2 3
4
