1U4200XXXR:
Locator LED

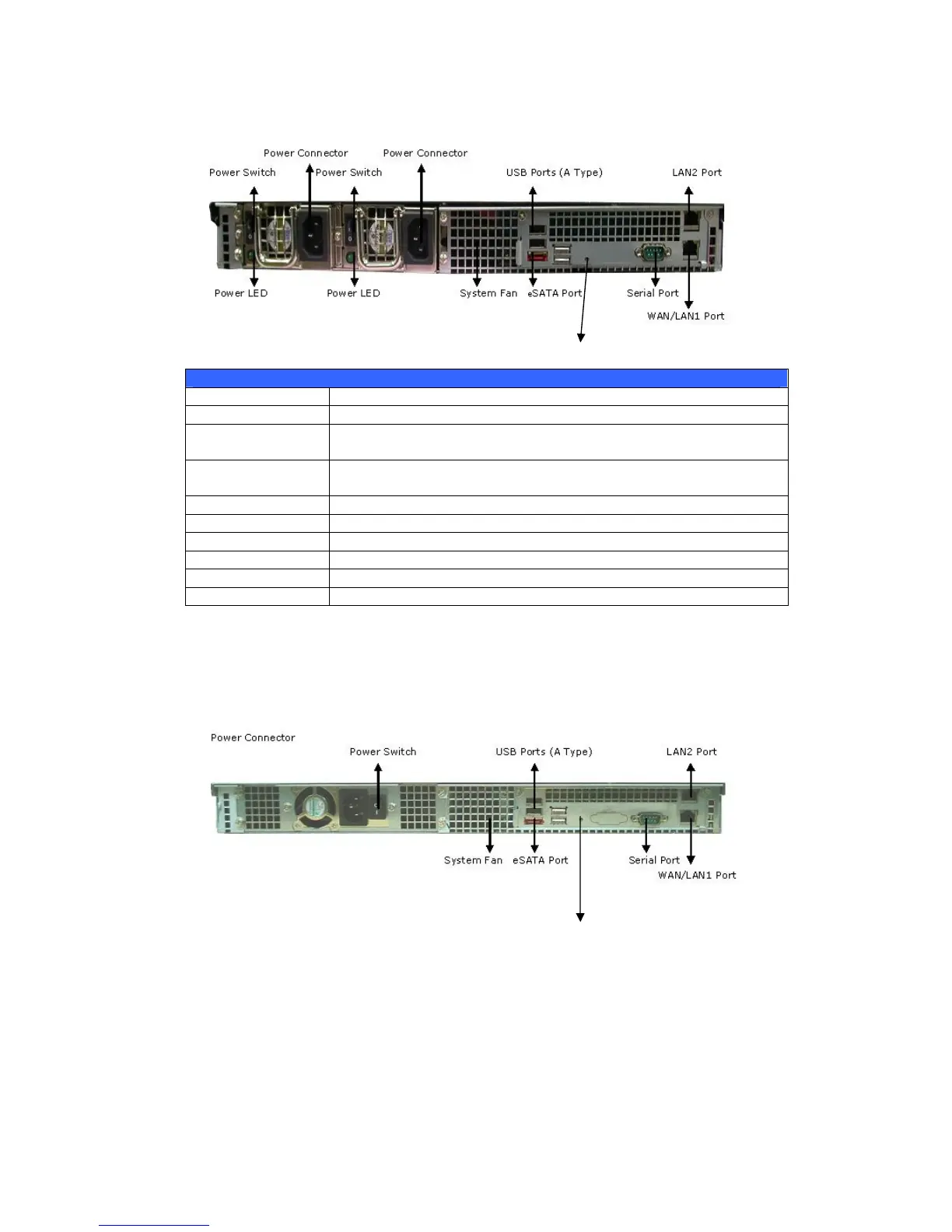

1U4200 Back Panel
Item Description
eSATA Port eSATA port for high-speed storage expansion.
USB Ports USB 2.0 ports for compatible USB devices, such as digital
cameras, USB disks, and USB printers.
WAN/LAN1 Port WAN/LAN1 port for connecting to an Ethernet network through a
switch or router.
LAN2 Port LAN2 port that can be used for connection sharing.
Power Switch Switch for power supply.
System Fan System fan that exhausts heat from the unit.
Serial Port This port is for factory use only.
Locator LED Identifies each NAS within a rack mount configuration.
Power Connector Connect the included power cords to these connectors.
1U4200XXXS:
The rear panel of the 1U4200XXXS is similar to the 1U4200XXXR, but with a single
power connector:
