Thecus N5550 User Manual

22
N7510:

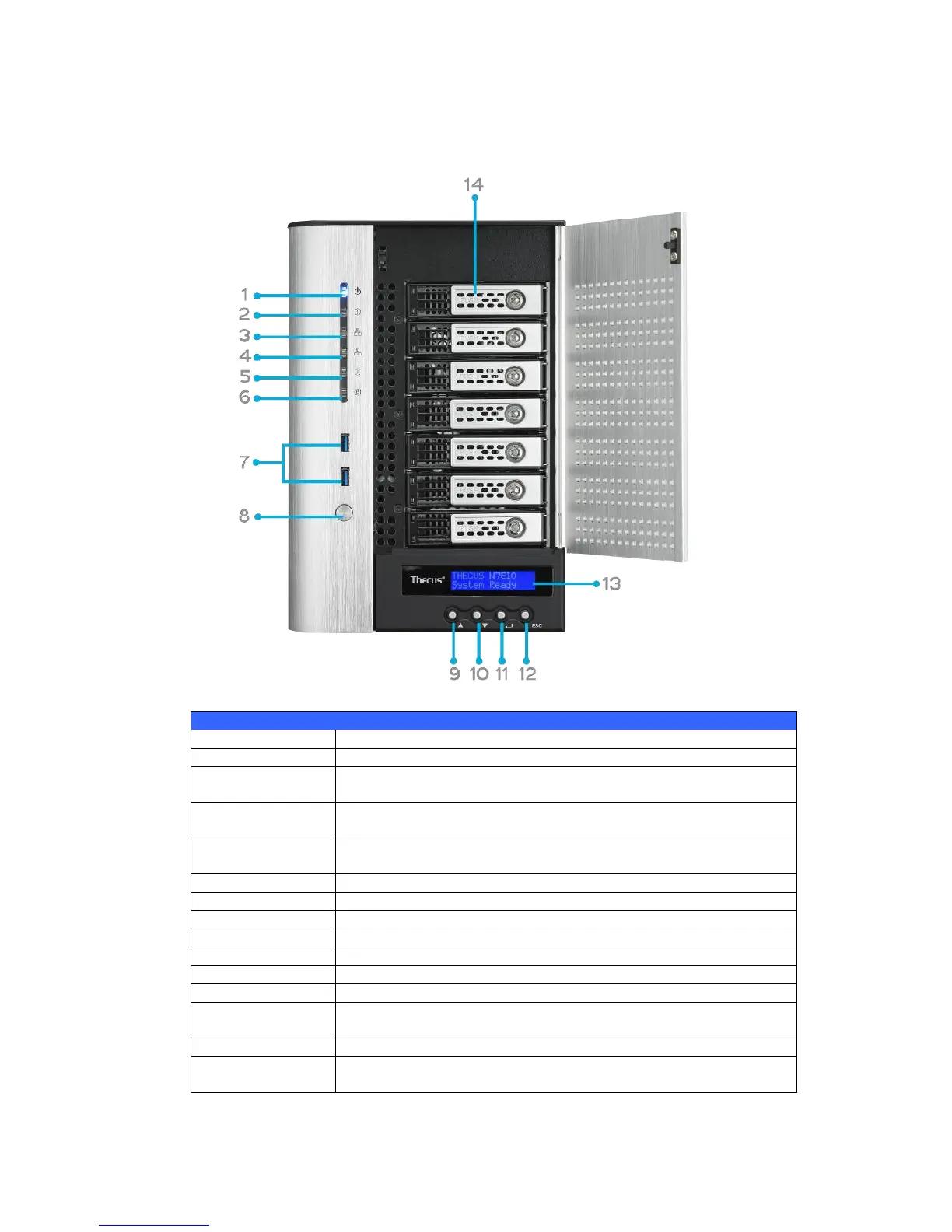

The Thecus N7510 front panel has the device’s controls, indicators, and hard disk
trays:
Front Panel
Item
Description
1.Power LED
 Solid blue: System is power on.
2.System LED
 Solid orange: system is being upgraded or system startup; data
currently inaccessible
3.WAN/LAN1 LED
 Solid green: network link
 Blinking green: network activity
4.LAN2 LED
 Solid green: network link
 Blinking green: network activity
5.USB Copy LED
 Solid blue: files are being copied from a USB storage device
6.eSATA link LED
 Solid blue: external eSATA device has connected
7.USB Port
 USB 3.0 port for compatible USB devices, such as USB disks.
8.Power Button
 Power on/off N7510
9.Up Button ▲
 Push to scroll up when using the LCD display
10.Down Button ▼
 Push to enter USB copy operation screen
11.Enter Button 
 Push to enter LCD operate password for basic system setting
12.Escape Button
ESC
 Push to leave the current LCD menu
13.LCD Display
 Displays current system status and warning messages
14.HDD Trays
 Seven 3.5” SATA HDD trays
 Locks are provided for added security

Thecus N5550 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	5
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Wi-Fi	No
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic in 1 x line in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
FireWire 400	FireWire-interface with a data transmission speed of 400 Mbit/s (50MB/s). FireWire is a serial computer bus technology designed as replacement of SCSI and is based on the IEEE 1394 and 1394b standards.
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black
Power supply unit (PSU) capacity	200 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	240 mm
Width	190 mm
Height	230 mm
