Thecus N8800SAS User Manual

Hard Disk Trays

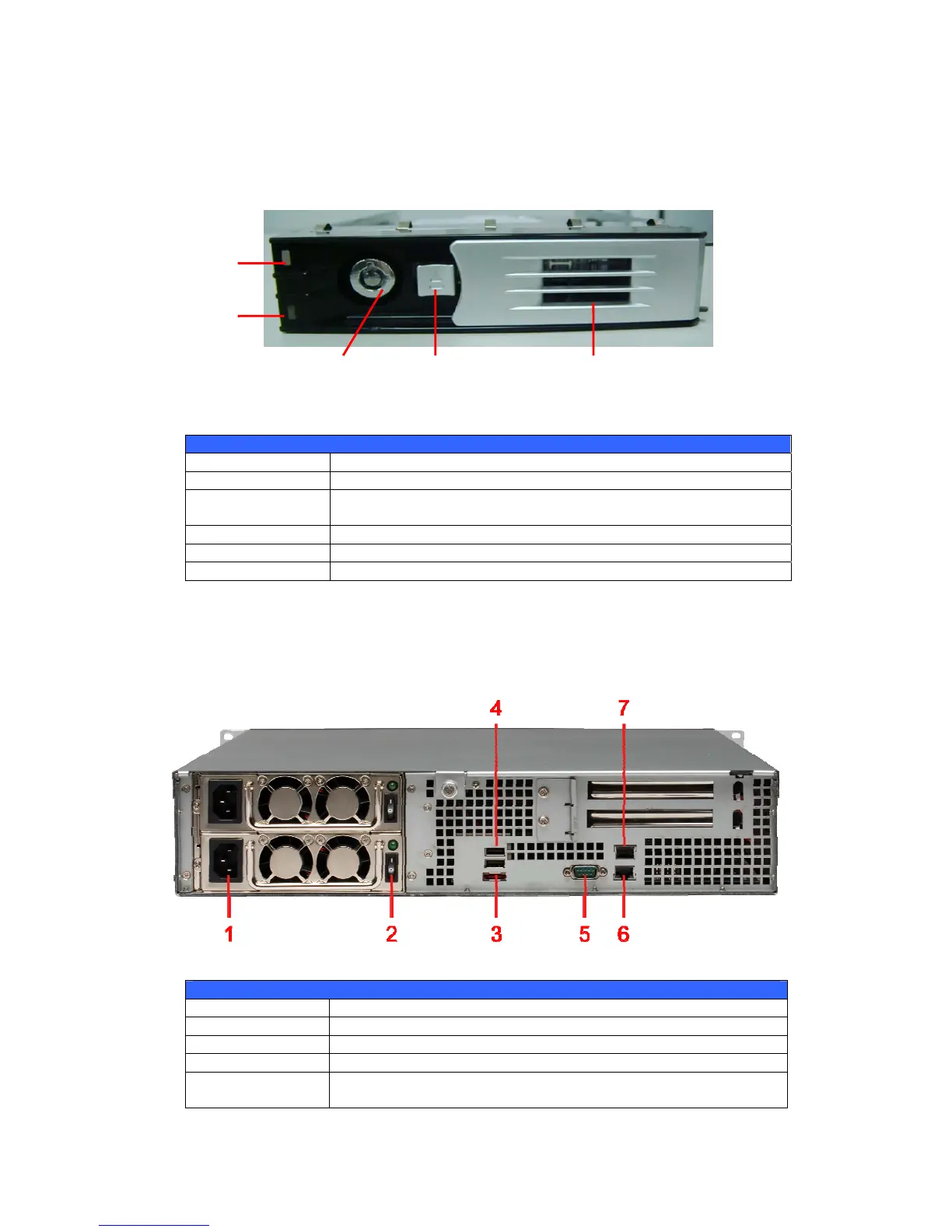

Each of the N8800SAS’s hard disk trays has a lock, a latch, and two LED indicators:
Hard Disk Trays
Item Description
1.HDD Power LED • Solid blue: hard disk is powered on
2.HDD
Access/Error LED
• Blinking green: system is accessing data on the hard disk
3.Lock • Use the lock to physically secure the hard disk to the unit
4.Latch • Use to open and remove or close and secure the tray
5.Handle • Pull out HDD tray
Rear Panel
The N8800SAS rear panel features ports and connectors.
Back Panel
Item Description
1.Power Connector • Connect the included power cords to these connectors
2.Power Switch • Switch for power supply
3.eSATA Port • eSATA port for high-speed storage expansion
4.USB Port • USB 2.0 port for compatible USB devices, such as USB disks, and
USB printers
3 4 5
2
1
13
