Pool^M Manager App A2 User Manual v1.0 4

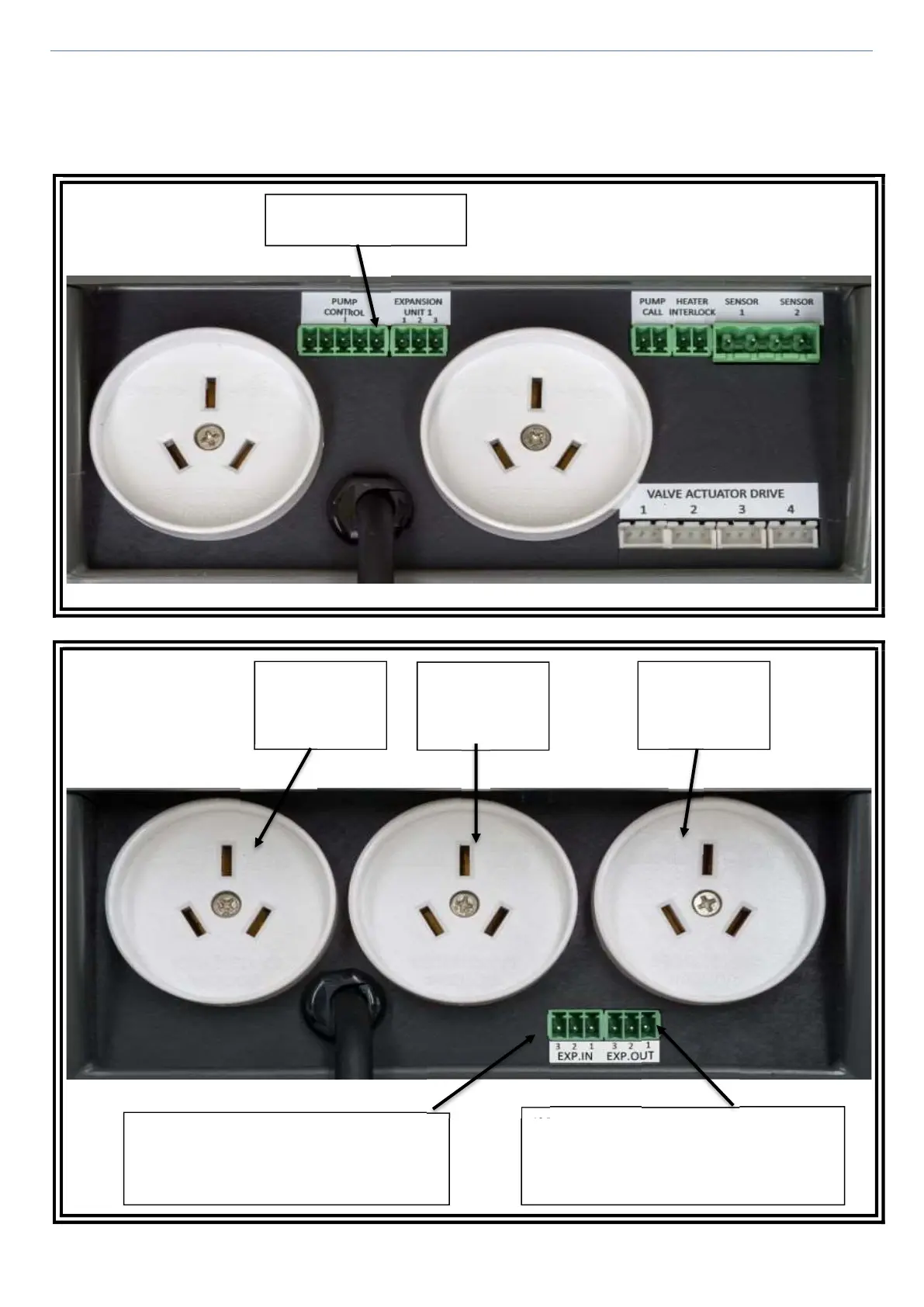

INSTALLATION DIAGRAMS
The Pool+ Manager A2 Master Controller and an Expansion Unit.
MASTER CONTROLLER
EXPANSION UNIT/S
10 & 15AMP
Expansion Unit 1
Socket 3
Expansion Unit 2
Socket 6
Expansion Unit 1
Socket4
Expansion Unit 2
Socket 7
Expansion Unit 1
Socket5
Expansion Unit 2
Socket 8
If Expansion Unit 1, the connection cable to the
master controller will plug in here.
If Expansion Unit 2, the connection cable runs
from here to Expansion unit 1
If Expansion Unit 1, the connection cable from
Expansion Unit 2 will plug in here. It will be
unused if there is no Expansion Unit 2.
If Expansion unit 2 connection port is unused.
Pin 1 is on the right-hand
side of the plug
