EX-TRAFIRE
®
75SD
Operator Manual, Revision T-5 2-17

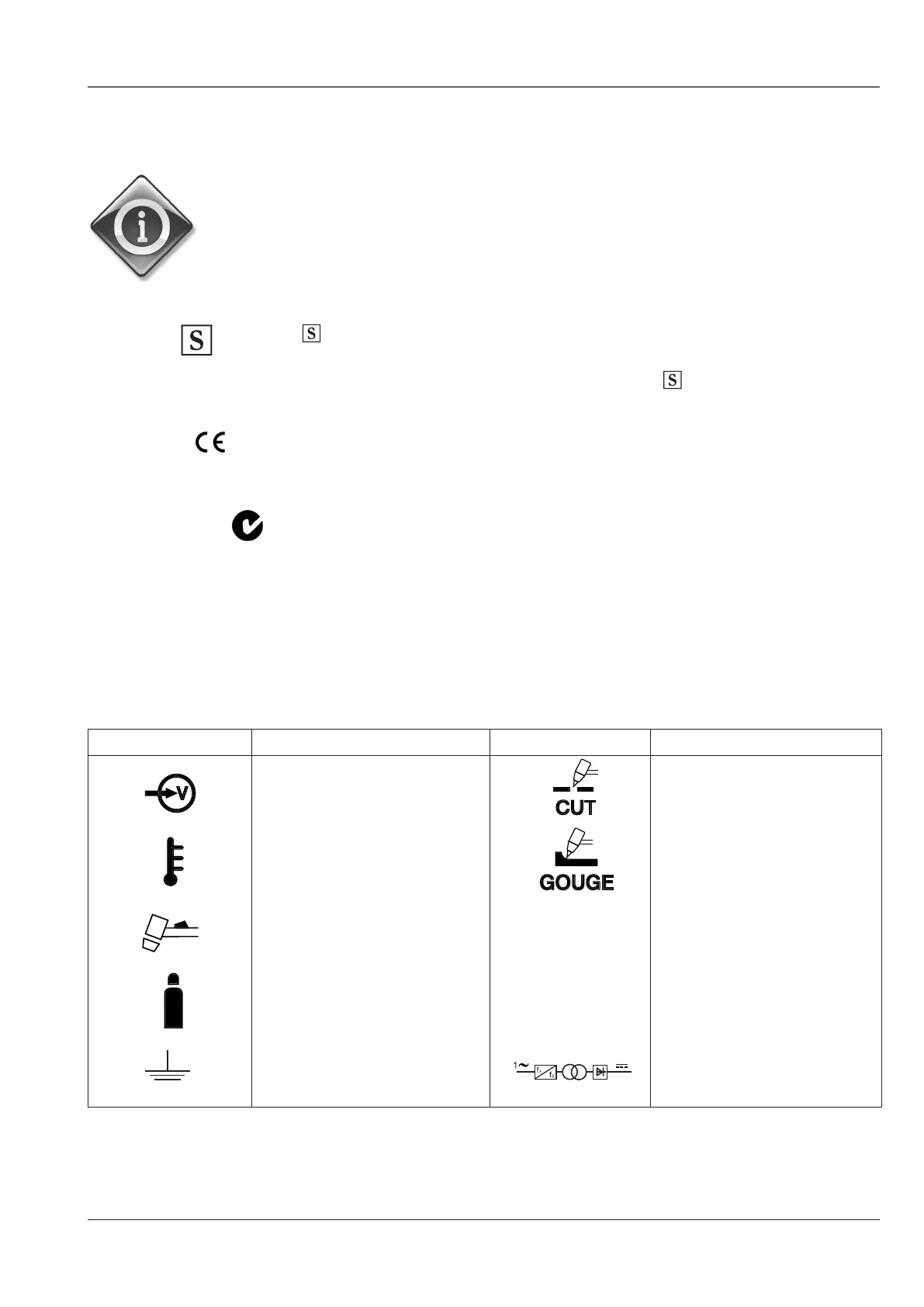

Symbols and marking
For compliance with the European Norm, it is NOT permissible
to use unshielded consumables in Hand-Held applications�
S Mark;
This marking signifies the manufacturer’s declaration of conformity to
applicable European directives and standards (EMC & LVD)�
The mark indicates that the power supply and torch are suitable for
use in environments with danger of electrocution� The hand torches must
have shielded consumable parts fitted to mantain mark compliance�
CE Mark;
C-Tick Mark;
This marking signifies compliance with appropriate Australian EMC standard�
IEC symbols;
The following symbols may be present on the plasma arc power supply data plate, control labels
and switches�
Symbol Description Symbol Description
Alternating Current (AC) power Cutting Mode
Over-Temperature (OT) Gouging Mode
(TIP/TORCH) Missing or loose
nozzle/torch spare parts
(consumables)
ON
Power is ON
(GAS) Low inlet gas pressure alarm
OFF
Power is OFF
The terminal for the external
protective (earth) conductor
An inverter-based power supply
