EX-TRAFIRE
®
75SD
Operator Manual, Revision T-5 3-21
Green-Yellow
Black
Grey
Brown
Mains power lead
EX-TRAFIRE®75SD - 3 x 400V - is supplied with a 3 meter length of 4 core 2�5 mm2 flexo cable
without plug�
EX-TRAFIRE®75SD - 3 x 220V - is supplied with a 3 meter length of 4 core 4 mm2 flexo cable
without plug�
Use of a mains power lead extension is at the discretion of the user� The extension of the mains
power lead shall comply with local and national codes of practice and should be installed by a
certified electrician� See the length requirements listed below�
Recommended mains power lead extension depending on length (mm
2
)
< 3 m 3 - 7�5 m 7�5 - 15 m 15 - 30 m 30 - 45 m
Model CE Phase
mm
2
mm
2
mm
2
mm
2
mm
2
400 VAC±15% 3 6 6 10 10 16
220 VAC±15% 3 10 10 16 16 25
Note: The system was tested with a 3 meter mains power lead for compliance with EMC standards�
Three-phases mains power lead
To operate the EX-TRAFIRE
®
75SD, use a plug that complies with national and local codes of practice�
A certified electrician or electrotechnically competent person should connect the mains power lead
to the plug�

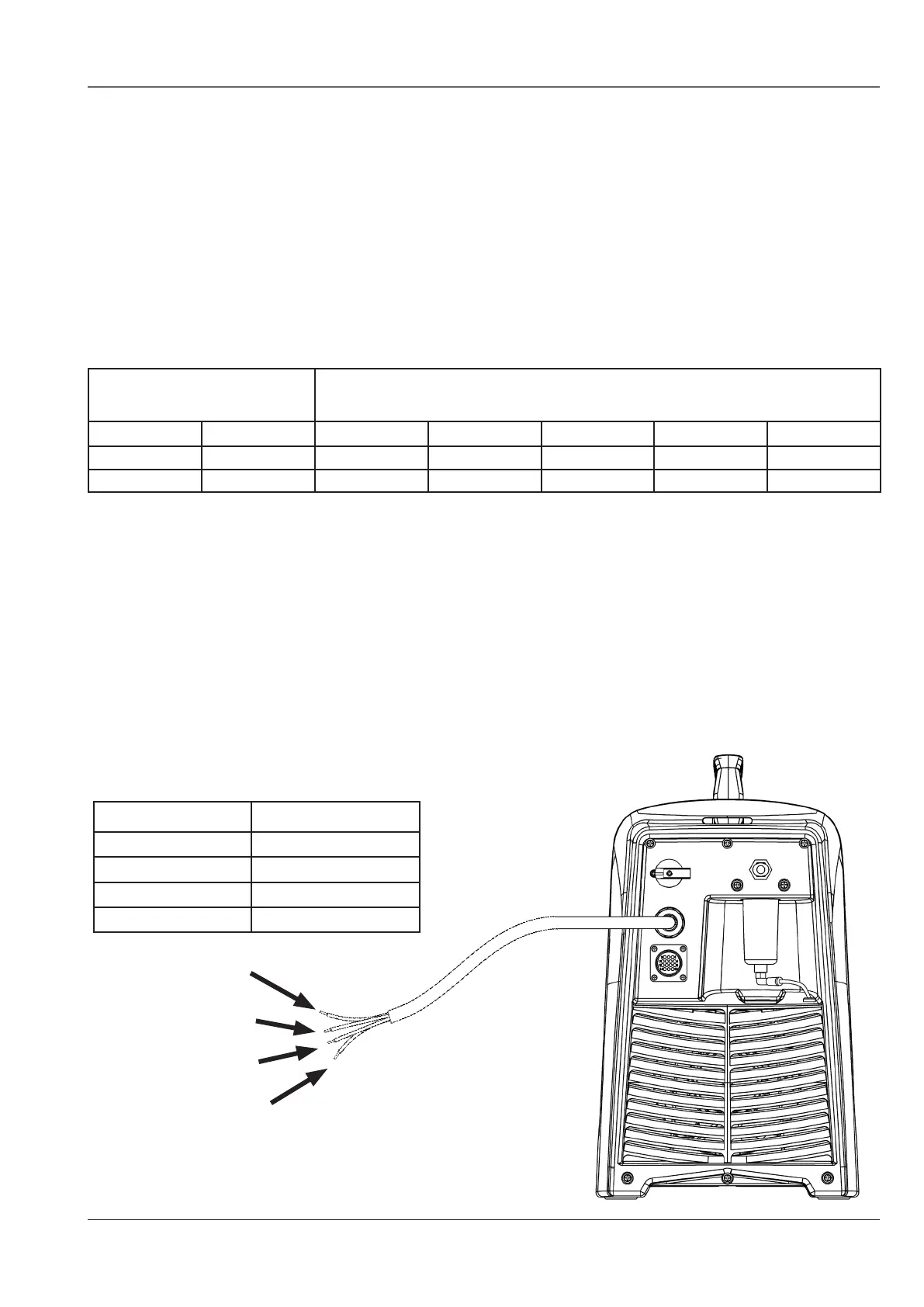

Installation of three-phases mains power lead
Strip and prepare the mains power lead as show below:
UNIT CE
L1 Black (U)
L2 Brown (V)
L3 Grey (W)
Earth Green-Yellow
