EX-TRAFIRE
®
75SD
Operator Manual, Revision T-53-30
Hand torch
Cutting guide
Hand shield

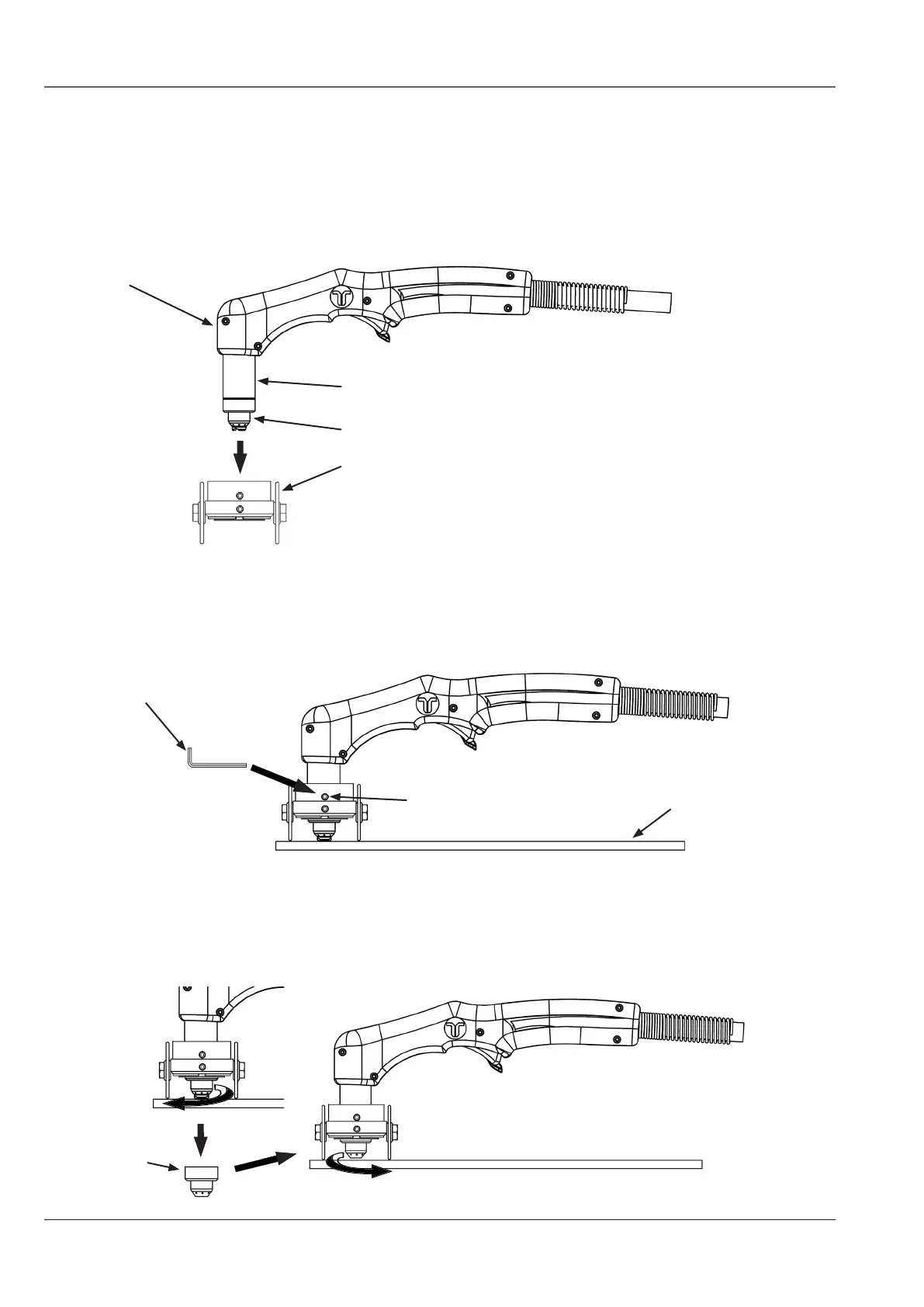

The circle cutting guide installation
- for the FHT-EX
®
105RTXH/105TTH/45TTH
1� Disconnect the torch from the plasma power supply�
2� Insert the hand torch into the cutting guide�
Retaining cap
3� Secure the hand torch in the cutting guide with help of the screw with hexagonal head�
Use the hexagonal wrench� Tighten by hand�
The hand shield defines the required torch to workpiece distance�
Screw with
hexagonal head
Hexagonal
wrench
Workpiece
machine
shield
4� It’s strictly recommended to use the machine shield in order to keep smooth cutting
operation� Unscrew the hand shield and replace with the machine shield� The torch to
workpiece distance remains the same because the hand torch is clamped in the cutting guide
in the place of the retaining cap�
