Operator Manual, Revision T-5 9-55
SECTION 9: SYSTEM CIRCUIT DIAGRAM
SECTION 9�

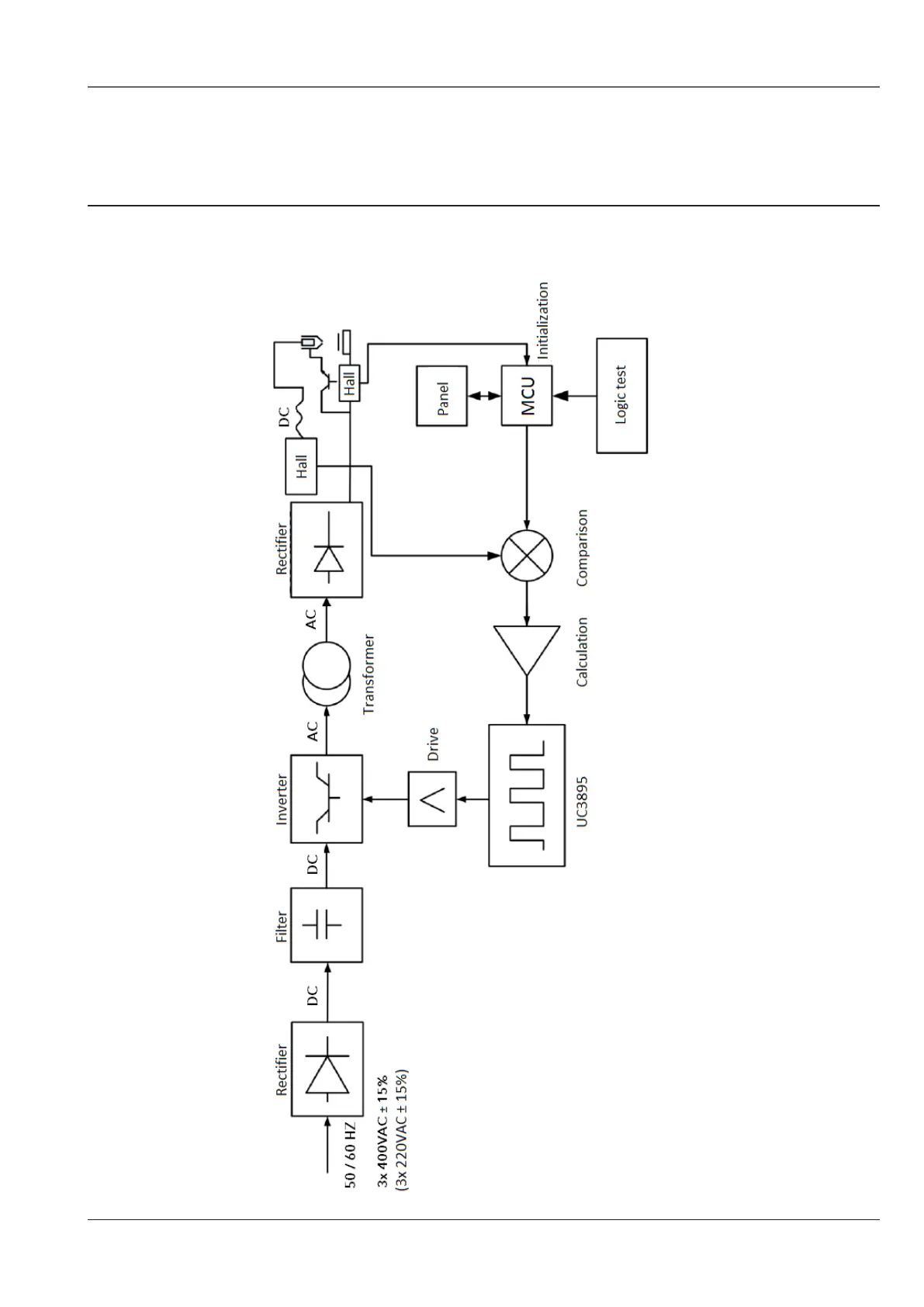

POWER SUPPLY BLOCK DIAGRAM
Power supply block diagram
