Thermia Athena Technical Description

1 Heat pump dimensions and connections
1.1 Heat pump dimensions and connections
1.1.1 Outdoor unit

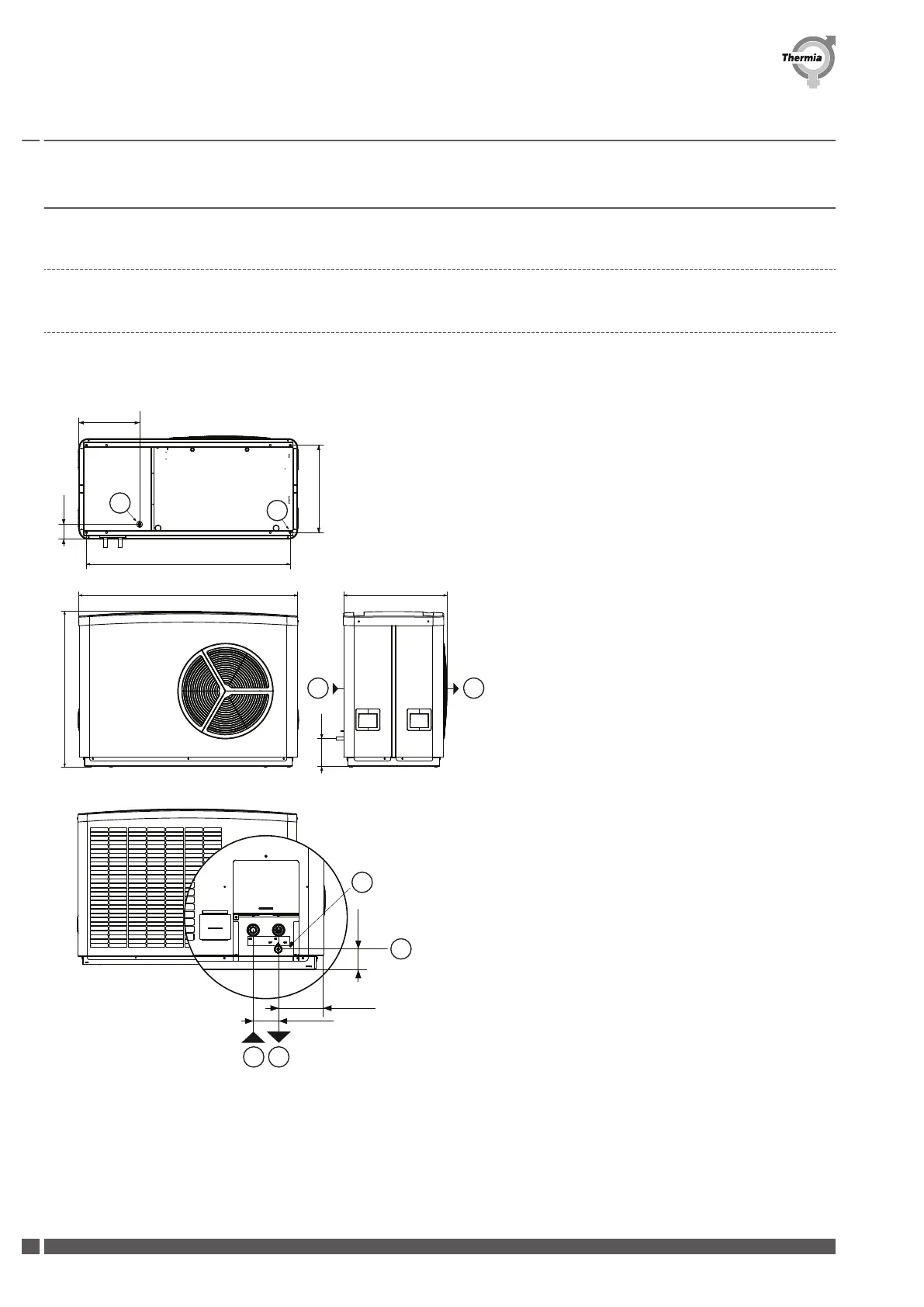

Athena 14 & 18 H/HC
(mm)
157
410
100
490
1490
1380
1045
593
1
7
2
3 4
6
5
100
82
176
8
1. Supply line (push-fit connection), Ø28mm
2. Return line (push-fit connection), Ø28mm
3. Back side/air intake
4. Front side/air discharge
5. Drain
6. Condensate drain, Ø25mm
7. Insert for stabilizing screws (M8x4)
8. Air venting
