Disassembly and Reassembly
(Rev.
7,
12/01)
washer
should be rcplaced with
a silver
wnsher
77-2498. Torque
to 5:l
fi-lb
(73
Nm).
,v
PA{
v
-tD
,/,
t3
6/
"\1
-&
1.
1.0 in. Daamet€r Crankshaft
2. 0.23 in. Thick Silver Washer
P/N
77-2498
3. 3/8-16 in. Boll-Torque
to 54 tHb
(73
Nm)

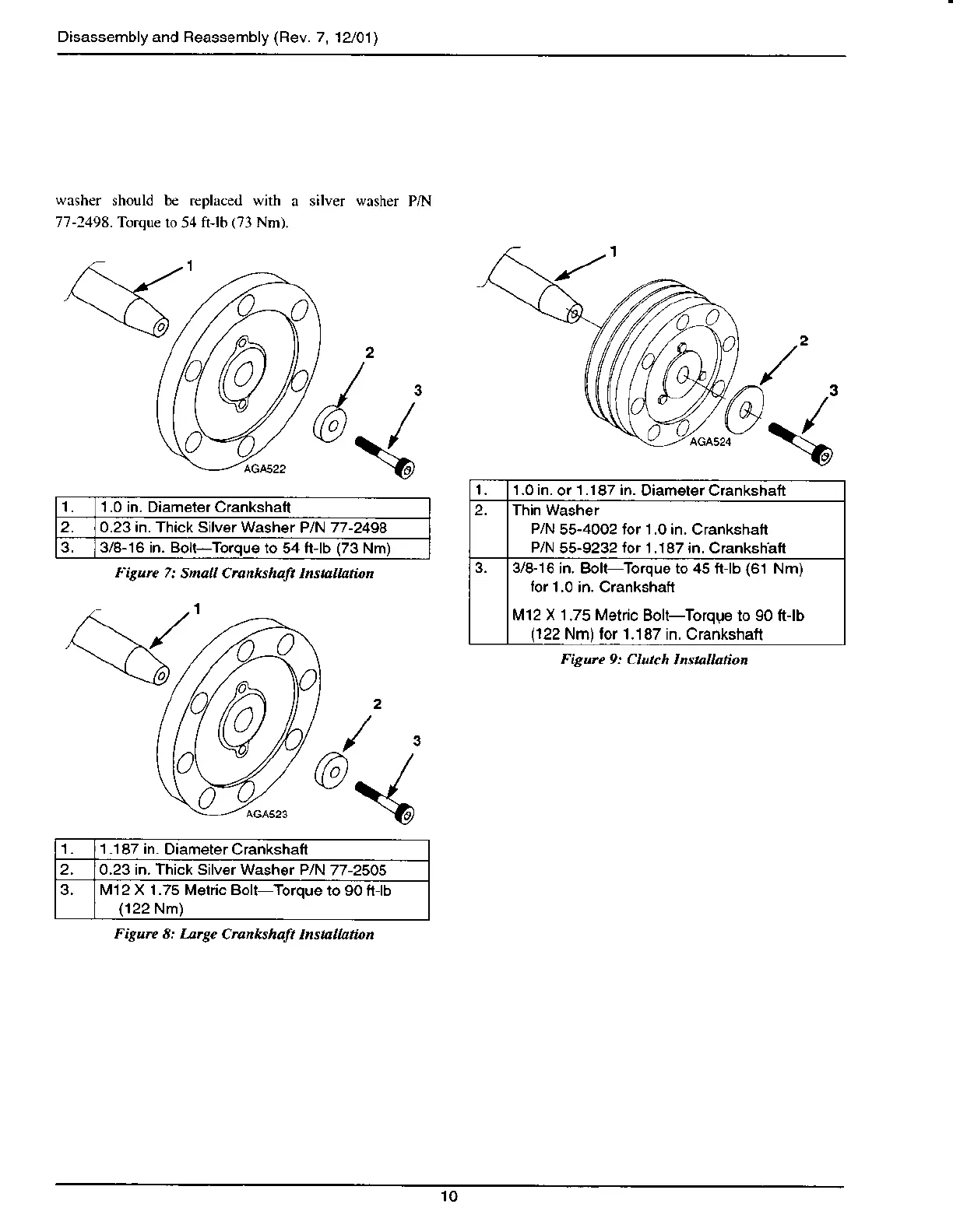

l'igure 7:
SmaU Crunkshaf, Ins,all4tion
I 1.0 in.
or
1.187 in.
Diameter Crankshaft
2. Thin Washer
P/N
55-4002 for 1.0 in. Crankshatt
P/N
55-9232
for
1.187 in. Crankshaft
3. 3/8-16
in. Bolt-Torque to 45 ftlb
(61
Nm)
for
1.0 in. Crankshaft
M12 X 1.75 Metdc
Bolt-Torqu€ lo 90 ftlb
(122
Nm) lor 1.187 in. Crankshaft
Fieure 9: Clutch Insto
arion
1.187 in.
Diameter Crankshaft
2. 0.23 in. Thick Silver Washer P/N
77-2505
3. [412 X 1.75 Metdc Boll-Torque
to 90 ttlb
(122
Nm)
Figure 8: Iarye
Crunkshaft Insta arbn
10
