4.5.2 Sliding Glass Doors
45 ft
3
models have self-closing sliding glass doors.
If the self-closing mechanism is not working properly, check to
make sure that the unit is level.
The sliding glass doors can be locked in the closed position,
using the tubular key provided. To lock these doors:
1. Locate the spring-loaded lock bolt at the bottom left of the
right-hand door frame.
2. The lock bolt has a small red dot. Insert the key over the bolt,
lining up the dot with the ridge on the key.
3. Rotate the lock bolt one half turn so that the dot is at the
bottom of the bolt.
4. Remove the key and push in the bolt to lock the door. The
door can be locked only when the dot is in the bottom
position.
To unlock the doors:
1. Insert the key over the bolt, lining up the dot with the ridge
on the key.
2. Rotate the lock bolt one half turn so that the dot moves back
to the top of the bolt. The bolt will then spring back to the
unlocked position.
To hold the right-hand door open, slide the door to the left and
use the hook located in the side of the left-hand door.
4.6 Final Checks
Before startup, complete the following steps:
1. Make sure that the unit is free of all wood or cardboard
shipping materials, both inside and outside.
2. Verify that the unit is connected to a dedicated circuit.
CAUTION! Connect the equipment to a separate,
dedicated, power source. Power fluctuations can
result in severe damage to the equipment.
5 Shelves and Drawer Slides
For safety in shipping, the shelves are packaged and secured
inside the cabinet. Insert the shelf support hangers (included with
the shelves) into the built-in pilasters (located on the inside walls
of the cabinet interior) at the desired locations. Position the
shelves on the flat supports (refer to Figure 2).
Note: The number of shelves supplied per cabinet varies
according to type of unit and size of cabinet.

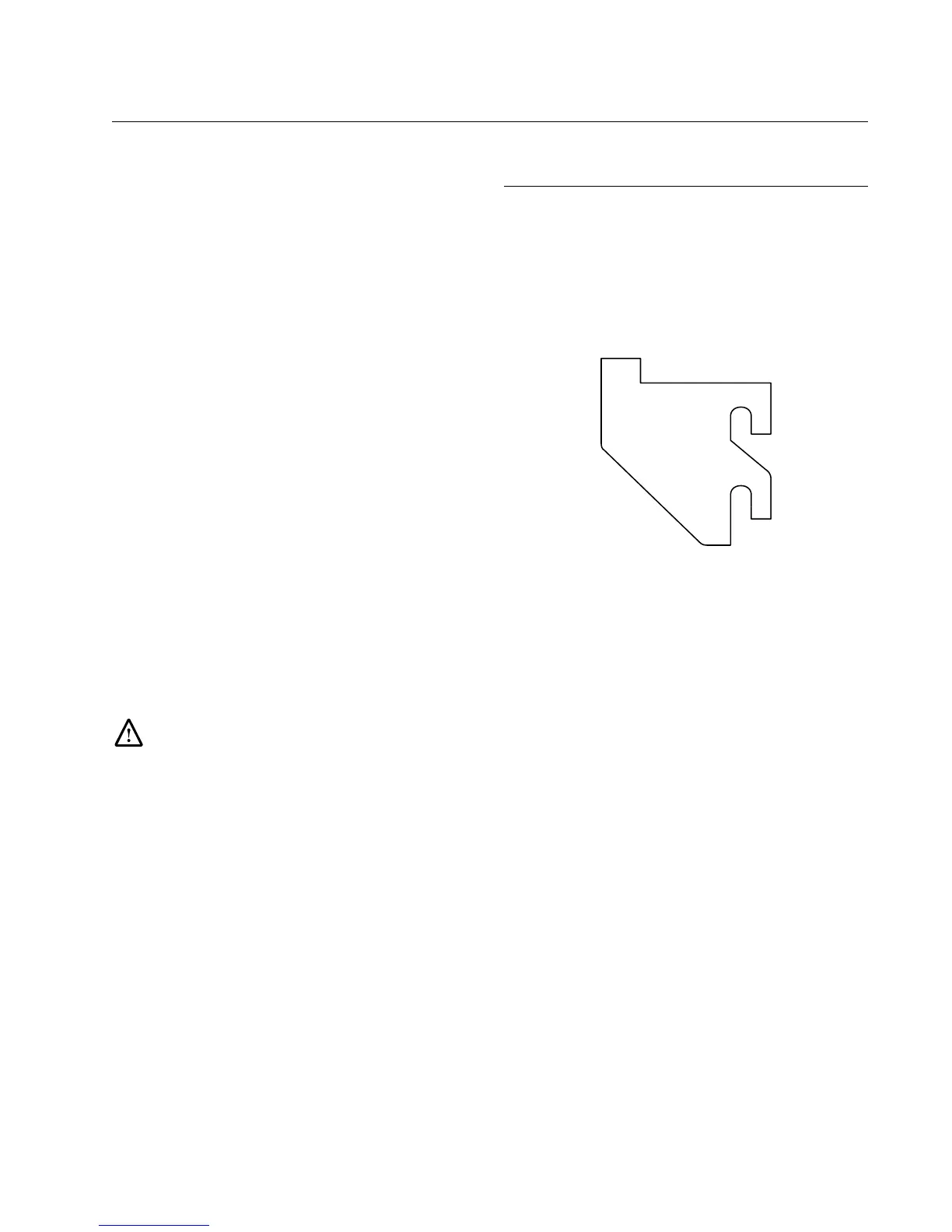

Figure 2. Shelf Support Hanger
Drawer slides (standard for pharmacy refrigerators) are similar
but have a small wire safety clip at the front pilaster which
prevents the slides from falling when the drawers are removed.
To change the position of the drawer slides, complete the
following steps:
1. Locate the safety clip.
2. Slip your fingernail or a small screwdriver under the bottom
of the wire clip and pry it out toward the inside of the
refrigerator.
3. Lift up the slide at front. The slide is free to move from the
front pilaster.
4. The drawer slide must be removed from the rear pilaster at
approximately a 45 degree angle toward the center of the
cabinet.
5. Pull the slide toward the front of the cabinet.
For more information on removing and reinstalling the drawers,
refer to Section 10 on page 9.
