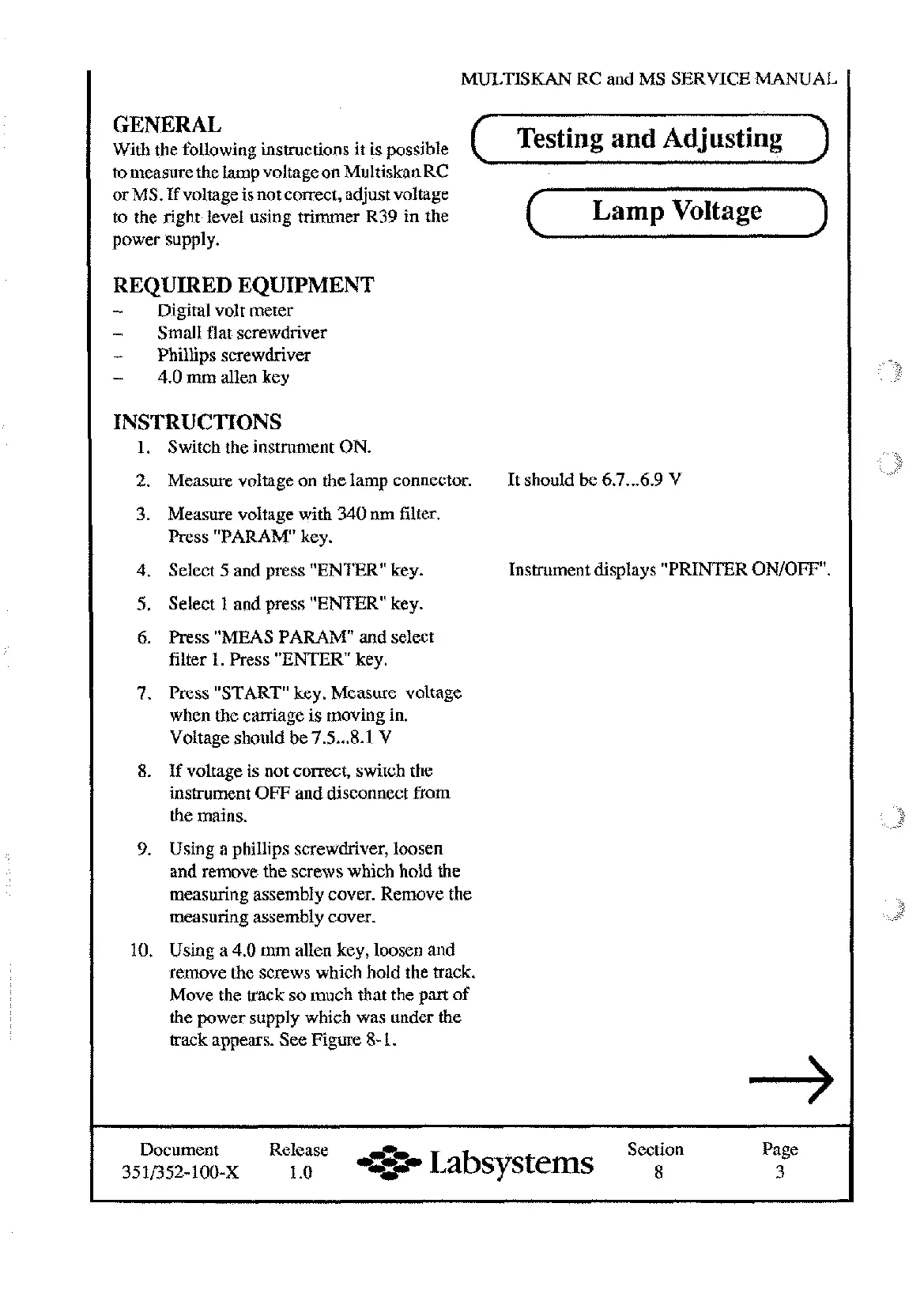

MULTISKAN RC
GENERAL
With the foilowing instructions
it
is possible
Testing and Adjusting
to measure the lamp voltage on Multiskan RC
or MS. If voltage is not correct, adjust voltage
to the right level using trimmer
R39
in the
power supply.
REQUIRED EQUIPMENT
-
Digital volt meter
-
Small flat screwdriver
-
Phillips screwdriver
-
4.0 mm allen key
INSTRUCTIONS
Switch the instrument ON.
Measure voltage on the lamp connector.
Measure voltage with 340 nm filter.
Press "PARAM key.
Select
5
and press "ENTER" key.
Select 1 and press "ENTER key.
Press "MEAS PARAM" and select
filter 1. Press "ENTER key.
Press "START" key. Measure voltage
when the caniage is moving in.
Voltage should be 7.5
...
8.1 V
If voltage is not correct, switch the
instrument OFF and disconnect from
the mains.
Using a phillips screwdriver, loosen
and remove the screws which hold the
measuring assembly cover. Remove the
measuring assembly cover.
Using a 4.0 mm allen key, loosen and
remove the screws which hold the track.
Move the track so much that the part of
the power supply which was under the
track appears. See Figure
8-
1.
Lamp Voltage
It should
be
6.7 ... 6.9
V
Instrument displays "PRINTER ONIOFF".
Document Release Section Page
351/352-100-x
1
.O
0%:-
Labsystems
8 3
