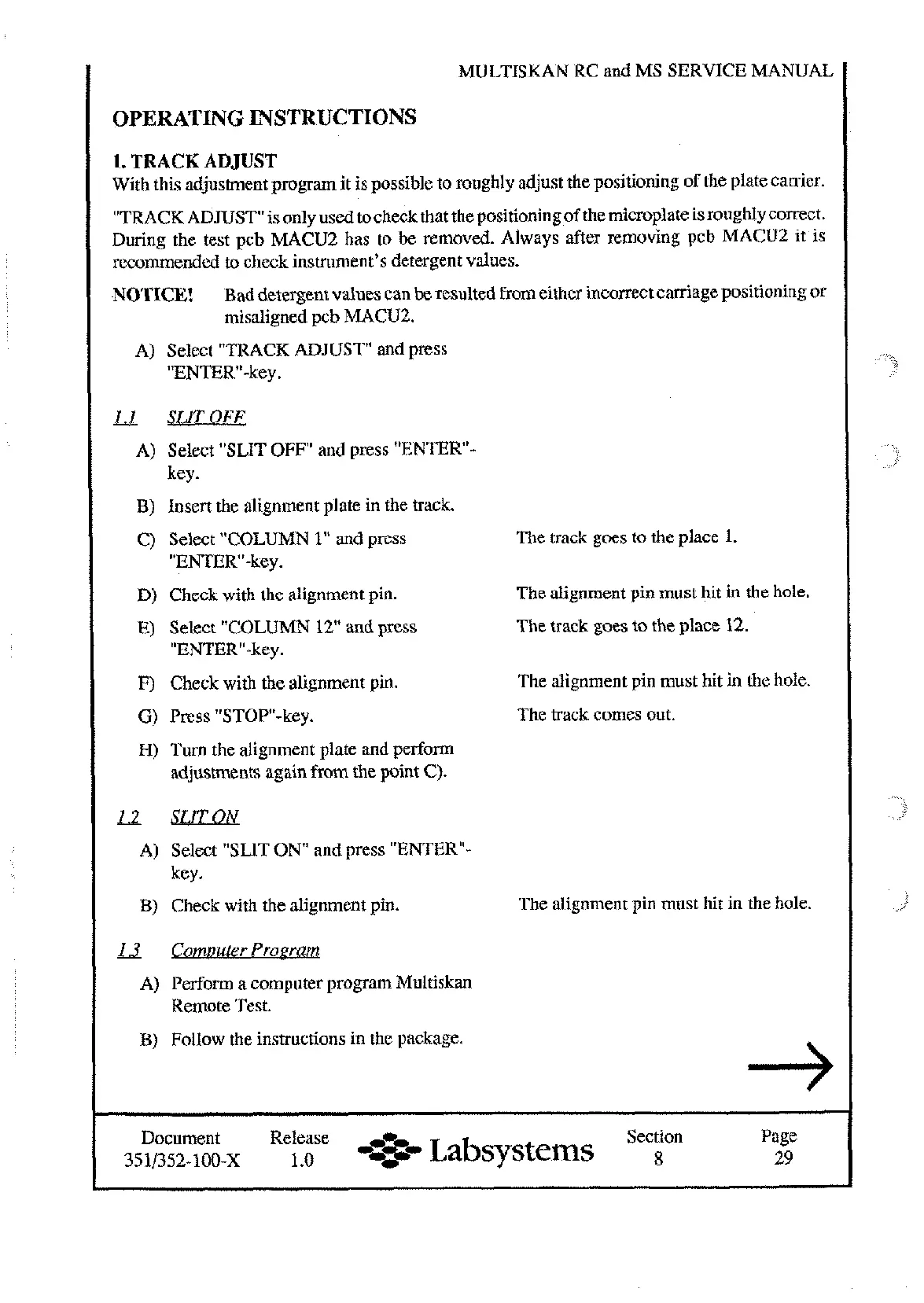

MULTISKAN RC and MS SERVICE MANUAL
OPERATING INSTRUCTIONS
1.
TRACK
ADJUST
With this adjustment program it
is
possible to roughly adjust the positioning of the plate carrier.
"TRACK ADJUST isonly used tocheck that thepositioningof themicroplate isroughly correct.
During the test pcb MACU2 has to be removed. Always after removing pcb MACU2 it
is
recommended to check instrument's detergent values.
NOTICE!
Bad detergent values can
be
resulted from either incorrect carriage positioning or
misaligned pcb MACU2.
A) Select "TRACK ADJUST and press
"ENTER-key.
LLsLmEE
A) Select "SLIT OFF" and press "ENTER-
key.
B) Insert the alignment plate in the track.
C) Select "COLUMN
1"
and press
"ENTER1'-key.
D) Check with the alignment pin.
E) Select "COLUMN
12"
and press
"ENTER"-key.
F)
Check with the alignment pin.
G)
Press "STOP-key.
H)
Turn the alignment plate and perform
adjustments again from the point C).
&&iLQM
A) Select "SLIT ON and press "ENTERu-
key.
B) Check with the alignment pin.
Comuuter Program
A) Perform a computer program Multiskan
Remote Test.
B) Follow the instructions in the package.
The track goes to the place
1.
The alignment pin must hit in the hole.
The track goes to the place 12.
The alignment pin must hit in the hole.
The track comes out.
The alignment pin must hit in the hole.
