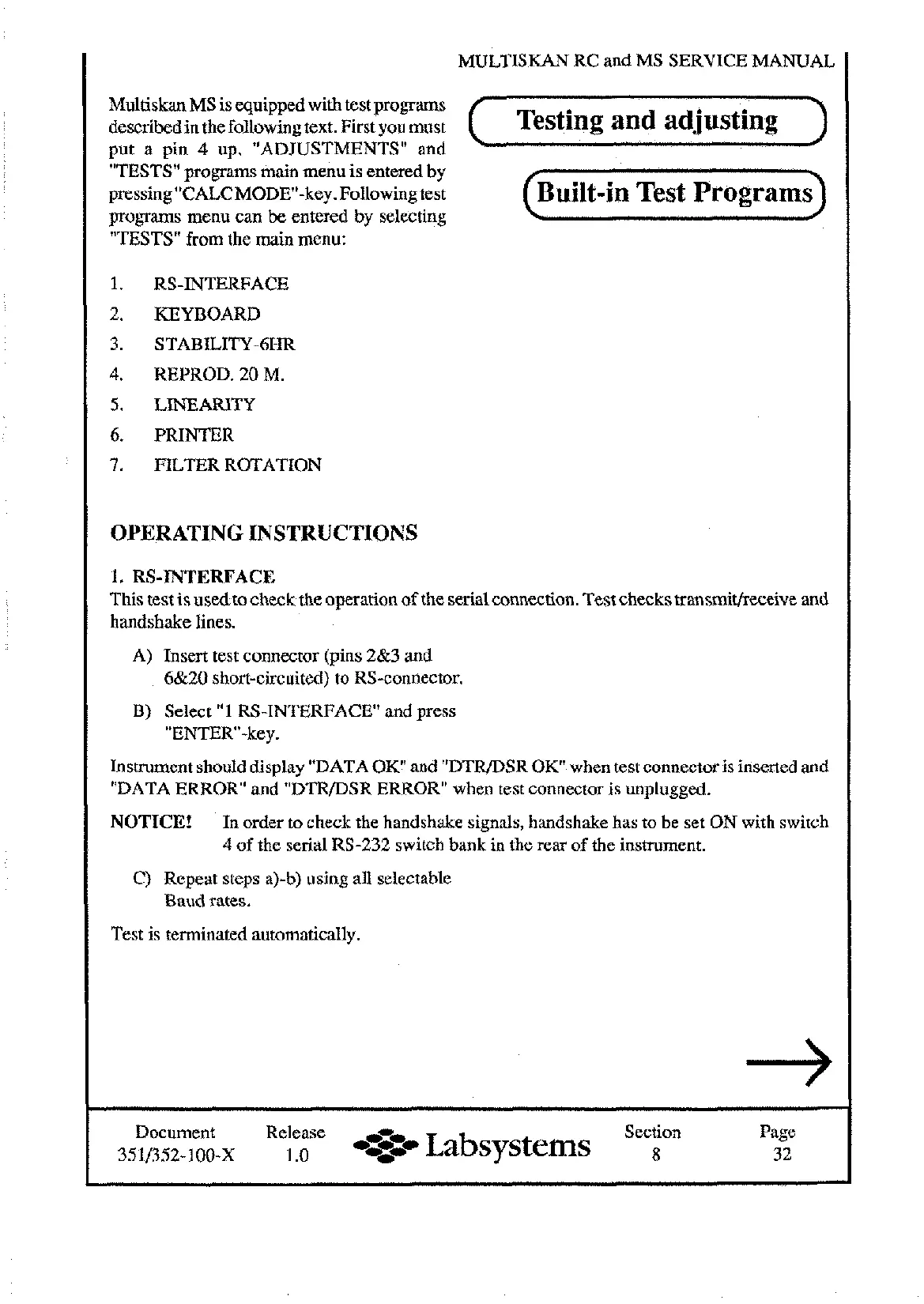

MULTISKAN RC and MS SERVICE
Multiskan MS is equipped with test programs
describedin the following text. First youmust
Testing and adjusting
put a pin
4
up. "ADJUSTMENTS" and
"TESTS" programs main menu is entered by
pressing TALCMODE-key. Following test
uilt-in Test Programs
programs menu can
be
entered by selecting
"TESTS" from the main menu:
1. RS-INTERFACE
2. KEYBOARD
3. STABILITY-6HR
4.
REPROD. 20 M.
5. LINEARITY
6. PRINTER
7.
FILTER ROTATION
OPERATING INSTRUCTIONS
1.
RS-INTERFACE
This test is used to check the o~eration of the serial connection. Test checks transmitheceive and
handshake lines.
A) Insert test connector (pins 2&3 and
6&20 short-circuited) to RS-connector.
B)
Select
"1
RS-INTERFACE and press
"ENTER-key.
Instrument should display "DATA OK and "DTRfDSR OK when test connector is inserted and
"DATA ERROR and "DTRfDSR ERROR" when test connector is unplugged.
NOTICE!
In order to check the handshake signals, handshake has to
be
set
ON
with switch
4
of the serial RS-232 switch bank in the rear of the instrument.
C) Repeat steps a)-b) using all selectable
Baud rates.
Test is terminated automatically.
Document Release
,%
Section Page
3511352-loo-x 1
.o
--pC,
Labsystems
8
32
