IL-Power
Oy
4N
3269
page
7/17

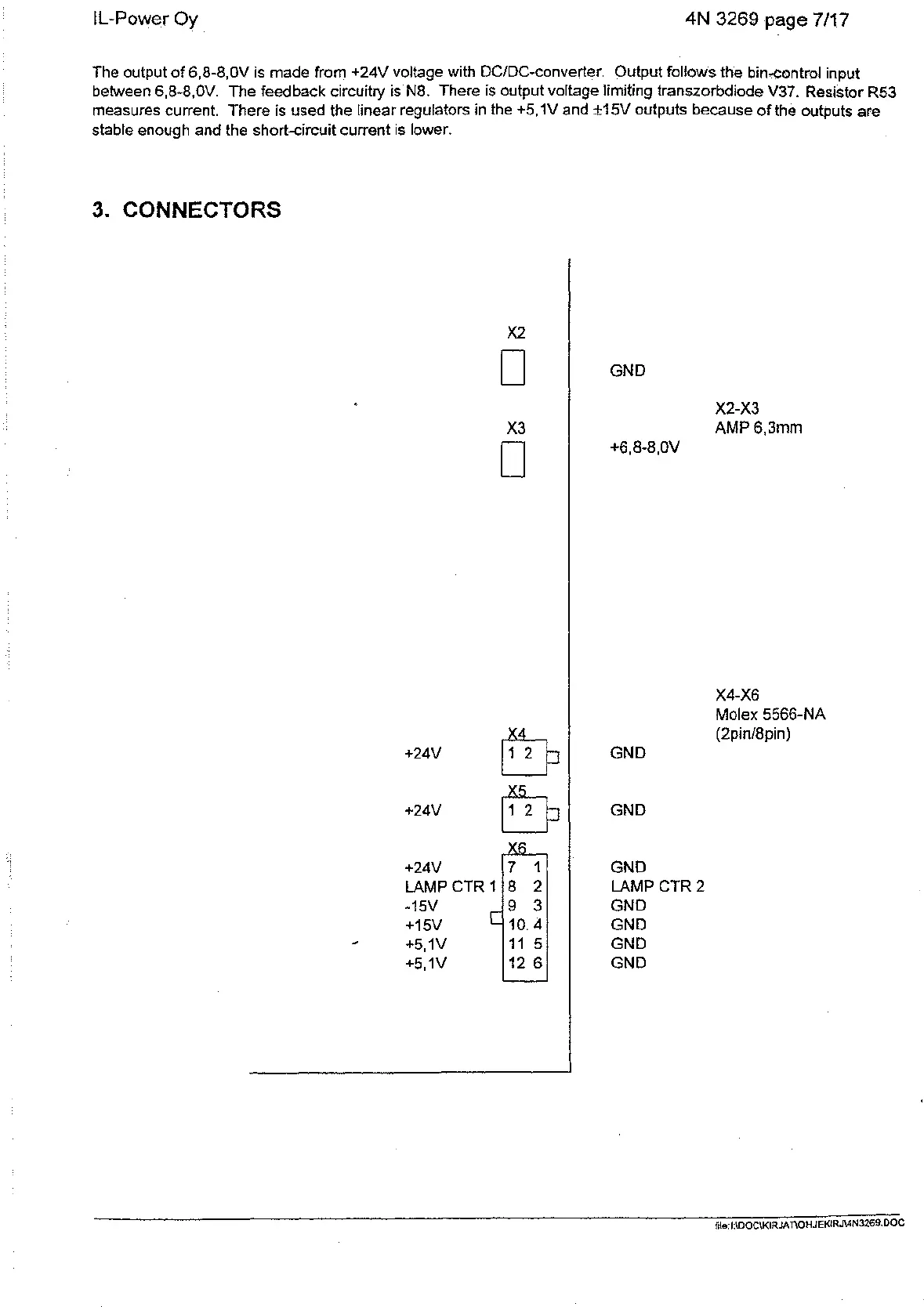

The output of 6,8-8,OV is made from +24V voltage with DCIDC-converter. Output follows the bin-control input
between 6,8-8,OV. The feedback circuitry
is
N8. There is output voltage limiting transzorbdiode V37. Resistor R53
measures current. There is used the linear regulators in the +5,1V and +15V outputs because of the outputs are
stable enough and the short-circuit current is lower.
3.
CONNECTORS
GND
X2-x3
AMP
6,3mm
+6,8-8,OV
X4-X6
Molex 5566-NA
(2pint8pin)
GND
GND
GND
LAMP
CTR
2
GND
GND
GND
GND
