1.
Lamp
2.
Chopper
3.
Filter
4.
fin
5.
Filter wheel slot
6.
NAPSU2
(keyboard) circuit bowd
7.
LSD
display circuit board

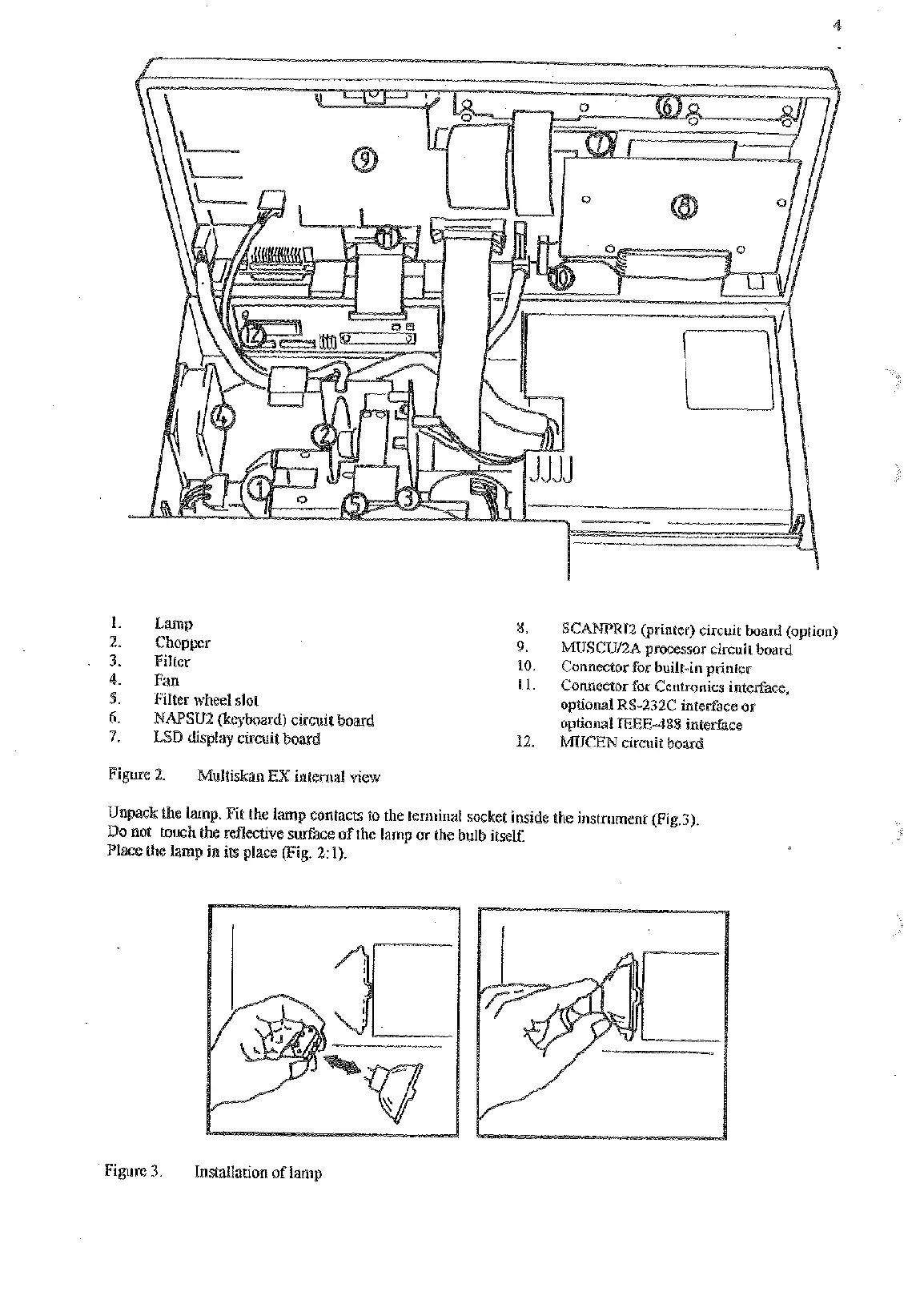

Figure
2.
Multiskan
EX
internal view
8.
SCAWR12
(printer) circuit board (option)
9.
MUSCUIZA processor circuit board
10.
Connector for built-in printer
1
I.
Connector for Centronics interface,
232C
interface or
aplional
EEE-488
interface
12.
MUCEN
circuit bard
Unpack the lamp. Fit the lamp contacts to
the
terminal socket inside the instrument (Fig.3).
Do
not touch
the
reflective surface
of
the lamp or the
bulb
itself.
Place
the
lamp in its place
(Fig.
2:
1).
Figure
3.
installation
of lamp
