ThermoFLUX EcoLogic 25 - Connections and Checks

19

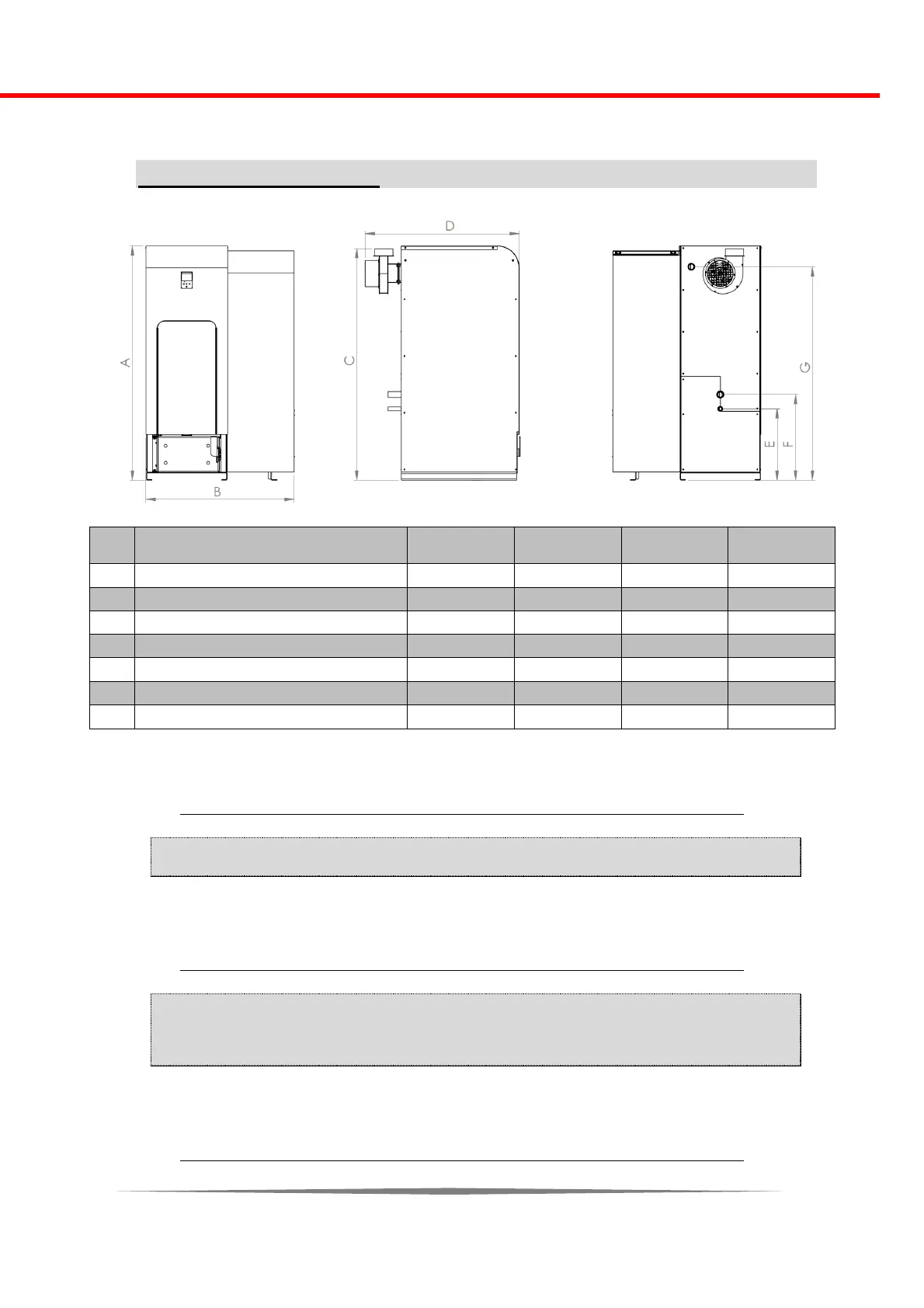

Boiler dimensions
EcoLogic
25
EcoLogic
35
EcoLogic
44
EcoLogic
55
A
Height
1270
1460
1460
1650
B
Width
1050
1050
1050
1050
C
Height of the flue outlet
1250
1440
1440
1630
D
Depth
1100
1100
1100
1100
E
Drain outlet
505
505
505
505
F
Return connection height
603
603
603
603
G
Output connection heght
1125
1315
1315
1505
Switch off main power supply
Be sure to turn off the main power before any work!
Check mechanical connections
• Check that all components are properly connected.
• Check that all mechanical components are securely attached.
