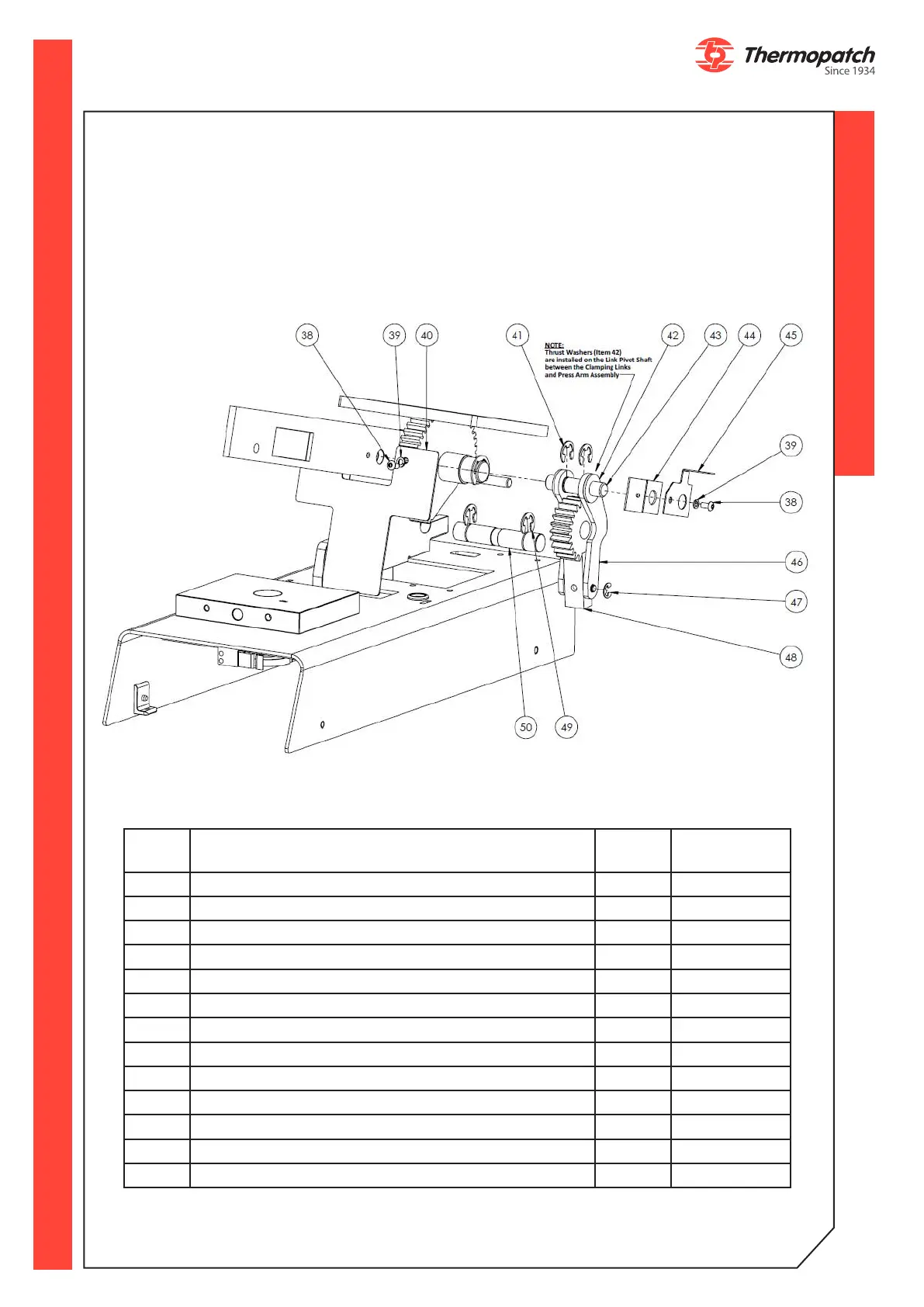

Press arm assembly
ITEM
#
DESCRIPTION QTY Part Number
38 #8-32unc x 3/8” Button Head Socket Screw 1 21029-48
39 #8 Spring Lockwasher 1 21021-06-C
40 Close Out Cover 1 46363
41 E Style ½” Diameter Retaining Ring 2 21025-26
42 Thrust Washer OD= 1”, ID= 0.5” 2 21022-13
43 Link Arm Pivot Shaft 1 46328
44 Close Out Cover Bracket 1 46364
45 Switch Actuator 1 46334
46 Clamping Link Arm 2 46307
47 E Style ¼ ” Diameter Retaining Ring 1 D-9702
48 24 Tooth Gear Assembly 1 46493
49 E Style 5/8” Diameter Retaining Ring 2 21025-28
50 24 Tooth Gear Pivot Shaft 1 46492
