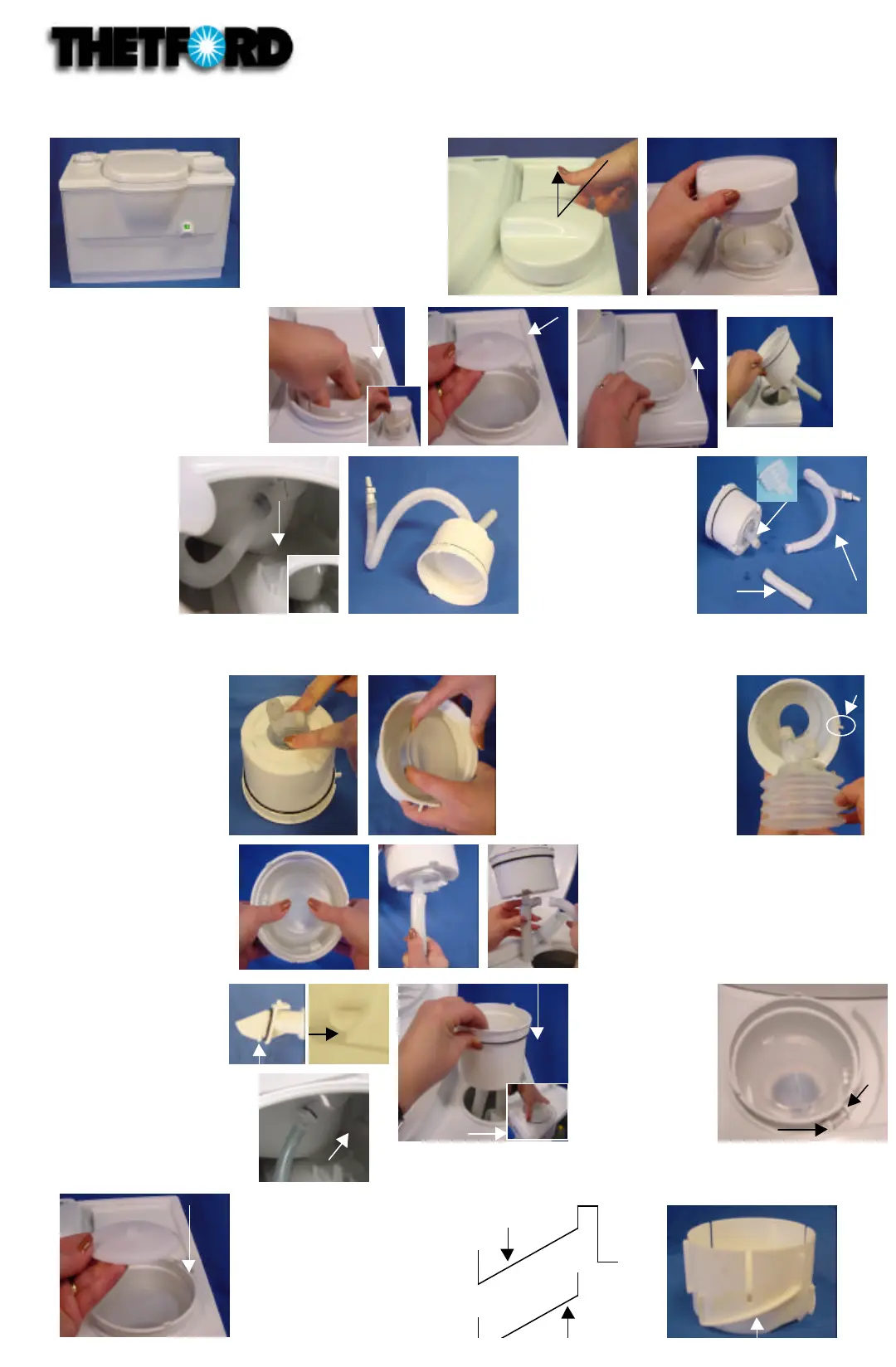

Pump, Inlet tube, Flush tube & Bellow Replacement
A.
Lift the flush cap (1)
up with your finger.
B.
Push cylinder (2) down
and turn it to the left to
take it out. After this,
the bellow cap (3) and
housing (4) can be taken
out.
2.
3.
1.
C.
4.
Inside view,
nozzle (5) has
to be taken out.
Can be pulled
down.
5.
D.
6.
7.
Bring nozzle back
into the hole and
press it up (you will
hear a click).Note :
Rib on nozzle has to go
through the hole, to the
inside of the toilet bowl.
Push housing
in by hand
Turn the lug (1)
on the housing,
against the lug (2)
on the actual
Cassette toilet.
1.
2.
Inlet tube (6),
Flush tube (7) or
Bellow (8) can now
be replaced
6.
8.
7.
Note : Inlet tube and Flush tube can easily be replaced by pulling of the part and press the new part on.
For replacing the Bellow see following instructions.
Bellow is fitted
into the housing
with PTI (kind of
kit). Depress bellow
firmly loose (1) and
pull it out (2).
When placing the new
bellow, hold the parts
in position as on the
photo. Lug on the housing
has to be on the right side.
Lug
Press the bellow
into the housing and,
assemble inlet tube and
flush tube.
Cylinder can only
be pressed in one
way (single rib has
to face the backside
of the toilet).
2 x double rib
E.
Rib
Rib inside
Toilet bowl
11
Early C2
