THINKSCAN Max

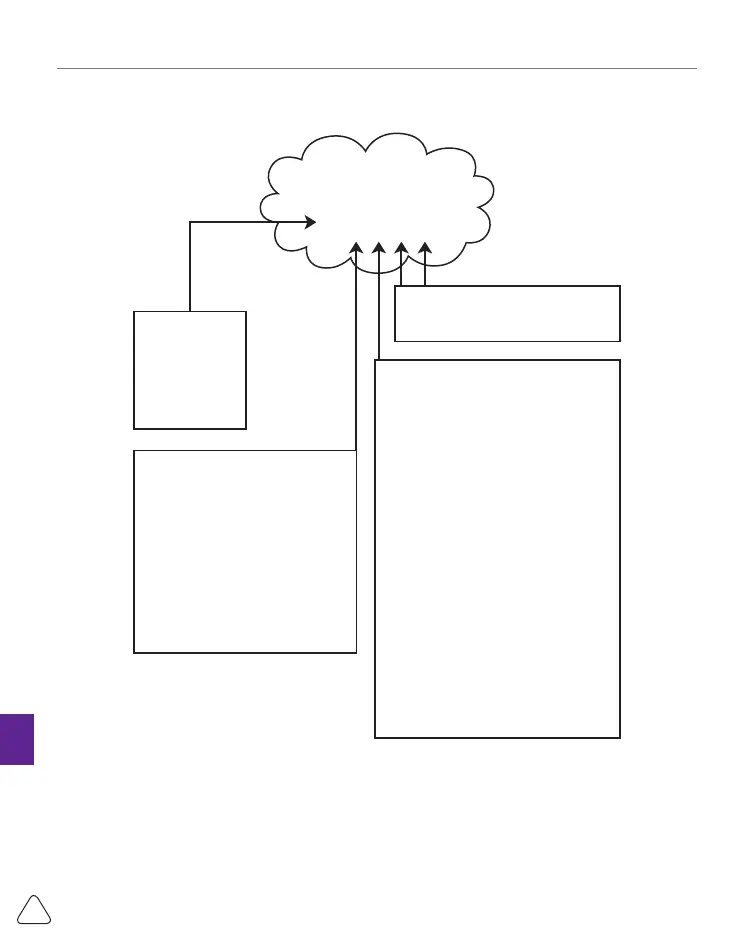

DTC Example
P0201
Systems
P=Powertrai
B=Body
C=Chassis
U=Network
ldentifies what section of the
system is malfunctioning
Code Type
0 - Generic(SAE)
1 - Manufacturer Specifi c
2 - Generic ('P”Codes) and
Manufacturer
Specifi c ("B”,“C”and
“U”Codes)
3 - Includes both Generic
and Manufacturer
Specifi c Codes
Sub-systems
Identifies the system where the
problem is located.“P”Code systems
are listed below.“B”,“C”and“U”Code
system will vary.
0 - Fuel and air metering; Auxiliary
emlssion controls
1 - Fuel and air metering
2 - Fuel and air metering (injector
circuit malfunction only)
3 - Ignition system or misfi re
4 - Auxiliary emission control system
5 - Vehicle speed control and idl
control system
6 - Computer output circuits
7 - Transmission
8 - Transmission
9 - Transmission
A - Hybrid Propulsion
B - Hybrid Propulsion
C - Hybrid Propulsion
2.3 Localização do Data Link Connector (DLC)
O DLC (Data Link Connector ou Diagnostic Link Connector) é tipicamente um conector de
16 pinos em que os leitores de código de diagnóstico fazem interface com o computador
de bordo do veículo. O DLC geralmente está localizado a 30 cm do centro do painel
de instrumentos (painel), embaixo ou ao redor do lado do motorista para a maioria dos
veículos. Se o Data Link Connector não estiver localizado no painel, deve haver uma
