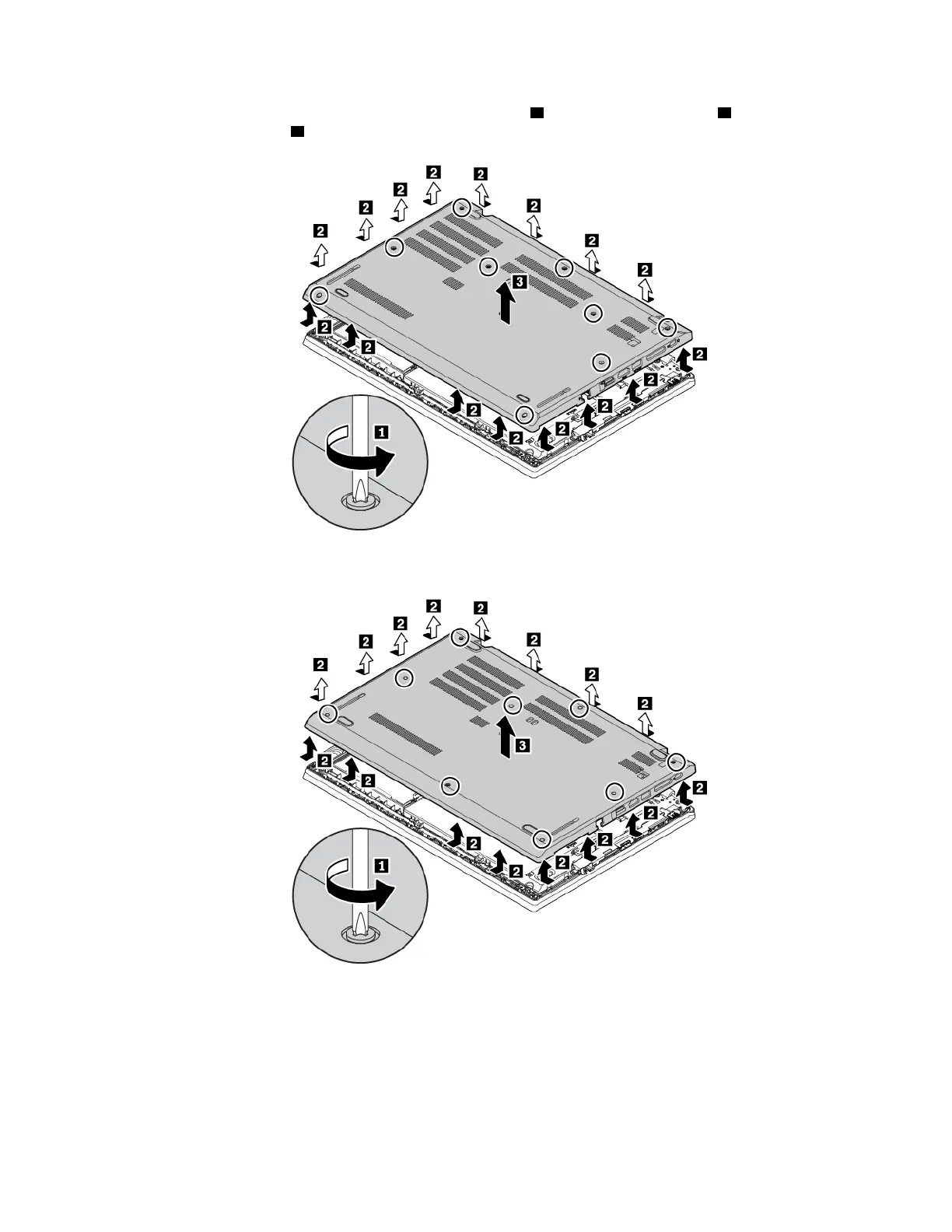

4. Loosen the screws that secure the base cover assembly 1 . Then Pry up the latches 2 and remove the
base cover assembly
3 .
Figure 4. Removing the base cover assembly for ThinkPad L480 computers
Figure 5. Removing the base cover assembly for ThinkPad L580 computers
Chapter 9. Replacing devices 103
