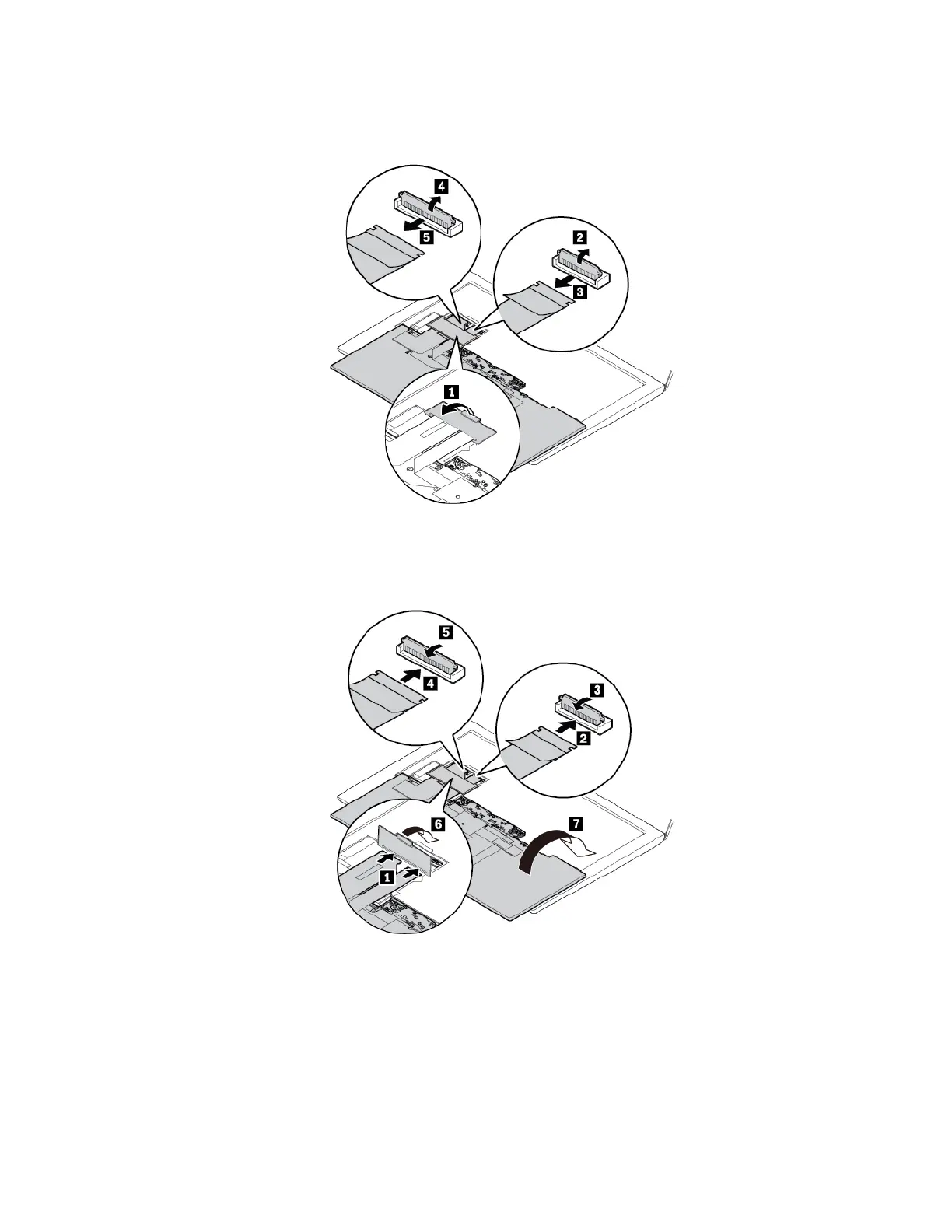

9. Put the keyboard on the palm rest as shown. Open the plastic shield and detach the connectors. Then
remove the keyboard.
Installing the keyboard
1. Route the keyboard cable through the plastic shield and attach the connectors as shown. Then close the
plastic shield and turn the keyboard over.
Chapter 9. Replacing devices 125
