7. Installation

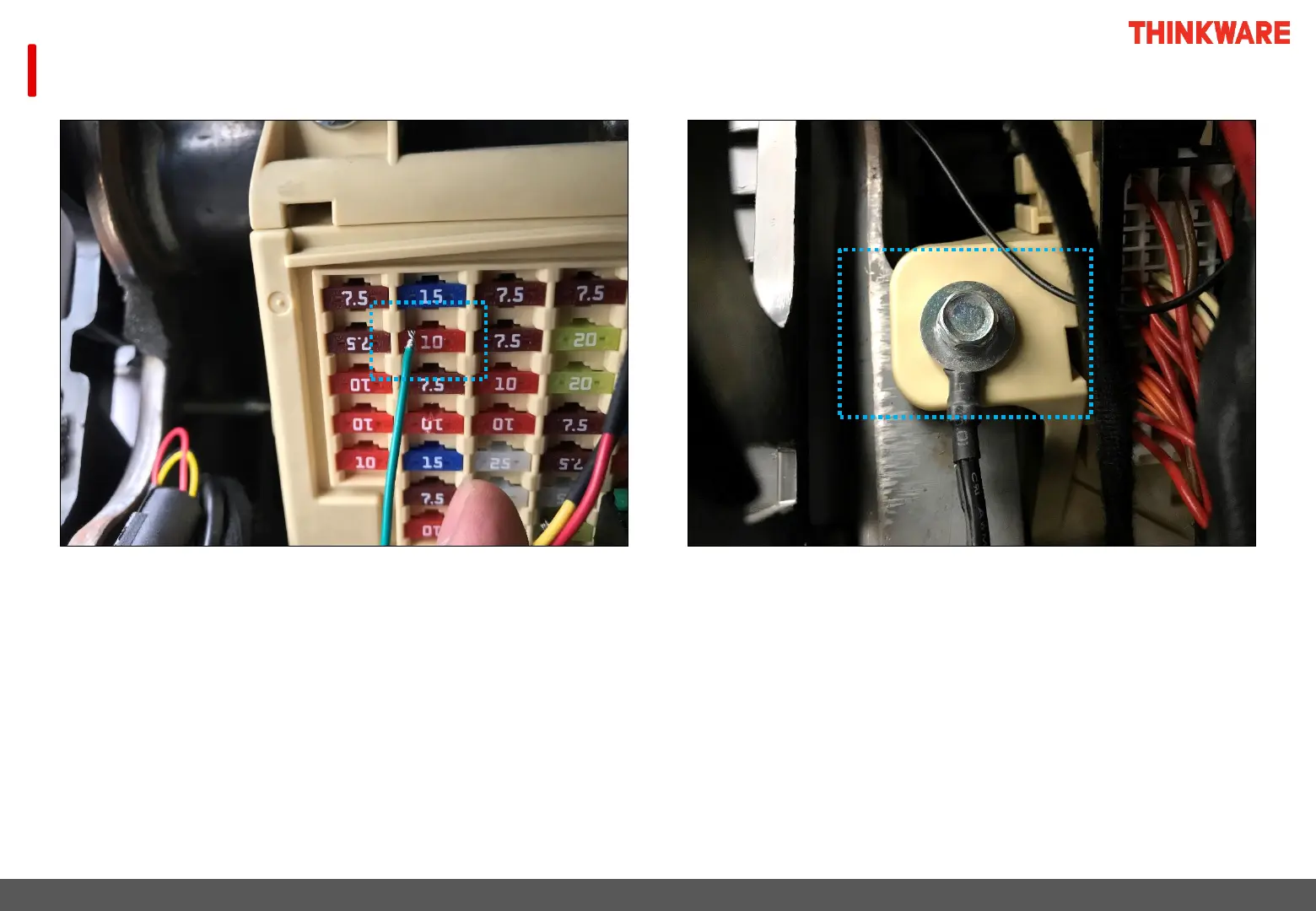

• Connecting ACC IN wires
① Take out the ACC or the IG2 power fuse from the fuse slot
② Check the power output direction of the fuse slot and
connect the ACC IN wire to the power output terminal of the fuse
③ Re-connect the separated fuse
• Connecting ground (GND) wires
④ Check the bolt fastened on the vehicle chassis and
loosen it
⑤ Firmly connect the ground terminal of the charging
cable to the bolt and fasten the bolt
* An additional ACC IN wire is not connected in the BAB-50 model.
