Thinkware BAB-100 - Wiring Diagram for BAB-100 Fuse Box Installation

Customer Quality Management
© 2018 THINKWARE. All rights reserved. 7

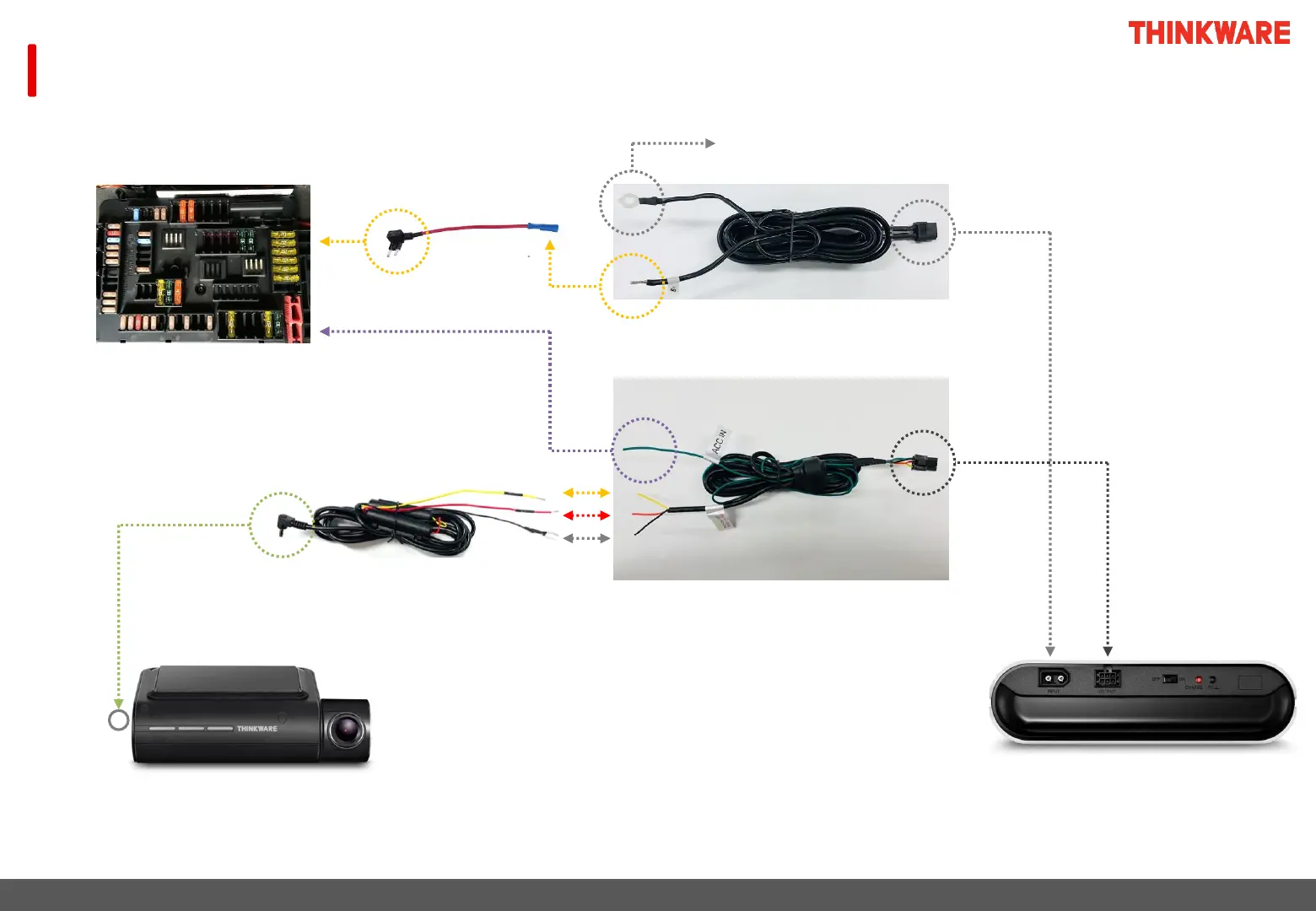

5. Wiring Diagram for Installation – BAB-100 (Connecting to the Fuse Box)
BAB-100 Main Unit
Fuse Holder
B+ Power Input
ACC Power Signal Input
Ground to Chassis (GND)
Charging Cable (Power Input)
Output Cable
ACC IN
Dash Cam
Constant Power Cable
DC-IN
B+
ACC
GND
Interior Fuse Box
* BAB-100 model uses B+ power fuse of 20A or higher when the charging cable is connected.
