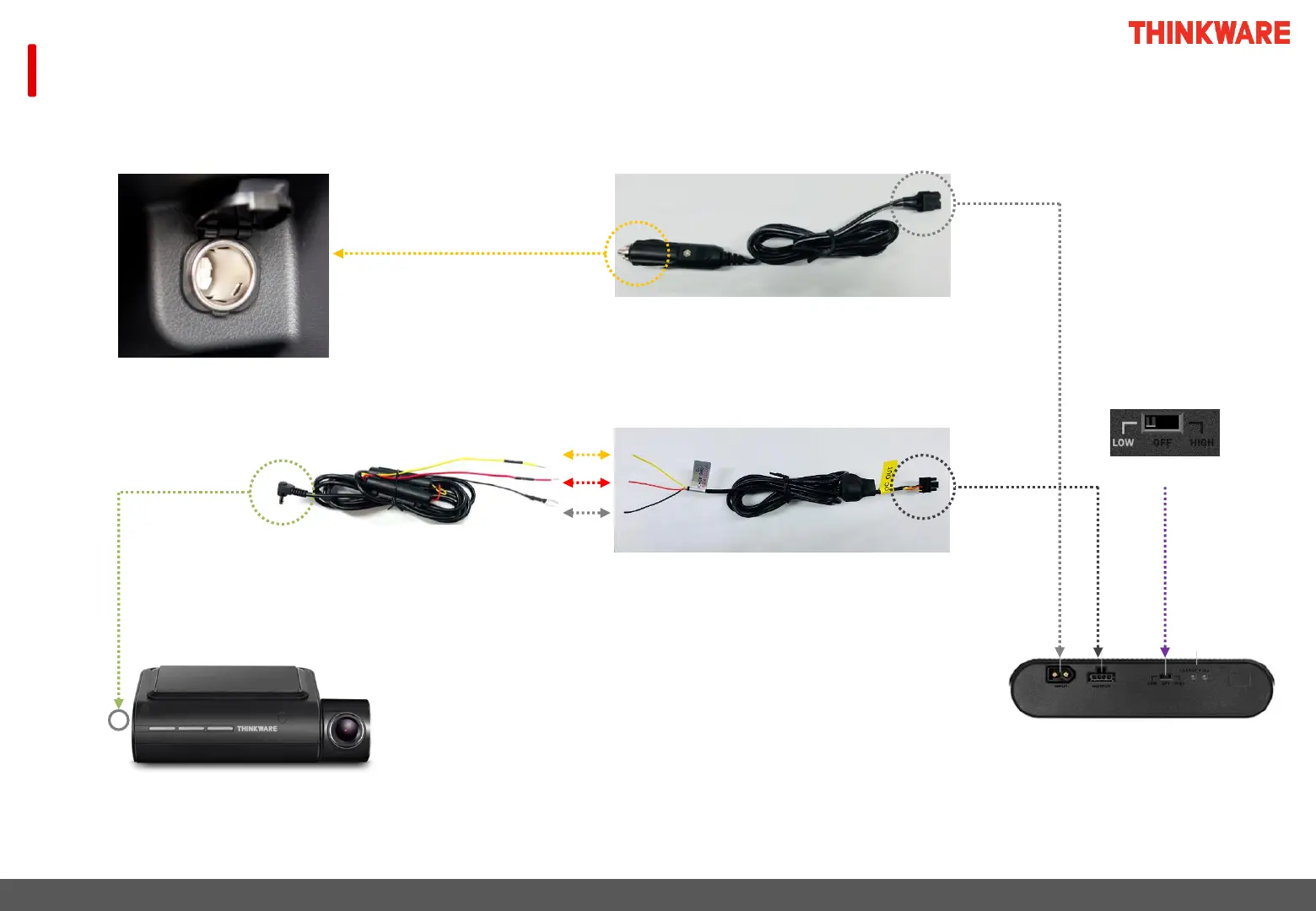

4. Wiring Diagram for Installation – BAB-50 (Connecting to the Cigar Jack)
BAB-50 Main Unit
Dash Cam
Constant Power Cable
* Do not connect the 12V cigar jack power port which uses battery power (B+) to the port.
** You cannot connect the BAB-100 model directly to the 12V cigar jack power port of the vehicle.
12V Cigar Jack Power Port
(ACC Power)
B+
ACC
GND
ACC Power
Input
Cigar Jack Charging Cable
Output Cable
Switch LOW
(5A) Setting
DC-IN
